180 degree arc
Contents
180 degree arc#

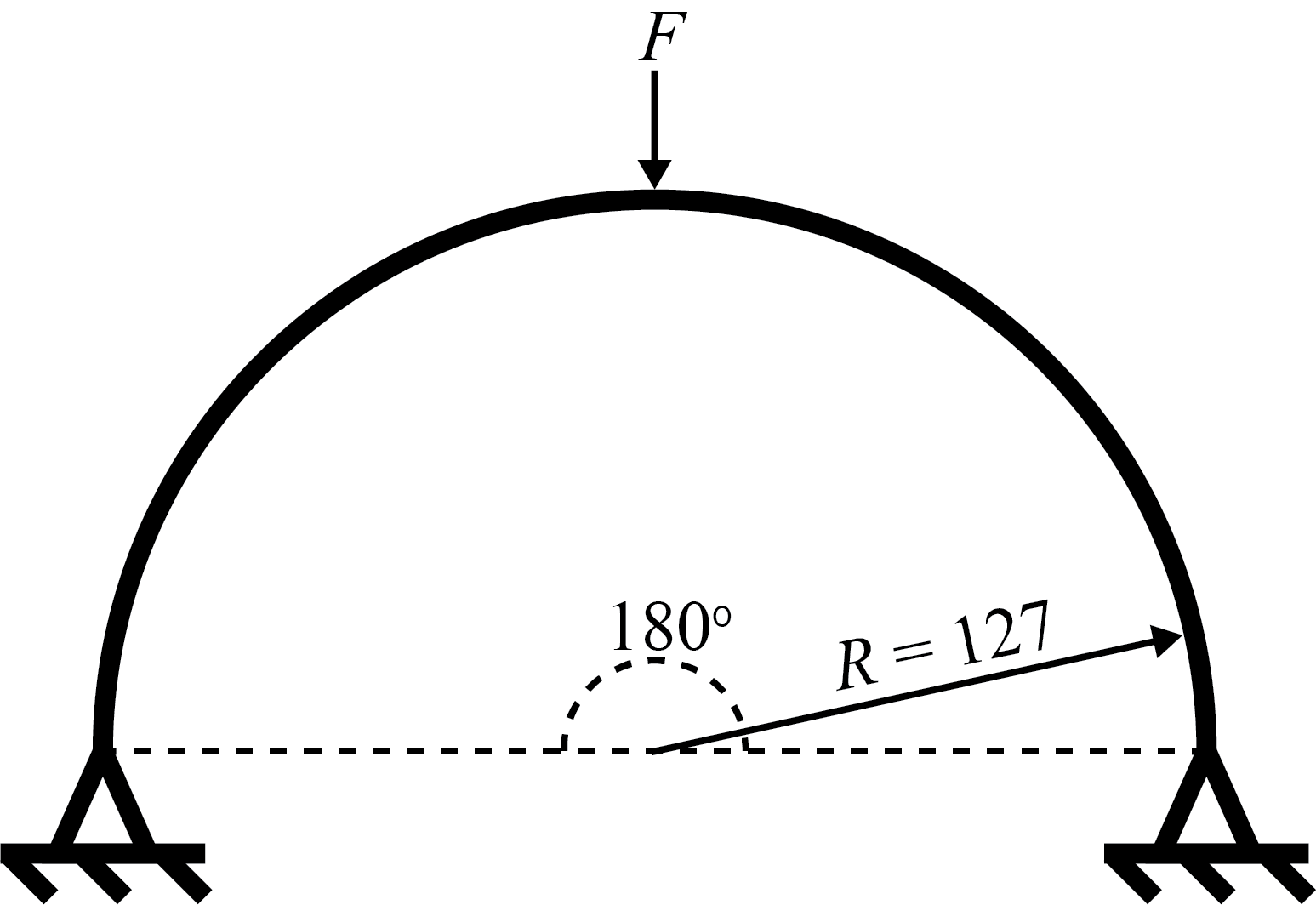

The problem provided in this example is a \(180^\circ\) arch with pinned-pinned boundary conditions subjected to a point load at the center of the arch. The arch is modeled with 2D geometrically exact beams (i.e. Simo-Reissner Beams). For more information on beams see here.
1%matplotlib inline
2from dolfin import *
3import numpy as np
4import matplotlib.pyplot as plt
5import os
6from arc_length.force_control_solver import force_control # import force control formulation of arc-length solver
7# Dealing with ufl legacy
8try:
9 from ufl import diag, Jacobian, shape
10except:
11 from ufl_legacy import diag, Jacobian, shape
12
13parameters["form_compiler"]["cpp_optimize"] = True
14parameters["form_compiler"]["quadrature_degree"] = 1
15
16parameters['reorder_dofs_serial'] = False
17
18ffc_options = {"optimize": True, \
19 "eliminate_zeros": True, \
20 "precompute_basis_const": True, \
21 "precompute_ip_const": True}
Import Mesh and define function spaces#
In the case of 2D beams we also define the rotation matrix about the \(z\) axis and directional derivative with respect to the beam centerline.
1mesh_180 = Mesh()
2with XDMFFile('mesh/180_arch.xdmf') as infile:
3 infile.read(mesh_180)
4
5
6Ue = VectorElement("CG", mesh_180.ufl_cell(), 1, dim=2) # displacement
7Te = FiniteElement("CG", mesh_180.ufl_cell(), 1) # rotation
8V = FunctionSpace(mesh_180, MixedElement([Ue, Te]))
9
10v_ = TestFunction(V)
11u_, theta_ = split(v_)
12dv = TrialFunction(V)
13v = Function(V, name="Generalized displacement")
14u, theta = split(v)
15
16VR = TensorFunctionSpace(mesh_180, "DG", 0, shape=(2, 2))
17
18V0 = FunctionSpace(mesh_180, "DG", 0)
19
20
21Vu = V.sub(0).collapse()
22disp = Function(Vu)
23
24Jac = Jacobian(mesh_180)
25gdim = mesh_180.geometry().dim()
26Jac = as_vector([Jac[i, 0] for i in range(gdim)])
27g01 = Jac/sqrt(dot(Jac, Jac))
28g02 = as_vector([-g01[1],g01[0]])
29
30r01 = outer(g01,as_vector([1,0]))
31r02 = outer(g02, as_vector([0,1]))
32
33R0 = r01+r02
34
35#-----------------------Define Functions for beams-----------------------------------#
36def tgrad(u): # directional derivative w.r.t. beam centerline
37 return dot(grad(u), g01)
38
39def rotation_matrix(theta): # 2D rotation matrix -- there is no need to do rotation parametrization for 2D beams
40 return as_tensor([[cos(theta), -sin(theta)],[sin(theta), cos(theta)]])
41Rot = rotation_matrix(theta)
Define Dirichlet Boundary Conditions#
1r = 127.0
2arch = 180
3
4left_theta =180+(90-(360-arch)/2)
5right_theta = -(90-(360-arch)/2)
6
7def x_coord(r,theta):
8 return r*np.cos(np.deg2rad(theta))
9
10def y_coord(r,theta):
11 return r*np.sin(np.deg2rad(theta))
12
13x_coord_left = x_coord(r,left_theta)
14y_coord_left = y_coord(r,left_theta)
15x_coord_right = x_coord(r,right_theta)
16y_coord_right = y_coord(r,right_theta)
1def pinned_left(x, on_boundary):
2 return near(x[0], x_coord_left, 1e-6)
3
4def pinned_right(x, on_boundary):
5 return near(x[0], x_coord_right, 1e-6)
6
7def load_center(x, on_boundary):
8 return near(x[0], 0, 1e-6)
9
10# Mark Integration Boundary
11facets = MeshFunction("size_t", mesh_180, 0)
12facets.set_all(0)
13AutoSubDomain(load_center).mark(facets,1)
14
15Pinned_1 = DirichletBC(V.sub(0), Constant((0.0, 0.0)), pinned_left, method='pointwise') # displacement
16Pinned_2 = DirichletBC(V.sub(0), Constant((0.0, 0.0)), pinned_right, method='pointwise') # displacement
17bcs = [Pinned_1, Pinned_2]
Kinematics and Weak Form#
1# Kinematics: This is "total" beam formulation
2defo = dot(R0.T,dot(Rot.T, g01 + tgrad(u)) - g01)
3curv = tgrad(theta)
1# Geometrical properties
2S = 64.52 # cross-sectional area
3I = 41.62 # Area moment
4E = 1378.0 # Elastic modulus
5nu = 0.5 # Poisson's Ratio
6
7G = E/(2*(1+nu)) # Shear Modulus
8kappa = 1.0 # Shear correction
9
10
11
12# Stiffness moduli
13ES = E*S
14GS = G*kappa*S
15EI = E*I
1# Constitutive Equations
2C_N = diag(as_vector([ES, GS]))
3
4# Applied Load:
5F_max = Constant((0.0,-1.0))
6M_max = Constant(0.0)
7load = Expression("t", t=0, degree = 0)
8
9dS = Measure("dS", domain=mesh_180, subdomain_data=facets)
10dx = Measure("dx", domain=mesh_180)
11
12elastic_energy = 0.5 * (dot(defo, dot(C_N, defo)) + (EI*curv**2))*dx
13
14F_int = derivative(elastic_energy, v, v_)
15F_ext = avg(load * (-M_max*theta_ + dot(F_max, u_))) * dS(1) # avg function is used to integrate over discontinuous interior facets
16residual = F_int - F_ext
17tangent_form = derivative(residual, v, dv)
Solver#
To use our solver we first have to define the type of solver (i.e. displacement control or force control) and solver parameters before using the solver. Note that the correct type of solver has to first be imported (see first cell).
Solver parameters#
Here the parameters for both types of solvers:
psi: the scalar arc-length parameter. When psi = 1, the method becomes the spherical arc-length method and when psi = 0 the method becomes the cylindrical arc-length method
abs_tol(optional) : absolute residual tolerance for the linear solver (default value: 1e-10)
rel_tol(optional) : relative residual tolerance for solver; the relative residual is defined as the ration between the current residual and initial residual (default value: DOLFIN_EPS)
lmbda0: the initial load parameter
max_iter: maximum number of iterations for the linear solver
solver(optional): type of linear solver for the FEniCS linear solve function – default FEniCS linear solver is used if no argument is used.
Aside from these solver parameters, the arguments need to solve the FEA problem must also be passed into the solver:
u: the solution function
F_int: First variation of strain energy (internal nodal forces)
F_ext: Externally applied load (external applied force)
J: The Jacobian of the residual with respect to the deformation (tangential stiffness matrix)
load_factor: The incremental load factor
The solver can be called by:
solver = force_control(psi,abs_tol,rel_tol,lmbda0,max_iter,u,F_int,F_ext,bcs,J,load_factor,solver)
Using the solver#
Initialize the solver by calling solver.initialize()
Iteratively call solver.solve() until desired stopping condition
1# Solver Parameters
2psi = 1.0
3abs_tol = 1.0e-6
4lmbda0 = 10.0
5max_iter = 10
6solver = 'mumps'
7
8# Set up arc-length solver
9solver = force_control(psi=psi, abs_tol=abs_tol, lmbda0=lmbda0, max_iter=max_iter, u=v,
10 F_int=F_int, F_ext=F_ext, bcs=bcs, J=tangent_form, load_factor=load, solver=solver)
1disp = [v.vector()[:]]
2lmbda = [0]
3
4for ii in range(390):
5 solver.solve()
6 ii+=1
7 if solver.converged: # We only want to save the solution step if the solver coverges
8 disp.append(v.vector()[:])
9 lmbda.append(load.t)
Initializing solver parameters...
Starting initial Force Control with Newton Method:
Iteration 0: |
Absolute Residual: 1.0000e+01| Relative Residual: 1.0000e+00
Iteration 1: |
Absolute Residual: 5.2760e+02| Relative Residual: 5.2760e+01
Iteration 2: |
Absolute Residual: 1.0307e+01| Relative Residual: 1.0307e+00
Iteration 3: |
Absolute Residual: 1.3798e+01| Relative Residual: 1.3798e+00
Iteration 4: |
Absolute Residual: 3.9173e-02| Relative Residual: 3.9173e-03
Iteration 5: |
Absolute Residual: 4.1215e-04| Relative Residual: 4.1215e-05
Iteration 6: |
Absolute Residual: 1.2501e-10| Relative Residual: 1.2501e-11
Arc-Length Step 1 :
Iteration: 0
|Total Norm: 1.2501e-10 |Residual: 1.2501e-10 |A: -2.2737e-13| Relative Norm : 1.0000e+00
Arc-Length Step 2 :
Iteration: 0
|Total Norm: 1.9269e+03 |Residual: 1.9269e+03 |A: -2.2737e-13| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 8.5730e+01 |Residual: 4.3240e+01 |A: 7.4026e+01| Relative Norm : 4.4492e-02
Iteration: 2
|Total Norm: 9.7379e+00 |Residual: 4.6625e+00 |A: 8.5492e+00| Relative Norm : 5.0537e-03
Iteration: 3
|Total Norm: 3.4693e-02 |Residual: 2.8920e-02 |A: 1.9164e-02| Relative Norm : 1.8005e-05
Iteration: 4
|Total Norm: 1.2232e-05 |Residual: 1.1426e-05 |A: 4.3665e-06| Relative Norm : 6.3483e-09
Iteration: 5
|Total Norm: 1.1954e-10 |Residual: 1.1954e-10 |A: -2.2737e-13| Relative Norm : 6.2039e-14
Arc-Length Step 3 :
Iteration: 0
|Total Norm: 1.6858e+03 |Residual: 1.6858e+03 |A: 0.0000e+00| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 7.0491e+01 |Residual: 3.6520e+01 |A: 6.0294e+01| Relative Norm : 4.1814e-02
Iteration: 2
|Total Norm: 1.7125e+01 |Residual: 3.3051e+00 |A: 1.6803e+01| Relative Norm : 1.0158e-02
Iteration: 3
|Total Norm: 6.6087e-02 |Residual: 2.9374e-02 |A: 5.9201e-02| Relative Norm : 3.9201e-05
Iteration: 4
|Total Norm: 7.3030e-06 |Residual: 6.7626e-06 |A: 2.7570e-06| Relative Norm : 4.3319e-09
Iteration: 5
|Total Norm: 1.7241e-10 |Residual: 1.7241e-10 |A: -2.2737e-13| Relative Norm : 1.0227e-13
Arc-Length Step 4 :
Iteration: 0
|Total Norm: 1.4647e+03 |Residual: 1.4647e+03 |A: -2.2737e-13| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 4.9156e+01 |Residual: 2.9535e+01 |A: 3.9294e+01| Relative Norm : 3.3561e-02
Iteration: 2
|Total Norm: 1.2906e+01 |Residual: 2.0968e+00 |A: 1.2735e+01| Relative Norm : 8.8116e-03
Iteration: 3
|Total Norm: 3.5956e-02 |Residual: 1.3053e-02 |A: 3.3502e-02| Relative Norm : 2.4548e-05
Iteration: 4
|Total Norm: 1.1278e-06 |Residual: 1.0177e-06 |A: 4.8594e-07| Relative Norm : 7.6999e-10
Iteration: 5
|Total Norm: 2.2654e-10 |Residual: 2.2654e-10 |A: -6.8212e-13| Relative Norm : 1.5467e-13
Arc-Length Step 5 :
Iteration: 0
|Total Norm: 1.2983e+03 |Residual: 1.2983e+03 |A: -1.3642e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 3.2163e+01 |Residual: 2.2052e+01 |A: 2.3414e+01| Relative Norm : 2.4774e-02
Iteration: 2
|Total Norm: 6.3911e+00 |Residual: 1.2589e+00 |A: 6.2659e+00| Relative Norm : 4.9228e-03
Iteration: 3
|Total Norm: 8.7885e-03 |Residual: 3.2690e-03 |A: 8.1579e-03| Relative Norm : 6.7694e-06
Iteration: 4
|Total Norm: 6.7541e-08 |Residual: 6.0654e-08 |A: 2.9713e-08| Relative Norm : 5.2024e-11
Arc-Length Step 6 :
Iteration: 0
|Total Norm: 1.1784e+03 |Residual: 1.1784e+03 |A: 2.9713e-08| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.1425e+01 |Residual: 1.5781e+01 |A: 1.4491e+01| Relative Norm : 1.8182e-02
Iteration: 2
|Total Norm: 2.3251e+00 |Residual: 7.2126e-01 |A: 2.2104e+00| Relative Norm : 1.9731e-03
Iteration: 3
|Total Norm: 1.2010e-03 |Residual: 6.1765e-04 |A: 1.0300e-03| Relative Norm : 1.0192e-06
Iteration: 4
|Total Norm: 1.3731e-09 |Residual: 1.1773e-09 |A: 7.0668e-10| Relative Norm : 1.1653e-12
Arc-Length Step 7 :
Iteration: 0
|Total Norm: 1.0915e+03 |Residual: 1.0915e+03 |A: 7.0736e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.5662e+01 |Residual: 1.1819e+01 |A: 1.0276e+01| Relative Norm : 1.4349e-02
Iteration: 2
|Total Norm: 7.1397e-01 |Residual: 4.8327e-01 |A: 5.2554e-01| Relative Norm : 6.5414e-04
Iteration: 3
|Total Norm: 1.6537e-04 |Residual: 1.4783e-04 |A: 7.4119e-05| Relative Norm : 1.5151e-07
Iteration: 4
|Total Norm: 4.3554e-10 |Residual: 4.0734e-10 |A: 1.5416e-10| Relative Norm : 3.9904e-13
Arc-Length Step 8 :
Iteration: 0
|Total Norm: 1.0265e+03 |Residual: 1.0265e+03 |A: 1.5439e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.3540e+01 |Residual: 1.0474e+01 |A: 8.5798e+00| Relative Norm : 1.3191e-02
Iteration: 2
|Total Norm: 4.9606e-01 |Residual: 4.5195e-01 |A: 2.0450e-01| Relative Norm : 4.8327e-04
Iteration: 3
|Total Norm: 3.5979e-04 |Residual: 3.2496e-04 |A: 1.5443e-04| Relative Norm : 3.5051e-07
Iteration: 4
|Total Norm: 1.8687e-09 |Residual: 1.6325e-09 |A: 9.0927e-10| Relative Norm : 1.8205e-12
Arc-Length Step 9 :
Iteration: 0
|Total Norm: 9.7527e+02 |Residual: 9.7527e+02 |A: 9.0927e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.3200e+01 |Residual: 1.0581e+01 |A: 7.8918e+00| Relative Norm : 1.3534e-02
Iteration: 2
|Total Norm: 6.4620e-01 |Residual: 5.2890e-01 |A: 3.7128e-01| Relative Norm : 6.6259e-04
Iteration: 3
|Total Norm: 1.3935e-03 |Residual: 1.2586e-03 |A: 5.9822e-04| Relative Norm : 1.4289e-06
Iteration: 4
|Total Norm: 2.0608e-08 |Residual: 1.8181e-08 |A: 9.7034e-09| Relative Norm : 2.1131e-11
Arc-Length Step 10 :
Iteration: 0
|Total Norm: 9.3217e+02 |Residual: 9.3217e+02 |A: 9.7039e-09| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.2734e+01 |Residual: 1.0449e+01 |A: 7.2784e+00| Relative Norm : 1.3660e-02
Iteration: 2
|Total Norm: 8.5488e-01 |Residual: 7.0679e-01 |A: 4.8089e-01| Relative Norm : 9.1708e-04
Iteration: 3
|Total Norm: 2.9857e-03 |Residual: 2.7259e-03 |A: 1.2182e-03| Relative Norm : 3.2030e-06
Iteration: 4
|Total Norm: 9.6028e-08 |Residual: 8.6421e-08 |A: 4.1866e-08| Relative Norm : 1.0302e-10
Arc-Length Step 11 :
Iteration: 0
|Total Norm: 8.9351e+02 |Residual: 8.9351e+02 |A: 4.1866e-08| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.1713e+01 |Residual: 9.8143e+00 |A: 6.3939e+00| Relative Norm : 1.3109e-02
Iteration: 2
|Total Norm: 8.7412e-01 |Residual: 7.6953e-01 |A: 4.1464e-01| Relative Norm : 9.7831e-04
Iteration: 3
|Total Norm: 3.2976e-03 |Residual: 3.0146e-03 |A: 1.3365e-03| Relative Norm : 3.6906e-06
Iteration: 4
|Total Norm: 1.2128e-07 |Residual: 1.0995e-07 |A: 5.1178e-08| Relative Norm : 1.3574e-10
Arc-Length Step 12 :
Iteration: 0
|Total Norm: 8.5734e+02 |Residual: 8.5734e+02 |A: 5.1178e-08| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.1508e+01 |Residual: 1.0209e+01 |A: 5.3118e+00| Relative Norm : 1.3423e-02
Iteration: 2
|Total Norm: 6.8672e-01 |Residual: 6.2048e-01 |A: 2.9426e-01| Relative Norm : 8.0099e-04
Iteration: 3
|Total Norm: 1.9852e-03 |Residual: 1.8051e-03 |A: 8.2632e-04| Relative Norm : 2.3156e-06
Iteration: 4
|Total Norm: 4.3960e-08 |Residual: 3.9909e-08 |A: 1.8432e-08| Relative Norm : 5.1275e-11
Arc-Length Step 13 :
Iteration: 0
|Total Norm: 8.2319e+02 |Residual: 8.2319e+02 |A: 1.8432e-08| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.3053e+01 |Residual: 1.2359e+01 |A: 4.2010e+00| Relative Norm : 1.5857e-02
Iteration: 2
|Total Norm: 4.2217e-01 |Residual: 3.7937e-01 |A: 1.8523e-01| Relative Norm : 5.1285e-04
Iteration: 3
|Total Norm: 6.9977e-04 |Residual: 6.3174e-04 |A: 3.0097e-04| Relative Norm : 8.5007e-07
Iteration: 4
|Total Norm: 5.1947e-09 |Residual: 4.7094e-09 |A: 2.1923e-09| Relative Norm : 6.3104e-12
Arc-Length Step 14 :
Iteration: 0
|Total Norm: 7.9161e+02 |Residual: 7.9161e+02 |A: 2.1917e-09| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.5242e+01 |Residual: 1.4899e+01 |A: 3.2117e+00| Relative Norm : 1.9254e-02
Iteration: 2
|Total Norm: 2.1624e-01 |Residual: 1.9782e-01 |A: 8.7331e-02| Relative Norm : 2.7316e-04
Iteration: 3
|Total Norm: 1.4542e-04 |Residual: 1.3235e-04 |A: 6.0264e-05| Relative Norm : 1.8370e-07
Iteration: 4
|Total Norm: 5.6208e-10 |Residual: 5.5460e-10 |A: 9.1404e-11| Relative Norm : 7.1005e-13
Arc-Length Step 15 :
Iteration: 0
|Total Norm: 7.6361e+02 |Residual: 7.6361e+02 |A: 9.0495e-11| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.6896e+01 |Residual: 1.6713e+01 |A: 2.4749e+00| Relative Norm : 2.2126e-02
Iteration: 2
|Total Norm: 1.6235e-01 |Residual: 1.6040e-01 |A: 2.5109e-02| Relative Norm : 2.1261e-04
Iteration: 3
|Total Norm: 1.8503e-05 |Residual: 1.8077e-05 |A: 3.9479e-06| Relative Norm : 2.4231e-08
Iteration: 4
|Total Norm: 4.6035e-10 |Residual: 4.6035e-10 |A: 6.8212e-13| Relative Norm : 6.0285e-13
Arc-Length Step 16 :
Iteration: 0
|Total Norm: 7.4011e+02 |Residual: 7.4011e+02 |A: 1.5916e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.7660e+01 |Residual: 1.7540e+01 |A: 2.0552e+00| Relative Norm : 2.3861e-02
Iteration: 2
|Total Norm: 2.0196e-01 |Residual: 2.0013e-01 |A: 2.7121e-02| Relative Norm : 2.7288e-04
Iteration: 3
|Total Norm: 3.6751e-05 |Residual: 3.5802e-05 |A: 8.2950e-06| Relative Norm : 4.9655e-08
Iteration: 4
|Total Norm: 6.5361e-10 |Residual: 6.5360e-10 |A: 4.5475e-12| Relative Norm : 8.8313e-13
Arc-Length Step 17 :
Iteration: 0
|Total Norm: 7.2156e+02 |Residual: 7.2156e+02 |A: 6.8212e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.7638e+01 |Residual: 1.7533e+01 |A: 1.9264e+00| Relative Norm : 2.4445e-02
Iteration: 2
|Total Norm: 2.5292e-01 |Residual: 2.3722e-01 |A: 8.7713e-02| Relative Norm : 3.5051e-04
Iteration: 3
|Total Norm: 6.7236e-05 |Residual: 6.2836e-05 |A: 2.3925e-05| Relative Norm : 9.3182e-08
Iteration: 4
|Total Norm: 7.1933e-10 |Residual: 7.1915e-10 |A: 1.6371e-11| Relative Norm : 9.9691e-13
Arc-Length Step 18 :
Iteration: 0
|Total Norm: 7.0782e+02 |Residual: 7.0782e+02 |A: 1.7280e-11| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.7067e+01 |Residual: 1.6948e+01 |A: 2.0078e+00| Relative Norm : 2.4112e-02
Iteration: 2
|Total Norm: 3.1534e-01 |Residual: 2.6165e-01 |A: 1.7601e-01| Relative Norm : 4.4551e-04
Iteration: 3
|Total Norm: 9.4028e-05 |Residual: 8.4946e-05 |A: 4.0315e-05| Relative Norm : 1.3284e-07
Iteration: 4
|Total Norm: 9.4295e-10 |Residual: 9.4223e-10 |A: 3.6835e-11| Relative Norm : 1.3322e-12
Arc-Length Step 19 :
Iteration: 0
|Total Norm: 6.9828e+02 |Residual: 6.9828e+02 |A: 3.6380e-11| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.6169e+01 |Residual: 1.6017e+01 |A: 2.2109e+00| Relative Norm : 2.3156e-02
Iteration: 2
|Total Norm: 3.8081e-01 |Residual: 2.7690e-01 |A: 2.6143e-01| Relative Norm : 5.4536e-04
Iteration: 3
|Total Norm: 1.1553e-04 |Residual: 1.0135e-04 |A: 5.5453e-05| Relative Norm : 1.6545e-07
Iteration: 4
|Total Norm: 7.8998e-10 |Residual: 7.8769e-10 |A: 6.0027e-11| Relative Norm : 1.1313e-12
Arc-Length Step 20 :
Iteration: 0
|Total Norm: 6.9211e+02 |Residual: 6.9211e+02 |A: 6.0709e-11| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.5120e+01 |Residual: 1.4918e+01 |A: 2.4671e+00| Relative Norm : 2.1847e-02
Iteration: 2
|Total Norm: 4.3477e-01 |Residual: 2.8631e-01 |A: 3.2719e-01| Relative Norm : 6.2819e-04
Iteration: 3
|Total Norm: 1.3134e-04 |Residual: 1.1267e-04 |A: 6.7481e-05| Relative Norm : 1.8976e-07
Iteration: 4
|Total Norm: 1.0096e-09 |Residual: 1.0060e-09 |A: 8.5038e-11| Relative Norm : 1.4587e-12
Arc-Length Step 21 :
Iteration: 0
|Total Norm: 6.8843e+02 |Residual: 6.8843e+02 |A: 8.3901e-11| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.4046e+01 |Residual: 1.3778e+01 |A: 2.7330e+00| Relative Norm : 2.0403e-02
Iteration: 2
|Total Norm: 4.7139e-01 |Residual: 2.9158e-01 |A: 3.7039e-01| Relative Norm : 6.8473e-04
Iteration: 3
|Total Norm: 1.4134e-04 |Residual: 1.1960e-04 |A: 7.5328e-05| Relative Norm : 2.0531e-07
Iteration: 4
|Total Norm: 8.9888e-10 |Residual: 8.9228e-10 |A: 1.0868e-10| Relative Norm : 1.3057e-12
Arc-Length Step 22 :
Iteration: 0
|Total Norm: 6.8652e+02 |Residual: 6.8652e+02 |A: 1.0868e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.3039e+01 |Residual: 1.2693e+01 |A: 2.9862e+00| Relative Norm : 1.8993e-02
Iteration: 2
|Total Norm: 4.9303e-01 |Residual: 2.9311e-01 |A: 3.9644e-01| Relative Norm : 7.1816e-04
Iteration: 3
|Total Norm: 1.4636e-04 |Residual: 1.2292e-04 |A: 7.9442e-05| Relative Norm : 2.1319e-07
Iteration: 4
|Total Norm: 1.2360e-09 |Residual: 1.2293e-09 |A: 1.2824e-10| Relative Norm : 1.8004e-12
Arc-Length Step 23 :
Iteration: 0
|Total Norm: 6.8585e+02 |Residual: 6.8585e+02 |A: 1.2847e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.2168e+01 |Residual: 1.1734e+01 |A: 3.2186e+00| Relative Norm : 1.7741e-02
Iteration: 2
|Total Norm: 5.0580e-01 |Residual: 2.9052e-01 |A: 4.1404e-01| Relative Norm : 7.3748e-04
Iteration: 3
|Total Norm: 1.4778e-04 |Residual: 1.2343e-04 |A: 8.1272e-05| Relative Norm : 2.1547e-07
Iteration: 4
|Total Norm: 9.9770e-10 |Residual: 9.8730e-10 |A: 1.4370e-10| Relative Norm : 1.4547e-12
Arc-Length Step 24 :
Iteration: 0
|Total Norm: 6.8612e+02 |Residual: 6.8612e+02 |A: 1.4256e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.1485e+01 |Residual: 1.0961e+01 |A: 3.4311e+00| Relative Norm : 1.6739e-02
Iteration: 2
|Total Norm: 5.1708e-01 |Residual: 2.8319e-01 |A: 4.3264e-01| Relative Norm : 7.5362e-04
Iteration: 3
|Total Norm: 1.4718e-04 |Residual: 1.2180e-04 |A: 8.2622e-05| Relative Norm : 2.1451e-07
Iteration: 4
|Total Norm: 1.2956e-09 |Residual: 1.2867e-09 |A: 1.5143e-10| Relative Norm : 1.8882e-12
Arc-Length Step 25 :
Iteration: 0
|Total Norm: 6.8724e+02 |Residual: 6.8724e+02 |A: 1.5302e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.1037e+01 |Residual: 1.0423e+01 |A: 3.6309e+00| Relative Norm : 1.6060e-02
Iteration: 2
|Total Norm: 5.3591e-01 |Residual: 2.7079e-01 |A: 4.6246e-01| Relative Norm : 7.7980e-04
Iteration: 3
|Total Norm: 1.4632e-04 |Residual: 1.1866e-04 |A: 8.5613e-05| Relative Norm : 2.1292e-07
Iteration: 4
|Total Norm: 9.1060e-10 |Residual: 8.9808e-10 |A: 1.5052e-10| Relative Norm : 1.3250e-12
Arc-Length Step 26 :
Iteration: 0
|Total Norm: 6.8926e+02 |Residual: 6.8926e+02 |A: 1.5166e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.0867e+01 |Residual: 1.0169e+01 |A: 3.8322e+00| Relative Norm : 1.5766e-02
Iteration: 2
|Total Norm: 5.7610e-01 |Residual: 2.5395e-01 |A: 5.1711e-01| Relative Norm : 8.3583e-04
Iteration: 3
|Total Norm: 1.4826e-04 |Residual: 1.1501e-04 |A: 9.3570e-05| Relative Norm : 2.1510e-07
Iteration: 4
|Total Norm: 8.4088e-10 |Residual: 8.2906e-10 |A: 1.4052e-10| Relative Norm : 1.2200e-12
Arc-Length Step 27 :
Iteration: 0
|Total Norm: 6.9241e+02 |Residual: 6.9241e+02 |A: 1.4052e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.1022e+01 |Residual: 1.0248e+01 |A: 4.0588e+00| Relative Norm : 1.5919e-02
Iteration: 2
|Total Norm: 6.6230e-01 |Residual: 2.3492e-01 |A: 6.1924e-01| Relative Norm : 9.5653e-04
Iteration: 3
|Total Norm: 1.6034e-04 |Residual: 1.1296e-04 |A: 1.1379e-04| Relative Norm : 2.3157e-07
Iteration: 4
|Total Norm: 9.5416e-10 |Residual: 9.4604e-10 |A: 1.2415e-10| Relative Norm : 1.3780e-12
Arc-Length Step 28 :
Iteration: 0
|Total Norm: 6.9703e+02 |Residual: 6.9703e+02 |A: 1.2506e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.1572e+01 |Residual: 1.0721e+01 |A: 4.3542e+00| Relative Norm : 1.6601e-02
Iteration: 2
|Total Norm: 8.4074e-01 |Residual: 2.1771e-01 |A: 8.1207e-01| Relative Norm : 1.2062e-03
Iteration: 3
|Total Norm: 2.0347e-04 |Residual: 1.1750e-04 |A: 1.6611e-04| Relative Norm : 2.9191e-07
Iteration: 4
|Total Norm: 7.9513e-10 |Residual: 7.8745e-10 |A: 1.1028e-10| Relative Norm : 1.1407e-12
Arc-Length Step 29 :
Iteration: 0
|Total Norm: 7.0359e+02 |Residual: 7.0359e+02 |A: 1.0982e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.2621e+01 |Residual: 1.1672e+01 |A: 4.8014e+00| Relative Norm : 1.7938e-02
Iteration: 2
|Total Norm: 1.2021e+00 |Residual: 2.0988e-01 |A: 1.1836e+00| Relative Norm : 1.7085e-03
Iteration: 3
|Total Norm: 3.4323e-04 |Residual: 1.4132e-04 |A: 3.1279e-04| Relative Norm : 4.8783e-07
Iteration: 4
|Total Norm: 1.0352e-09 |Residual: 1.0283e-09 |A: 1.1983e-10| Relative Norm : 1.4714e-12
Arc-Length Step 30 :
Iteration: 0
|Total Norm: 7.1271e+02 |Residual: 7.1271e+02 |A: 1.2028e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.4355e+01 |Residual: 1.3230e+01 |A: 5.5707e+00| Relative Norm : 2.0141e-02
Iteration: 2
|Total Norm: 1.9379e+00 |Residual: 2.5257e-01 |A: 1.9213e+00| Relative Norm : 2.7190e-03
Iteration: 3
|Total Norm: 8.0701e-04 |Residual: 2.2638e-04 |A: 7.7461e-04| Relative Norm : 1.1323e-06
Iteration: 4
|Total Norm: 1.1596e-09 |Residual: 1.1321e-09 |A: 2.5102e-10| Relative Norm : 1.6270e-12
Arc-Length Step 31 :
Iteration: 0
|Total Norm: 7.2515e+02 |Residual: 7.2515e+02 |A: 2.5102e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.7117e+01 |Residual: 1.5605e+01 |A: 7.0344e+00| Relative Norm : 2.3605e-02
Iteration: 2
|Total Norm: 3.4799e+00 |Residual: 5.0376e-01 |A: 3.4432e+00| Relative Norm : 4.7988e-03
Iteration: 3
|Total Norm: 2.4954e-03 |Residual: 5.5265e-04 |A: 2.4335e-03| Relative Norm : 3.4413e-06
Iteration: 4
|Total Norm: 2.1924e-09 |Residual: 1.6272e-09 |A: 1.4693e-09| Relative Norm : 3.0234e-12
Arc-Length Step 32 :
Iteration: 0
|Total Norm: 7.4189e+02 |Residual: 7.4189e+02 |A: 1.4691e-09| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.1653e+01 |Residual: 1.9168e+01 |A: 1.0072e+01| Relative Norm : 2.9187e-02
Iteration: 2
|Total Norm: 6.8590e+00 |Residual: 1.2468e+00 |A: 6.7448e+00| Relative Norm : 9.2453e-03
Iteration: 3
|Total Norm: 9.5005e-03 |Residual: 1.9991e-03 |A: 9.2878e-03| Relative Norm : 1.2806e-05
Iteration: 4
|Total Norm: 2.0683e-08 |Residual: 9.5821e-09 |A: 1.8329e-08| Relative Norm : 2.7878e-11
Arc-Length Step 33 :
Iteration: 0
|Total Norm: 7.6422e+02 |Residual: 7.6422e+02 |A: 1.8329e-08| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.9933e+01 |Residual: 2.4646e+01 |A: 1.6987e+01| Relative Norm : 3.9168e-02
Iteration: 2
|Total Norm: 1.4759e+01 |Residual: 3.0639e+00 |A: 1.4438e+01| Relative Norm : 1.9313e-02
Iteration: 3
|Total Norm: 4.3580e-02 |Residual: 9.6163e-03 |A: 4.2506e-02| Relative Norm : 5.7026e-05
Iteration: 4
|Total Norm: 4.1835e-07 |Residual: 1.9417e-07 |A: 3.7056e-07| Relative Norm : 5.4742e-10
Arc-Length Step 34 :
Iteration: 0
|Total Norm: 7.9391e+02 |Residual: 7.9391e+02 |A: 3.7056e-07| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 4.8497e+01 |Residual: 3.3725e+01 |A: 3.4851e+01| Relative Norm : 6.1087e-02
Iteration: 2
|Total Norm: 3.5287e+01 |Residual: 7.4290e+00 |A: 3.4496e+01| Relative Norm : 4.4447e-02
Iteration: 3
|Total Norm: 2.4904e-01 |Residual: 6.0691e-02 |A: 2.4153e-01| Relative Norm : 3.1368e-04
Iteration: 4
|Total Norm: 1.4559e-05 |Residual: 7.6183e-06 |A: 1.2407e-05| Relative Norm : 1.8339e-08
Iteration: 5
|Total Norm: 1.0258e-09 |Residual: 1.0258e-09 |A: 2.7285e-12| Relative Norm : 1.2921e-12
Arc-Length Step 35 :
Iteration: 0
|Total Norm: 8.3363e+02 |Residual: 8.3363e+02 |A: 4.3201e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.0543e+02 |Residual: 5.1469e+01 |A: 9.2008e+01| Relative Norm : 1.2647e-01
Iteration: 2
|Total Norm: 1.0017e+02 |Residual: 1.8495e+01 |A: 9.8444e+01| Relative Norm : 1.2016e-01
Iteration: 3
|Total Norm: 1.9916e+00 |Residual: 5.5867e-01 |A: 1.9116e+00| Relative Norm : 2.3891e-03
Iteration: 4
|Total Norm: 1.1136e-03 |Residual: 6.7108e-04 |A: 8.8870e-04| Relative Norm : 1.3359e-06
Iteration: 5
|Total Norm: 2.3304e-08 |Residual: 9.5922e-09 |A: 2.1239e-08| Relative Norm : 2.7955e-11
Arc-Length Step 36 :
Iteration: 0
|Total Norm: 8.8836e+02 |Residual: 8.8836e+02 |A: 2.1240e-08| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 3.9776e+02 |Residual: 1.0282e+02 |A: 3.8424e+02| Relative Norm : 4.4775e-01
Iteration: 2
|Total Norm: 4.1857e+02 |Residual: 4.7658e+01 |A: 4.1585e+02| Relative Norm : 4.7118e-01
Iteration: 3
|Total Norm: 3.0612e+01 |Residual: 1.0372e+01 |A: 2.8801e+01| Relative Norm : 3.4459e-02
Iteration: 4
|Total Norm: 2.8819e-01 |Residual: 1.9302e-01 |A: 2.1400e-01| Relative Norm : 3.2441e-04
Iteration: 5
|Total Norm: 2.4130e-03 |Residual: 1.1176e-03 |A: 2.1387e-03| Relative Norm : 2.7163e-06
Iteration: 6
|Total Norm: 1.6638e-09 |Residual: 1.3729e-09 |A: 9.3996e-10| Relative Norm : 1.8729e-12
Arc-Length Step 37 :
Iteration: 0
|Total Norm: 9.7213e+02 |Residual: 9.7213e+02 |A: 9.3951e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.3025e+04 |Residual: 1.2948e+03 |A: 1.2960e+04| Relative Norm : 1.3398e+01
Iteration: 2
|Total Norm: 5.3129e+03 |Residual: 2.9468e+02 |A: 5.3047e+03| Relative Norm : 5.4652e+00
Iteration: 3
|Total Norm: 4.9588e+03 |Residual: 2.0274e+03 |A: 4.5254e+03| Relative Norm : 5.1010e+00
Iteration: 4
|Total Norm: 1.0617e+03 |Residual: 5.0742e+02 |A: 9.3255e+02| Relative Norm : 1.0921e+00
Iteration: 5
|Total Norm: 1.1754e+03 |Residual: 8.1232e+02 |A: 8.4958e+02| Relative Norm : 1.2091e+00
Iteration: 6
|Total Norm: 2.6624e+02 |Residual: 5.2200e+01 |A: 2.6107e+02| Relative Norm : 2.7387e-01
Iteration: 7
|Total Norm: 2.7197e+02 |Residual: 2.5515e+02 |A: 9.4155e+01| Relative Norm : 2.7977e-01
Iteration: 8
|Total Norm: 3.1952e+00 |Residual: 2.4446e+00 |A: 2.0574e+00| Relative Norm : 3.2868e-03
Iteration: 9
|Total Norm: 8.5997e-01 |Residual: 7.9963e-01 |A: 3.1644e-01| Relative Norm : 8.8462e-04
Arc-Length Step 37 :
Iteration: 0
|Total Norm: 3.0531e+02 |Residual: 3.0531e+02 |A: 2.3442e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 9.6664e+00 |Residual: 8.8034e+00 |A: 3.9923e+00| Relative Norm : 3.1661e-02
Iteration: 2
|Total Norm: 7.2368e+00 |Residual: 3.4108e+00 |A: 6.3827e+00| Relative Norm : 2.3704e-02
Iteration: 3
|Total Norm: 3.5275e-02 |Residual: 1.0379e-02 |A: 3.3713e-02| Relative Norm : 1.1554e-04
Iteration: 4
|Total Norm: 4.5801e-06 |Residual: 4.0060e-06 |A: 2.2202e-06| Relative Norm : 1.5002e-08
Iteration: 5
|Total Norm: 1.1796e-09 |Residual: 1.1796e-09 |A: -5.6843e-14| Relative Norm : 3.8637e-12
Arc-Length Step 38 :
Iteration: 0
|Total Norm: 2.1374e+02 |Residual: 2.1374e+02 |A: -5.6843e-13| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 4.3704e+00 |Residual: 4.2412e+00 |A: 1.0550e+00| Relative Norm : 2.0447e-02
Iteration: 2
|Total Norm: 3.6135e+00 |Residual: 2.3249e+00 |A: 2.7664e+00| Relative Norm : 1.6906e-02
Iteration: 3
|Total Norm: 6.9385e-03 |Residual: 2.2828e-03 |A: 6.5522e-03| Relative Norm : 3.2462e-05
Iteration: 4
|Total Norm: 7.2607e-07 |Residual: 6.4271e-07 |A: 3.3780e-07| Relative Norm : 3.3970e-09
Arc-Length Step 39 :
Iteration: 0
|Total Norm: 8.6515e+02 |Residual: 8.6515e+02 |A: 1.3512e-06| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.2754e+03 |Residual: 2.4751e+02 |A: 2.2619e+03| Relative Norm : 2.6301e+00
Iteration: 2
|Total Norm: 3.1828e+03 |Residual: 9.3778e+02 |A: 3.0415e+03| Relative Norm : 3.6789e+00
Iteration: 3
|Total Norm: 1.0138e+05 |Residual: 3.5899e+04 |A: 9.4811e+04| Relative Norm : 1.1718e+02
Iteration: 4
|Total Norm: 2.8946e+04 |Residual: 1.3974e+04 |A: 2.5349e+04| Relative Norm : 3.3458e+01
Iteration: 5
|Total Norm: 4.9147e+04 |Residual: 4.2923e+04 |A: 2.3939e+04| Relative Norm : 5.6808e+01
Iteration: 6
|Total Norm: 4.7925e+06 |Residual: 3.6734e+04 |A: 4.7924e+06| Relative Norm : 5.5395e+03
Iteration: 7
|Total Norm: 1.2340e+06 |Residual: 1.8651e+05 |A: 1.2198e+06| Relative Norm : 1.4263e+03
Iteration: 8
|Total Norm: 1.0634e+06 |Residual: 9.0822e+05 |A: 5.5312e+05| Relative Norm : 1.2291e+03
Iteration: 9
|Total Norm: 1.4366e+07 |Residual: 1.4348e+07 |A: 7.2616e+05| Relative Norm : 1.6606e+04
Arc-Length Step 39 :
Iteration: 0
|Total Norm: 2.5098e+02 |Residual: 2.5098e+02 |A: 3.3780e-07| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 5.9101e+00 |Residual: 5.6395e+00 |A: 1.7679e+00| Relative Norm : 2.3548e-02
Iteration: 2
|Total Norm: 9.1252e+00 |Residual: 6.0400e+00 |A: 6.8401e+00| Relative Norm : 3.6358e-02
Iteration: 3
|Total Norm: 4.3151e-02 |Residual: 1.6083e-02 |A: 4.0041e-02| Relative Norm : 1.7193e-04
Iteration: 4
|Total Norm: 8.4164e-05 |Residual: 7.3578e-05 |A: 4.0864e-05| Relative Norm : 3.3534e-07
Iteration: 5
|Total Norm: 1.1576e-09 |Residual: 1.1576e-09 |A: 1.7621e-12| Relative Norm : 4.6121e-12
Arc-Length Step 40 :
Iteration: 0
|Total Norm: 3.3425e+02 |Residual: 3.3425e+02 |A: 1.9895e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 8.9995e+00 |Residual: 8.1935e+00 |A: 3.7226e+00| Relative Norm : 2.6924e-02
Iteration: 2
|Total Norm: 2.9620e+01 |Residual: 2.0054e+01 |A: 2.1798e+01| Relative Norm : 8.8615e-02
Iteration: 3
|Total Norm: 4.5983e-01 |Residual: 2.0366e-01 |A: 4.1227e-01| Relative Norm : 1.3757e-03
Iteration: 4
|Total Norm: 2.4524e-02 |Residual: 2.0059e-02 |A: 1.4108e-02| Relative Norm : 7.3369e-05
Iteration: 5
|Total Norm: 2.7188e-07 |Residual: 2.1059e-07 |A: 1.7196e-07| Relative Norm : 8.1339e-10
Arc-Length Step 41 :
Iteration: 0
|Total Norm: 1.9130e+03 |Residual: 1.9130e+03 |A: 6.8784e-07| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.6912e+02 |Residual: 1.0590e+02 |A: 2.4741e+02| Relative Norm : 1.4068e-01
Iteration: 2
|Total Norm: 1.0929e+03 |Residual: 8.8834e+02 |A: 6.3666e+02| Relative Norm : 5.7132e-01
Iteration: 3
|Total Norm: 2.4668e+02 |Residual: 7.0338e+01 |A: 2.3644e+02| Relative Norm : 1.2895e-01
Iteration: 4
|Total Norm: 4.8892e+02 |Residual: 1.4684e+02 |A: 4.6635e+02| Relative Norm : 2.5558e-01
Iteration: 5
|Total Norm: 1.1325e+02 |Residual: 1.0005e+02 |A: 5.3056e+01| Relative Norm : 5.9200e-02
Iteration: 6
|Total Norm: 9.7817e+03 |Residual: 6.6919e+03 |A: 7.1344e+03| Relative Norm : 5.1133e+00
Iteration: 7
|Total Norm: 1.1388e+06 |Residual: 4.6389e+04 |A: 1.1379e+06| Relative Norm : 5.9530e+02
Iteration: 8
|Total Norm: 2.8804e+05 |Residual: 3.3340e+04 |A: 2.8611e+05| Relative Norm : 1.5057e+02
Iteration: 9
|Total Norm: 4.2007e+07 |Residual: 4.1977e+07 |A: 1.6040e+06| Relative Norm : 2.1959e+04
Arc-Length Step 41 :
Iteration: 0
|Total Norm: 5.5198e+02 |Residual: 5.5198e+02 |A: 1.7196e-07| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.6346e+01 |Residual: 1.3235e+01 |A: 9.5931e+00| Relative Norm : 2.9613e-02
Iteration: 2
|Total Norm: 1.4398e+02 |Residual: 9.8885e+01 |A: 1.0465e+02| Relative Norm : 2.6084e-01
Iteration: 3
|Total Norm: 2.2984e+01 |Residual: 9.1539e+00 |A: 2.1082e+01| Relative Norm : 4.1639e-02
Iteration: 4
|Total Norm: 2.8485e+01 |Residual: 1.2648e+01 |A: 2.5524e+01| Relative Norm : 5.1606e-02
Iteration: 5
|Total Norm: 2.4079e+00 |Residual: 9.8792e-01 |A: 2.1959e+00| Relative Norm : 4.3623e-03
Iteration: 6
|Total Norm: 2.1341e-01 |Residual: 1.1094e-01 |A: 1.8231e-01| Relative Norm : 3.8663e-04
Iteration: 7
|Total Norm: 8.1813e-05 |Residual: 3.5377e-05 |A: 7.3768e-05| Relative Norm : 1.4822e-07
Iteration: 8
|Total Norm: 1.4436e-09 |Residual: 1.4153e-09 |A: 2.8416e-10| Relative Norm : 2.6153e-12
Arc-Length Step 42 :
Iteration: 0
|Total Norm: 1.0834e+03 |Residual: 1.0834e+03 |A: 2.8405e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.4754e+01 |Residual: 2.3006e+01 |A: 9.1375e+00| Relative Norm : 2.2849e-02
Iteration: 2
|Total Norm: 5.3494e+02 |Residual: 3.1920e+02 |A: 4.2927e+02| Relative Norm : 4.9378e-01
Iteration: 3
|Total Norm: 1.3550e+02 |Residual: 4.6432e+01 |A: 1.2729e+02| Relative Norm : 1.2507e-01
Iteration: 4
|Total Norm: 6.7887e+01 |Residual: 4.3302e+01 |A: 5.2283e+01| Relative Norm : 6.2664e-02
Iteration: 5
|Total Norm: 2.6485e+01 |Residual: 1.2995e+01 |A: 2.3078e+01| Relative Norm : 2.4447e-02
Iteration: 6
|Total Norm: 3.3707e+00 |Residual: 1.8679e+00 |A: 2.8058e+00| Relative Norm : 3.1114e-03
Iteration: 7
|Total Norm: 3.0580e-01 |Residual: 1.2608e-01 |A: 2.7860e-01| Relative Norm : 2.8227e-04
Iteration: 8
|Total Norm: 4.6698e-04 |Residual: 2.9369e-04 |A: 3.6306e-04| Relative Norm : 4.3105e-07
Iteration: 9
|Total Norm: 4.5945e-09 |Residual: 2.2803e-09 |A: 3.9886e-09| Relative Norm : 4.2410e-12
Arc-Length Step 43 :
Iteration: 0
|Total Norm: 5.2794e+03 |Residual: 5.2794e+03 |A: 1.5953e-08| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.7371e+02 |Residual: 2.3182e+02 |A: 1.4551e+02| Relative Norm : 5.1844e-02
Iteration: 2
|Total Norm: 3.9459e+02 |Residual: 2.3488e+02 |A: 3.1706e+02| Relative Norm : 7.4740e-02
Iteration: 3
|Total Norm: 5.7430e+01 |Residual: 3.6549e+01 |A: 4.4298e+01| Relative Norm : 1.0878e-02
Iteration: 4
|Total Norm: 1.3415e+03 |Residual: 1.0924e+03 |A: 7.7866e+02| Relative Norm : 2.5410e-01
Iteration: 5
|Total Norm: 2.9276e+02 |Residual: 8.0437e+01 |A: 2.8149e+02| Relative Norm : 5.5453e-02
Iteration: 6
|Total Norm: 9.7942e+04 |Residual: 7.2246e+04 |A: 6.6130e+04| Relative Norm : 1.8552e+01
Iteration: 7
|Total Norm: 4.1430e+05 |Residual: 3.8981e+05 |A: 1.4034e+05| Relative Norm : 7.8475e+01
Iteration: 8
|Total Norm: 9.3584e+04 |Residual: 7.7291e+04 |A: 5.2765e+04| Relative Norm : 1.7726e+01
Iteration: 9
|Total Norm: 6.2626e+04 |Residual: 1.7140e+04 |A: 6.0235e+04| Relative Norm : 1.1862e+01
Arc-Length Step 43 :
Iteration: 0
|Total Norm: 1.4311e+03 |Residual: 1.4311e+03 |A: 3.9872e-09| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.6572e+01 |Residual: 2.4006e+01 |A: 1.1393e+01| Relative Norm : 1.8568e-02
Iteration: 2
|Total Norm: 2.3830e+01 |Residual: 1.0962e+01 |A: 2.1160e+01| Relative Norm : 1.6652e-02
Iteration: 3
|Total Norm: 5.8493e-01 |Residual: 4.0156e-01 |A: 4.2531e-01| Relative Norm : 4.0872e-04
Iteration: 4
|Total Norm: 9.9179e-03 |Residual: 7.7088e-03 |A: 6.2401e-03| Relative Norm : 6.9302e-06
Iteration: 5
|Total Norm: 2.7849e-07 |Residual: 1.3788e-07 |A: 2.4196e-07| Relative Norm : 1.9459e-10
Arc-Length Step 44 :
Iteration: 0
|Total Norm: 1.1320e+03 |Residual: 1.1320e+03 |A: 2.4196e-07| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.5422e+01 |Residual: 1.4699e+01 |A: 4.6669e+00| Relative Norm : 1.3623e-02
Iteration: 2
|Total Norm: 9.0651e+00 |Residual: 5.9245e+00 |A: 6.8613e+00| Relative Norm : 8.0079e-03
Iteration: 3
|Total Norm: 6.2441e-02 |Residual: 4.4044e-02 |A: 4.4261e-02| Relative Norm : 5.5159e-05
Iteration: 4
|Total Norm: 3.2694e-05 |Residual: 1.6423e-05 |A: 2.8269e-05| Relative Norm : 2.8881e-08
Iteration: 5
|Total Norm: 1.0614e-09 |Residual: 1.0613e-09 |A: 1.1369e-12| Relative Norm : 9.3757e-13
Arc-Length Step 45 :
Iteration: 0
|Total Norm: 3.0725e+03 |Residual: 3.0725e+03 |A: 8.8676e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 8.3556e+01 |Residual: 7.1422e+01 |A: 4.3365e+01| Relative Norm : 2.7195e-02
Iteration: 2
|Total Norm: 2.6372e+01 |Residual: 2.1674e+01 |A: 1.5024e+01| Relative Norm : 8.5831e-03
Iteration: 3
|Total Norm: 1.3209e+00 |Residual: 1.0209e+00 |A: 8.3818e-01| Relative Norm : 4.2991e-04
Iteration: 4
|Total Norm: 1.2357e-01 |Residual: 9.8729e-02 |A: 7.4307e-02| Relative Norm : 4.0217e-05
Iteration: 5
|Total Norm: 2.9201e-05 |Residual: 2.1923e-05 |A: 1.9290e-05| Relative Norm : 9.5041e-09
Iteration: 6
|Total Norm: 1.5222e-09 |Residual: 1.5215e-09 |A: 4.6157e-11| Relative Norm : 4.9543e-13
Arc-Length Step 46 :
Iteration: 0
|Total Norm: 3.2992e+03 |Residual: 3.2992e+03 |A: 4.7976e-11| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 8.7966e+01 |Residual: 7.0622e+01 |A: 5.2446e+01| Relative Norm : 2.6663e-02
Iteration: 2
|Total Norm: 1.9492e+01 |Residual: 1.2204e+01 |A: 1.5198e+01| Relative Norm : 5.9080e-03
Iteration: 3
|Total Norm: 3.3927e-01 |Residual: 2.4996e-01 |A: 2.2941e-01| Relative Norm : 1.0283e-04
Iteration: 4
|Total Norm: 4.0379e-03 |Residual: 3.4742e-03 |A: 2.0579e-03| Relative Norm : 1.2239e-06
Iteration: 5
|Total Norm: 4.4830e-08 |Residual: 3.7218e-08 |A: 2.4991e-08| Relative Norm : 1.3588e-11
Arc-Length Step 47 :
Iteration: 0
|Total Norm: 2.5528e+03 |Residual: 2.5528e+03 |A: 2.4991e-08| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 4.7084e+01 |Residual: 3.6305e+01 |A: 2.9981e+01| Relative Norm : 1.8444e-02
Iteration: 2
|Total Norm: 8.5594e+00 |Residual: 3.8130e+00 |A: 7.6632e+00| Relative Norm : 3.3530e-03
Iteration: 3
|Total Norm: 2.2961e-02 |Residual: 1.3582e-02 |A: 1.8513e-02| Relative Norm : 8.9946e-06
Iteration: 4
|Total Norm: 1.2764e-06 |Residual: 1.1794e-06 |A: 4.8810e-07| Relative Norm : 5.0001e-10
Iteration: 5
|Total Norm: 1.0964e-09 |Residual: 1.0964e-09 |A: 6.8212e-13| Relative Norm : 4.2950e-13
Arc-Length Step 48 :
Iteration: 0
|Total Norm: 2.1725e+03 |Residual: 2.1725e+03 |A: 0.0000e+00| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 3.0644e+01 |Residual: 2.2982e+01 |A: 2.0271e+01| Relative Norm : 1.4105e-02
Iteration: 2
|Total Norm: 4.8329e+00 |Residual: 1.7939e+00 |A: 4.4876e+00| Relative Norm : 2.2246e-03
Iteration: 3
|Total Norm: 5.2186e-03 |Residual: 3.0095e-03 |A: 4.2635e-03| Relative Norm : 2.4021e-06
Iteration: 4
|Total Norm: 1.8140e-07 |Residual: 1.5941e-07 |A: 8.6571e-08| Relative Norm : 8.3499e-11
Arc-Length Step 49 :
Iteration: 0
|Total Norm: 1.9425e+03 |Residual: 1.9425e+03 |A: 8.6571e-08| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.3890e+01 |Residual: 1.7323e+01 |A: 1.6451e+01| Relative Norm : 1.2299e-02
Iteration: 2
|Total Norm: 3.7723e+00 |Residual: 1.2831e+00 |A: 3.5474e+00| Relative Norm : 1.9420e-03
Iteration: 3
|Total Norm: 4.2691e-03 |Residual: 3.2805e-03 |A: 2.7319e-03| Relative Norm : 2.1977e-06
Iteration: 4
|Total Norm: 1.1598e-07 |Residual: 1.0540e-07 |A: 4.8386e-08| Relative Norm : 5.9705e-11
Arc-Length Step 50 :
Iteration: 0
|Total Norm: 1.7855e+03 |Residual: 1.7855e+03 |A: 4.8385e-08| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.1559e+01 |Residual: 1.5042e+01 |A: 1.5444e+01| Relative Norm : 1.2074e-02
Iteration: 2
|Total Norm: 3.9668e+00 |Residual: 1.2737e+00 |A: 3.7568e+00| Relative Norm : 2.2217e-03
Iteration: 3
|Total Norm: 4.9897e-03 |Residual: 3.8191e-03 |A: 3.2112e-03| Relative Norm : 2.7946e-06
Iteration: 4
|Total Norm: 6.9311e-08 |Residual: 6.1737e-08 |A: 3.1504e-08| Relative Norm : 3.8819e-11
Arc-Length Step 51 :
Iteration: 0
|Total Norm: 1.6669e+03 |Residual: 1.6669e+03 |A: 3.1505e-08| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.1710e+01 |Residual: 1.4947e+01 |A: 1.5746e+01| Relative Norm : 1.3024e-02
Iteration: 2
|Total Norm: 4.7876e+00 |Residual: 1.2340e+00 |A: 4.6258e+00| Relative Norm : 2.8722e-03
Iteration: 3
|Total Norm: 6.3734e-03 |Residual: 4.3109e-03 |A: 4.6943e-03| Relative Norm : 3.8235e-06
Iteration: 4
|Total Norm: 4.7688e-08 |Residual: 3.9048e-08 |A: 2.7375e-08| Relative Norm : 2.8609e-11
Arc-Length Step 52 :
Iteration: 0
|Total Norm: 1.5696e+03 |Residual: 1.5696e+03 |A: 2.7374e-08| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.3309e+01 |Residual: 1.6756e+01 |A: 1.6204e+01| Relative Norm : 1.4851e-02
Iteration: 2
|Total Norm: 5.7841e+00 |Residual: 1.0686e+00 |A: 5.6846e+00| Relative Norm : 3.6852e-03
Iteration: 3
|Total Norm: 8.2520e-03 |Residual: 4.6787e-03 |A: 6.7974e-03| Relative Norm : 5.2575e-06
Iteration: 4
|Total Norm: 3.8276e-08 |Residual: 2.6520e-08 |A: 2.7600e-08| Relative Norm : 2.4387e-11
Arc-Length Step 53 :
Iteration: 0
|Total Norm: 1.4850e+03 |Residual: 1.4850e+03 |A: 2.7600e-08| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.4958e+01 |Residual: 1.9336e+01 |A: 1.5781e+01| Relative Norm : 1.6807e-02
Iteration: 2
|Total Norm: 6.3691e+00 |Residual: 8.6716e-01 |A: 6.3098e+00| Relative Norm : 4.2889e-03
Iteration: 3
|Total Norm: 9.3652e-03 |Residual: 4.5344e-03 |A: 8.1943e-03| Relative Norm : 6.3065e-06
Iteration: 4
|Total Norm: 3.0272e-08 |Residual: 1.7143e-08 |A: 2.4950e-08| Relative Norm : 2.0385e-11
Arc-Length Step 54 :
Iteration: 0
|Total Norm: 1.4095e+03 |Residual: 1.4095e+03 |A: 2.4949e-08| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.5467e+01 |Residual: 2.1301e+01 |A: 1.3958e+01| Relative Norm : 1.8068e-02
Iteration: 2
|Total Norm: 6.0871e+00 |Residual: 7.2023e-01 |A: 6.0444e+00| Relative Norm : 4.3187e-03
Iteration: 3
|Total Norm: 8.2837e-03 |Residual: 3.5907e-03 |A: 7.4651e-03| Relative Norm : 5.8771e-06
Iteration: 4
|Total Norm: 1.8111e-08 |Residual: 8.0013e-09 |A: 1.6248e-08| Relative Norm : 1.2849e-11
Arc-Length Step 55 :
Iteration: 0
|Total Norm: 1.3418e+03 |Residual: 1.3418e+03 |A: 1.6248e-08| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.4594e+01 |Residual: 2.1990e+01 |A: 1.1014e+01| Relative Norm : 1.8330e-02
Iteration: 2
|Total Norm: 4.9755e+00 |Residual: 6.2818e-01 |A: 4.9357e+00| Relative Norm : 3.7082e-03
Iteration: 3
|Total Norm: 5.4467e-03 |Residual: 2.2047e-03 |A: 4.9805e-03| Relative Norm : 4.0594e-06
Iteration: 4
|Total Norm: 7.5227e-09 |Residual: 3.3572e-09 |A: 6.7321e-09| Relative Norm : 5.6066e-12
Arc-Length Step 56 :
Iteration: 0
|Total Norm: 1.2817e+03 |Residual: 1.2817e+03 |A: 6.7316e-09| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.2860e+01 |Residual: 2.1514e+01 |A: 7.7308e+00| Relative Norm : 1.7836e-02
Iteration: 2
|Total Norm: 3.4750e+00 |Residual: 5.5187e-01 |A: 3.4309e+00| Relative Norm : 2.7113e-03
Iteration: 3
|Total Norm: 2.6306e-03 |Residual: 1.0324e-03 |A: 2.4195e-03| Relative Norm : 2.0524e-06
Iteration: 4
|Total Norm: 2.1376e-09 |Residual: 1.3637e-09 |A: 1.6462e-09| Relative Norm : 1.6678e-12
Arc-Length Step 57 :
Iteration: 0
|Total Norm: 1.2294e+03 |Residual: 1.2294e+03 |A: 1.6455e-09| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.0923e+01 |Residual: 2.0355e+01 |A: 4.8428e+00| Relative Norm : 1.7018e-02
Iteration: 2
|Total Norm: 2.0644e+00 |Residual: 4.8074e-01 |A: 2.0076e+00| Relative Norm : 1.6792e-03
Iteration: 3
|Total Norm: 9.1471e-04 |Residual: 3.6684e-04 |A: 8.3793e-04| Relative Norm : 7.4402e-07
Iteration: 4
|Total Norm: 8.9354e-10 |Residual: 8.6425e-10 |A: 2.2692e-10| Relative Norm : 7.2680e-13
Arc-Length Step 58 :
Iteration: 0
|Total Norm: 1.1850e+03 |Residual: 1.1850e+03 |A: 2.2646e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.9208e+01 |Residual: 1.9011e+01 |A: 2.7445e+00| Relative Norm : 1.6210e-02
Iteration: 2
|Total Norm: 1.0329e+00 |Residual: 4.2184e-01 |A: 9.4283e-01| Relative Norm : 8.7167e-04
Iteration: 3
|Total Norm: 2.1547e-04 |Residual: 1.0105e-04 |A: 1.9031e-04| Relative Norm : 1.8184e-07
Iteration: 4
|Total Norm: 1.1265e-09 |Residual: 1.1264e-09 |A: 2.0464e-11| Relative Norm : 9.5069e-13
Arc-Length Step 59 :
Iteration: 0
|Total Norm: 1.1481e+03 |Residual: 1.1481e+03 |A: 2.0464e-11| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.7888e+01 |Residual: 1.7824e+01 |A: 1.5079e+00| Relative Norm : 1.5580e-02
Iteration: 2
|Total Norm: 4.8614e-01 |Residual: 3.7836e-01 |A: 3.0525e-01| Relative Norm : 4.2342e-04
Iteration: 3
|Total Norm: 3.9906e-05 |Residual: 3.2494e-05 |A: 2.3164e-05| Relative Norm : 3.4757e-08
Iteration: 4
|Total Norm: 7.2756e-10 |Residual: 7.2756e-10 |A: 2.2737e-12| Relative Norm : 6.3370e-13
Arc-Length Step 60 :
Iteration: 0
|Total Norm: 1.1185e+03 |Residual: 1.1185e+03 |A: 3.6380e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.6981e+01 |Residual: 1.6950e+01 |A: 1.0182e+00| Relative Norm : 1.5182e-02
Iteration: 2
|Total Norm: 3.5162e-01 |Residual: 3.4911e-01 |A: 4.1948e-02| Relative Norm : 3.1437e-04
Iteration: 3
|Total Norm: 2.7655e-05 |Residual: 2.7519e-05 |A: 2.7375e-06| Relative Norm : 2.4726e-08
Iteration: 4
|Total Norm: 7.8005e-10 |Residual: 7.8005e-10 |A: 2.2737e-12| Relative Norm : 6.9742e-13
Arc-Length Step 61 :
Iteration: 0
|Total Norm: 1.0956e+03 |Residual: 1.0956e+03 |A: 1.8190e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.6441e+01 |Residual: 1.6405e+01 |A: 1.0885e+00| Relative Norm : 1.5007e-02
Iteration: 2
|Total Norm: 3.3921e-01 |Residual: 3.3477e-01 |A: 5.4720e-02| Relative Norm : 3.0963e-04
Iteration: 3
|Total Norm: 3.5728e-05 |Residual: 3.5551e-05 |A: 3.5526e-06| Relative Norm : 3.2612e-08
Iteration: 4
|Total Norm: 6.2527e-10 |Residual: 6.2525e-10 |A: 4.0927e-12| Relative Norm : 5.7073e-13
Arc-Length Step 62 :
Iteration: 0
|Total Norm: 1.0789e+03 |Residual: 1.0789e+03 |A: 4.0927e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.6198e+01 |Residual: 1.6126e+01 |A: 1.5257e+00| Relative Norm : 1.5014e-02
Iteration: 2
|Total Norm: 4.1616e-01 |Residual: 3.3840e-01 |A: 2.4223e-01| Relative Norm : 3.8574e-04
Iteration: 3
|Total Norm: 6.8123e-05 |Residual: 6.5885e-05 |A: 1.7319e-05| Relative Norm : 6.3144e-08
Iteration: 4
|Total Norm: 6.5442e-10 |Residual: 6.5430e-10 |A: 1.2506e-11| Relative Norm : 6.0659e-13
Arc-Length Step 63 :
Iteration: 0
|Total Norm: 1.0680e+03 |Residual: 1.0680e+03 |A: 1.2506e-11| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.6176e+01 |Residual: 1.6032e+01 |A: 2.1598e+00| Relative Norm : 1.5147e-02
Iteration: 2
|Total Norm: 6.3182e-01 |Residual: 3.6145e-01 |A: 5.1822e-01| Relative Norm : 5.9160e-04
Iteration: 3
|Total Norm: 1.5032e-04 |Residual: 1.3577e-04 |A: 6.4532e-05| Relative Norm : 1.4075e-07
Iteration: 4
|Total Norm: 6.7151e-10 |Residual: 6.7086e-10 |A: 2.9559e-11| Relative Norm : 6.2877e-13
Arc-Length Step 64 :
Iteration: 0
|Total Norm: 1.0627e+03 |Residual: 1.0627e+03 |A: 2.9331e-11| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.6308e+01 |Residual: 1.6056e+01 |A: 2.8578e+00| Relative Norm : 1.5347e-02
Iteration: 2
|Total Norm: 9.1216e-01 |Residual: 4.0191e-01 |A: 8.1885e-01| Relative Norm : 8.5838e-04
Iteration: 3
|Total Norm: 2.9705e-04 |Residual: 2.5418e-04 |A: 1.5373e-04| Relative Norm : 2.7953e-07
Iteration: 4
|Total Norm: 7.5706e-10 |Residual: 7.5482e-10 |A: 5.8208e-11| Relative Norm : 7.1242e-13
Arc-Length Step 65 :
Iteration: 0
|Total Norm: 1.0629e+03 |Residual: 1.0629e+03 |A: 5.7980e-11| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.6550e+01 |Residual: 1.6170e+01 |A: 3.5298e+00| Relative Norm : 1.5571e-02
Iteration: 2
|Total Norm: 1.1966e+00 |Residual: 4.5704e-01 |A: 1.1059e+00| Relative Norm : 1.1259e-03
Iteration: 3
|Total Norm: 5.0876e-04 |Residual: 4.2608e-04 |A: 2.7802e-04| Relative Norm : 4.7867e-07
Iteration: 4
|Total Norm: 7.0397e-10 |Residual: 6.9673e-10 |A: 1.0073e-10| Relative Norm : 6.6233e-13
Arc-Length Step 66 :
Iteration: 0
|Total Norm: 1.0688e+03 |Residual: 1.0688e+03 |A: 1.0164e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.6894e+01 |Residual: 1.6381e+01 |A: 4.1322e+00| Relative Norm : 1.5806e-02
Iteration: 2
|Total Norm: 1.4661e+00 |Residual: 5.2733e-01 |A: 1.3680e+00| Relative Norm : 1.3717e-03
Iteration: 3
|Total Norm: 7.8783e-04 |Residual: 6.6074e-04 |A: 4.2906e-04| Relative Norm : 7.3708e-07
Iteration: 4
|Total Norm: 6.9100e-10 |Residual: 6.6706e-10 |A: 1.8031e-10| Relative Norm : 6.4650e-13
Arc-Length Step 67 :
Iteration: 0
|Total Norm: 1.0812e+03 |Residual: 1.0812e+03 |A: 1.8031e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.7378e+01 |Residual: 1.6740e+01 |A: 4.6682e+00| Relative Norm : 1.6073e-02
Iteration: 2
|Total Norm: 1.7365e+00 |Residual: 6.1977e-01 |A: 1.6221e+00| Relative Norm : 1.6061e-03
Iteration: 3
|Total Norm: 1.1604e-03 |Residual: 9.8389e-04 |A: 6.1513e-04| Relative Norm : 1.0732e-06
Iteration: 4
|Total Norm: 9.3381e-10 |Residual: 8.5342e-10 |A: 3.7903e-10| Relative Norm : 8.6367e-13
Arc-Length Step 68 :
Iteration: 0
|Total Norm: 1.1011e+03 |Residual: 1.1011e+03 |A: 3.8017e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.8113e+01 |Residual: 1.7352e+01 |A: 5.1934e+00| Relative Norm : 1.6450e-02
Iteration: 2
|Total Norm: 2.0642e+00 |Residual: 7.5159e-01 |A: 1.9225e+00| Relative Norm : 1.8746e-03
Iteration: 3
|Total Norm: 1.7058e-03 |Residual: 1.4576e-03 |A: 8.8607e-04| Relative Norm : 1.5492e-06
Iteration: 4
|Total Norm: 2.0394e-09 |Residual: 1.6904e-09 |A: 1.1410e-09| Relative Norm : 1.8521e-12
Arc-Length Step 69 :
Iteration: 0
|Total Norm: 1.1306e+03 |Residual: 1.1306e+03 |A: 1.1407e-09| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.9354e+01 |Residual: 1.8451e+01 |A: 5.8429e+00| Relative Norm : 1.7119e-02
Iteration: 2
|Total Norm: 2.5828e+00 |Residual: 9.5704e-01 |A: 2.3990e+00| Relative Norm : 2.2845e-03
Iteration: 3
|Total Norm: 2.6397e-03 |Residual: 2.2328e-03 |A: 1.4080e-03| Relative Norm : 2.3348e-06
Iteration: 4
|Total Norm: 8.5583e-09 |Residual: 6.9496e-09 |A: 4.9947e-09| Relative Norm : 7.5699e-12
Arc-Length Step 70 :
Iteration: 0
|Total Norm: 1.1728e+03 |Residual: 1.1728e+03 |A: 4.9947e-09| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.1659e+01 |Residual: 2.0523e+01 |A: 6.9223e+00| Relative Norm : 1.8468e-02
Iteration: 2
|Total Norm: 3.6347e+00 |Residual: 1.3042e+00 |A: 3.3926e+00| Relative Norm : 3.0991e-03
Iteration: 3
|Total Norm: 4.7043e-03 |Residual: 3.7703e-03 |A: 2.8134e-03| Relative Norm : 4.0111e-06
Iteration: 4
|Total Norm: 4.5058e-08 |Residual: 3.6039e-08 |A: 2.7045e-08| Relative Norm : 3.8419e-11
Arc-Length Step 71 :
Iteration: 0
|Total Norm: 1.2333e+03 |Residual: 1.2333e+03 |A: 2.7044e-08| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.6115e+01 |Residual: 2.4443e+01 |A: 9.1936e+00| Relative Norm : 2.1174e-02
Iteration: 2
|Total Norm: 6.2304e+00 |Residual: 1.9868e+00 |A: 5.9051e+00| Relative Norm : 5.0517e-03
Iteration: 3
|Total Norm: 1.1610e-02 |Residual: 8.1359e-03 |A: 8.2825e-03| Relative Norm : 9.4136e-06
Iteration: 4
|Total Norm: 2.6947e-07 |Residual: 2.0657e-07 |A: 1.7304e-07| Relative Norm : 2.1849e-10
Arc-Length Step 72 :
Iteration: 0
|Total Norm: 1.3220e+03 |Residual: 1.3220e+03 |A: 1.7304e-07| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 3.4715e+01 |Residual: 3.1444e+01 |A: 1.4710e+01| Relative Norm : 2.6260e-02
Iteration: 2
|Total Norm: 1.3484e+01 |Residual: 3.8430e+00 |A: 1.2924e+01| Relative Norm : 1.0200e-02
Iteration: 3
|Total Norm: 4.7462e-02 |Residual: 2.8141e-02 |A: 3.8219e-02| Relative Norm : 3.5902e-05
Iteration: 4
|Total Norm: 2.9009e-06 |Residual: 2.1231e-06 |A: 1.9769e-06| Relative Norm : 2.1944e-09
Iteration: 5
|Total Norm: 3.8432e-10 |Residual: 3.8432e-10 |A: 4.5475e-13| Relative Norm : 2.9072e-13
Arc-Length Step 73 :
Iteration: 0
|Total Norm: 1.4587e+03 |Residual: 1.4587e+03 |A: 1.1369e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 5.2403e+01 |Residual: 4.3460e+01 |A: 2.9280e+01| Relative Norm : 3.5925e-02
Iteration: 2
|Total Norm: 3.5150e+01 |Residual: 1.0223e+01 |A: 3.3630e+01| Relative Norm : 2.4097e-02
Iteration: 3
|Total Norm: 3.0165e-01 |Residual: 1.6598e-01 |A: 2.5188e-01| Relative Norm : 2.0680e-04
Iteration: 4
|Total Norm: 1.2187e-04 |Residual: 9.6238e-05 |A: 7.4772e-05| Relative Norm : 8.3550e-08
Iteration: 5
|Total Norm: 3.2141e-10 |Residual: 3.2140e-10 |A: 2.9559e-12| Relative Norm : 2.2035e-13
Arc-Length Step 74 :
Iteration: 0
|Total Norm: 1.6914e+03 |Residual: 1.6914e+03 |A: 2.9559e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 9.8940e+01 |Residual: 6.6016e+01 |A: 7.3696e+01| Relative Norm : 5.8496e-02
Iteration: 2
|Total Norm: 1.1061e+02 |Residual: 3.5876e+01 |A: 1.0463e+02| Relative Norm : 6.5394e-02
Iteration: 3
|Total Norm: 2.9477e+00 |Residual: 1.6899e+00 |A: 2.4152e+00| Relative Norm : 1.7428e-03
Iteration: 4
|Total Norm: 2.1846e-02 |Residual: 1.8631e-02 |A: 1.1408e-02| Relative Norm : 1.2916e-05
Iteration: 5
|Total Norm: 5.3327e-07 |Residual: 5.2788e-07 |A: 7.5664e-08| Relative Norm : 3.1528e-10
Arc-Length Step 75 :
Iteration: 0
|Total Norm: 2.1742e+03 |Residual: 2.1742e+03 |A: 7.5664e-08| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.9731e+02 |Residual: 1.2806e+02 |A: 2.6832e+02| Relative Norm : 1.3674e-01
Iteration: 2
|Total Norm: 5.3588e+02 |Residual: 2.1345e+02 |A: 4.9153e+02| Relative Norm : 2.4647e-01
Iteration: 3
|Total Norm: 1.4573e+02 |Residual: 1.1634e+02 |A: 8.7761e+01| Relative Norm : 6.7027e-02
Iteration: 4
|Total Norm: 3.9436e+02 |Residual: 3.1479e+02 |A: 2.3754e+02| Relative Norm : 1.8138e-01
Iteration: 5
|Total Norm: 1.0723e+02 |Residual: 8.5663e+01 |A: 6.4502e+01| Relative Norm : 4.9320e-02
Iteration: 6
|Total Norm: 4.7894e+03 |Residual: 4.3114e+03 |A: 2.0858e+03| Relative Norm : 2.2028e+00
Iteration: 7
|Total Norm: 3.1823e+05 |Residual: 6.9222e+04 |A: 3.1061e+05| Relative Norm : 1.4636e+02
Iteration: 8
|Total Norm: 6.7913e+05 |Residual: 6.7447e+05 |A: 7.9426e+04| Relative Norm : 3.1235e+02
Iteration: 9
|Total Norm: 1.8018e+06 |Residual: 1.7991e+06 |A: 1.0020e+05| Relative Norm : 8.2873e+02
Arc-Length Step 75 :
Iteration: 0
|Total Norm: 7.4152e+02 |Residual: 7.4152e+02 |A: 1.8916e-08| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.0938e+01 |Residual: 1.0855e+01 |A: 1.3476e+00| Relative Norm : 1.4751e-02
Iteration: 2
|Total Norm: 9.7194e+00 |Residual: 8.5134e+00 |A: 4.6891e+00| Relative Norm : 1.3107e-02
Iteration: 3
|Total Norm: 2.3999e-02 |Residual: 1.2139e-02 |A: 2.0702e-02| Relative Norm : 3.2364e-05
Iteration: 4
|Total Norm: 7.2453e-06 |Residual: 6.3356e-06 |A: 3.5148e-06| Relative Norm : 9.7708e-09
Iteration: 5
|Total Norm: 3.1211e-10 |Residual: 3.1211e-10 |A: -1.7053e-13| Relative Norm : 4.2091e-13
Arc-Length Step 76 :
Iteration: 0
|Total Norm: 6.5901e+02 |Residual: 6.5901e+02 |A: 1.7053e-13| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 8.8806e+00 |Residual: 8.8534e+00 |A: 6.9461e-01| Relative Norm : 1.3476e-02
Iteration: 2
|Total Norm: 1.6395e+01 |Residual: 1.4493e+01 |A: 7.6646e+00| Relative Norm : 2.4878e-02
Iteration: 3
|Total Norm: 6.4726e-02 |Residual: 3.8241e-02 |A: 5.2222e-02| Relative Norm : 9.8218e-05
Iteration: 4
|Total Norm: 3.1978e-04 |Residual: 2.9842e-04 |A: 1.1492e-04| Relative Norm : 4.8524e-07
Iteration: 5
|Total Norm: 3.3267e-10 |Residual: 3.3248e-10 |A: 1.1141e-11| Relative Norm : 5.0480e-13
Arc-Length Step 77 :
Iteration: 0
|Total Norm: 3.1451e+03 |Residual: 3.1451e+03 |A: 4.5702e-11| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 5.8291e+02 |Residual: 2.8301e+02 |A: 5.0960e+02| Relative Norm : 1.8534e-01
Iteration: 2
|Total Norm: 5.2702e+03 |Residual: 4.1101e+03 |A: 3.2987e+03| Relative Norm : 1.6757e+00
Iteration: 3
|Total Norm: 1.6970e+03 |Residual: 4.3656e+02 |A: 1.6399e+03| Relative Norm : 5.3956e-01
Iteration: 4
|Total Norm: 6.9124e+04 |Residual: 6.6177e+04 |A: 1.9970e+04| Relative Norm : 2.1979e+01
Iteration: 5
|Total Norm: 1.4787e+05 |Residual: 1.4768e+05 |A: 7.4462e+03| Relative Norm : 4.7015e+01
Iteration: 6
|Total Norm: 1.5597e+04 |Residual: 1.5254e+04 |A: 3.2517e+03| Relative Norm : 4.9592e+00
Iteration: 7
|Total Norm: 1.7982e+04 |Residual: 1.7731e+04 |A: 2.9922e+03| Relative Norm : 5.7174e+00
Iteration: 8
|Total Norm: 2.2608e+03 |Residual: 1.8906e+03 |A: 1.2397e+03| Relative Norm : 7.1883e-01
Iteration: 9
|Total Norm: 4.9470e+04 |Residual: 4.2836e+04 |A: 2.4745e+04| Relative Norm : 1.5729e+01
Arc-Length Step 77 :
Iteration: 0
|Total Norm: 9.5156e+02 |Residual: 9.5156e+02 |A: 1.1482e-11| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.5822e+01 |Residual: 1.5524e+01 |A: 3.0587e+00| Relative Norm : 1.6628e-02
Iteration: 2
|Total Norm: 7.8414e+01 |Residual: 6.7572e+01 |A: 3.9784e+01| Relative Norm : 8.2406e-02
Iteration: 3
|Total Norm: 1.9561e+00 |Residual: 1.2632e+00 |A: 1.4936e+00| Relative Norm : 2.0557e-03
Iteration: 4
|Total Norm: 3.8047e-01 |Residual: 3.3365e-01 |A: 1.8284e-01| Relative Norm : 3.9984e-04
Iteration: 5
|Total Norm: 1.3471e-04 |Residual: 1.3125e-04 |A: 3.0317e-05| Relative Norm : 1.4156e-07
Iteration: 6
|Total Norm: 1.5681e-09 |Residual: 1.4358e-09 |A: 6.3034e-10| Relative Norm : 1.6480e-12
Arc-Length Step 78 :
Iteration: 0
|Total Norm: 1.6576e+03 |Residual: 1.6576e+03 |A: 6.3062e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 3.9687e+01 |Residual: 3.6700e+01 |A: 1.5106e+01| Relative Norm : 2.3942e-02
Iteration: 2
|Total Norm: 5.8985e+02 |Residual: 5.0234e+02 |A: 3.0916e+02| Relative Norm : 3.5584e-01
Iteration: 3
|Total Norm: 2.9956e+03 |Residual: 2.1368e+03 |A: 2.0994e+03| Relative Norm : 1.8071e+00
Iteration: 4
|Total Norm: 2.5154e+05 |Residual: 1.2464e+05 |A: 2.1849e+05| Relative Norm : 1.5175e+02
Iteration: 5
|Total Norm: 8.2688e+05 |Residual: 8.0810e+05 |A: 1.7526e+05| Relative Norm : 4.9883e+02
Iteration: 6
|Total Norm: 1.1524e+06 |Residual: 1.1503e+06 |A: 6.9506e+04| Relative Norm : 6.9518e+02
Iteration: 7
|Total Norm: 4.0887e+07 |Residual: 4.0884e+07 |A: 4.5843e+05| Relative Norm : 2.4666e+04
Iteration: 8
|Total Norm: 1.7002e+07 |Residual: 1.6998e+07 |A: 3.9179e+05| Relative Norm : 1.0257e+04
Iteration: 9
|Total Norm: 4.4119e+06 |Residual: 4.3417e+06 |A: 7.8347e+05| Relative Norm : 2.6615e+03
Arc-Length Step 78 :
Iteration: 0
|Total Norm: 5.8967e+02 |Residual: 5.8967e+02 |A: 1.5781e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 8.7962e+00 |Residual: 8.7176e+00 |A: 1.1733e+00| Relative Norm : 1.4917e-02
Iteration: 2
|Total Norm: 1.4478e+01 |Residual: 1.2774e+01 |A: 6.8153e+00| Relative Norm : 2.4553e-02
Iteration: 3
|Total Norm: 4.6672e-01 |Residual: 4.4358e-01 |A: 1.4514e-01| Relative Norm : 7.9149e-04
Iteration: 4
|Total Norm: 6.0722e-03 |Residual: 4.6025e-03 |A: 3.9609e-03| Relative Norm : 1.0298e-05
Iteration: 5
|Total Norm: 3.6703e-07 |Residual: 3.5392e-07 |A: 9.7220e-08| Relative Norm : 6.2243e-10
Arc-Length Step 79 :
Iteration: 0
|Total Norm: 5.8094e+02 |Residual: 5.8094e+02 |A: 9.7220e-08| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 8.1698e+00 |Residual: 7.8517e+00 |A: 2.2575e+00| Relative Norm : 1.4063e-02
Iteration: 2
|Total Norm: 3.9938e+00 |Residual: 2.2974e+00 |A: 3.2669e+00| Relative Norm : 6.8747e-03
Iteration: 3
|Total Norm: 1.3646e-01 |Residual: 1.3214e-01 |A: 3.4077e-02| Relative Norm : 2.3490e-04
Iteration: 4
|Total Norm: 2.9952e-05 |Residual: 2.7109e-05 |A: 1.2736e-05| Relative Norm : 5.1557e-08
Iteration: 5
|Total Norm: 3.3289e-10 |Residual: 3.3168e-10 |A: 2.8336e-11| Relative Norm : 5.7301e-13
Arc-Length Step 80 :
Iteration: 0
|Total Norm: 2.1176e+03 |Residual: 2.1176e+03 |A: 1.1448e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.8537e+03 |Residual: 9.5928e+02 |A: 1.5862e+03| Relative Norm : 8.7536e-01
Iteration: 2
|Total Norm: 4.5942e+06 |Residual: 4.5933e+06 |A: 9.2658e+04| Relative Norm : 2.1695e+03
Iteration: 3
|Total Norm: 1.3750e+07 |Residual: 1.3711e+07 |A: 1.0451e+06| Relative Norm : 6.4933e+03
Iteration: 4
|Total Norm: 3.7552e+07 |Residual: 3.7547e+07 |A: 6.2880e+05| Relative Norm : 1.7733e+04
Iteration: 5
|Total Norm: 1.8196e+09 |Residual: 1.7895e+09 |A: 3.2998e+08| Relative Norm : 8.5928e+05
Iteration: 6
|Total Norm: 9.0854e+08 |Residual: 9.0396e+08 |A: 9.1067e+07| Relative Norm : 4.2904e+05
Iteration: 7
|Total Norm: 1.7715e+12 |Residual: 1.7715e+12 |A: 9.1522e+09| Relative Norm : 8.3656e+08
Iteration: 8
|Total Norm: 1.4889e+13 |Residual: 1.4884e+13 |A: 3.8681e+11| Relative Norm : 7.0311e+09
Iteration: 9
|Total Norm: 3.3292e+11 |Residual: 3.0008e+11 |A: 1.4418e+11| Relative Norm : 1.5721e+08
Arc-Length Step 80 :
Iteration: 0
|Total Norm: 6.5735e+02 |Residual: 6.5735e+02 |A: 2.8791e-11| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 8.9400e+00 |Residual: 8.9155e+00 |A: 6.6130e-01| Relative Norm : 1.3600e-02
Iteration: 2
|Total Norm: 1.6187e+01 |Residual: 8.5410e+00 |A: 1.3750e+01| Relative Norm : 2.4625e-02
Iteration: 3
|Total Norm: 1.8093e+00 |Residual: 1.7278e+00 |A: 5.3673e-01| Relative Norm : 2.7524e-03
Iteration: 4
|Total Norm: 5.9619e-03 |Residual: 5.8695e-03 |A: 1.0457e-03| Relative Norm : 9.0696e-06
Iteration: 5
|Total Norm: 1.2192e-06 |Residual: 7.0932e-07 |A: 9.9165e-07| Relative Norm : 1.8548e-09
Iteration: 6
|Total Norm: 3.0779e-10 |Residual: 3.0779e-10 |A: 1.4211e-14| Relative Norm : 4.6822e-13
Arc-Length Step 81 :
Iteration: 0
|Total Norm: 6.0749e+02 |Residual: 6.0749e+02 |A: 2.4158e-13| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 7.0849e+00 |Residual: 7.0807e+00 |A: 2.4388e-01| Relative Norm : 1.1663e-02
Iteration: 2
|Total Norm: 5.8468e+00 |Residual: 3.4504e+00 |A: 4.7201e+00| Relative Norm : 9.6245e-03
Iteration: 3
|Total Norm: 2.1630e-01 |Residual: 2.0500e-01 |A: 6.9000e-02| Relative Norm : 3.5605e-04
Iteration: 4
|Total Norm: 8.3907e-05 |Residual: 4.9195e-05 |A: 6.7972e-05| Relative Norm : 1.3812e-07
Iteration: 5
|Total Norm: 3.8335e-10 |Residual: 3.8303e-10 |A: 1.5575e-11| Relative Norm : 6.3104e-13
Arc-Length Step 82 :
Iteration: 0
|Total Norm: 1.6169e+03 |Residual: 1.6169e+03 |A: 6.3153e-11| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 5.8402e+04 |Residual: 5.6068e+04 |A: 1.6348e+04| Relative Norm : 3.6119e+01
Iteration: 2
|Total Norm: 1.1238e+05 |Residual: 7.1059e+04 |A: 8.7065e+04| Relative Norm : 6.9503e+01
Iteration: 3
|Total Norm: 2.6274e+04 |Residual: 4.7288e+03 |A: 2.5845e+04| Relative Norm : 1.6249e+01
Iteration: 4
|Total Norm: 1.8964e+05 |Residual: 1.0829e+05 |A: 1.5568e+05| Relative Norm : 1.1728e+02
Iteration: 5
|Total Norm: 7.0486e+05 |Residual: 6.8719e+05 |A: 1.5684e+05| Relative Norm : 4.3593e+02
Iteration: 6
|Total Norm: 1.6830e+05 |Residual: 1.0076e+05 |A: 1.3481e+05| Relative Norm : 1.0409e+02
Iteration: 7
|Total Norm: 2.1350e+05 |Residual: 1.8724e+05 |A: 1.0259e+05| Relative Norm : 1.3204e+02
Iteration: 8
|Total Norm: 5.4067e+06 |Residual: 5.4060e+06 |A: 8.6683e+04| Relative Norm : 3.3438e+03
Iteration: 9
|Total Norm: 1.1003e+07 |Residual: 1.0989e+07 |A: 5.6635e+05| Relative Norm : 6.8050e+03
Arc-Length Step 82 :
Iteration: 0
|Total Norm: 5.0750e+02 |Residual: 5.0750e+02 |A: 1.5532e-11| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 5.1589e+00 |Residual: 5.1560e+00 |A: 1.7302e-01| Relative Norm : 1.0165e-02
Iteration: 2
|Total Norm: 3.5901e+00 |Residual: 2.9586e+00 |A: 2.0336e+00| Relative Norm : 7.0740e-03
Iteration: 3
|Total Norm: 3.8142e-02 |Residual: 3.5789e-02 |A: 1.3189e-02| Relative Norm : 7.5157e-05
Iteration: 4
|Total Norm: 1.6513e-05 |Residual: 1.2443e-05 |A: 1.0855e-05| Relative Norm : 3.2537e-08
Iteration: 5
|Total Norm: 3.1368e-10 |Residual: 3.1368e-10 |A: 8.2423e-13| Relative Norm : 6.1809e-13
Arc-Length Step 83 :
Iteration: 0
|Total Norm: 4.2059e+02 |Residual: 4.2059e+02 |A: 6.9633e-13| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 3.8830e+00 |Residual: 3.8809e+00 |A: 1.2711e-01| Relative Norm : 9.2323e-03
Iteration: 2
|Total Norm: 2.4460e+00 |Residual: 2.2278e+00 |A: 1.0100e+00| Relative Norm : 5.8158e-03
Iteration: 3
|Total Norm: 8.9309e-03 |Residual: 8.3003e-03 |A: 3.2961e-03| Relative Norm : 2.1234e-05
Iteration: 4
|Total Norm: 2.2962e-06 |Residual: 1.9867e-06 |A: 1.1512e-06| Relative Norm : 5.4595e-09
Iteration: 5
|Total Norm: 3.3141e-10 |Residual: 3.3141e-10 |A: 4.2633e-14| Relative Norm : 7.8798e-13
Arc-Length Step 84 :
Iteration: 0
|Total Norm: 1.1201e+03 |Residual: 1.1201e+03 |A: 4.5475e-13| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.5454e+01 |Residual: 1.5324e+01 |A: 2.0042e+00| Relative Norm : 1.3797e-02
Iteration: 2
|Total Norm: 7.1956e+00 |Residual: 6.5275e+00 |A: 3.0279e+00| Relative Norm : 6.4239e-03
Iteration: 3
|Total Norm: 1.4307e-02 |Residual: 1.1911e-02 |A: 7.9267e-03| Relative Norm : 1.2773e-05
Iteration: 4
|Total Norm: 1.2936e-05 |Residual: 1.1757e-05 |A: 5.3962e-06| Relative Norm : 1.1549e-08
Iteration: 5
|Total Norm: 3.0998e-10 |Residual: 3.0998e-10 |A: -5.6843e-14| Relative Norm : 2.7673e-13
Arc-Length Step 85 :
Iteration: 0
|Total Norm: 4.1908e+03 |Residual: 4.1908e+03 |A: 0.0000e+00| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.1571e+02 |Residual: 1.0167e+02 |A: 5.5247e+01| Relative Norm : 2.7610e-02
Iteration: 2
|Total Norm: 9.2058e+01 |Residual: 8.8829e+01 |A: 2.4168e+01| Relative Norm : 2.1966e-02
Iteration: 3
|Total Norm: 6.3743e+01 |Residual: 6.2125e+01 |A: 1.4274e+01| Relative Norm : 1.5210e-02
Iteration: 4
|Total Norm: 1.1867e+02 |Residual: 1.1644e+02 |A: 2.2877e+01| Relative Norm : 2.8316e-02
Iteration: 5
|Total Norm: 4.4061e+03 |Residual: 4.3631e+03 |A: 6.1396e+02| Relative Norm : 1.0514e+00
Iteration: 6
|Total Norm: 3.9072e+02 |Residual: 3.0399e+02 |A: 2.4547e+02| Relative Norm : 9.3231e-02
Iteration: 7
|Total Norm: 2.7093e+08 |Residual: 2.7022e+08 |A: 1.9644e+07| Relative Norm : 6.4648e+04
Iteration: 8
|Total Norm: 8.3647e+09 |Residual: 8.3645e+09 |A: 5.6820e+07| Relative Norm : 1.9959e+06
Iteration: 9
|Total Norm: 4.1778e+10 |Residual: 4.1778e+10 |A: 1.2212e+08| Relative Norm : 9.9689e+06
Arc-Length Step 85 :
Iteration: 0
|Total Norm: 1.2497e+03 |Residual: 1.2497e+03 |A: -3.9790e-13| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.6632e+01 |Residual: 1.6384e+01 |A: 2.8619e+00| Relative Norm : 1.3309e-02
Iteration: 2
|Total Norm: 6.0862e+00 |Residual: 5.6858e+00 |A: 2.1712e+00| Relative Norm : 4.8702e-03
Iteration: 3
|Total Norm: 6.2503e-03 |Residual: 4.5521e-03 |A: 4.2830e-03| Relative Norm : 5.0015e-06
Iteration: 4
|Total Norm: 1.1220e-06 |Residual: 1.0251e-06 |A: 4.5594e-07| Relative Norm : 8.9779e-10
Iteration: 5
|Total Norm: 3.7994e-10 |Residual: 3.7994e-10 |A: -5.6843e-14| Relative Norm : 3.0403e-13
Arc-Length Step 86 :
Iteration: 0
|Total Norm: 1.0129e+03 |Residual: 1.0129e+03 |A: -1.7053e-13| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 8.7694e+00 |Residual: 8.5773e+00 |A: 1.8253e+00| Relative Norm : 8.6579e-03
Iteration: 2
|Total Norm: 2.5430e+00 |Residual: 2.4968e+00 |A: 4.8261e-01| Relative Norm : 2.5107e-03
Iteration: 3
|Total Norm: 3.1608e-04 |Residual: 2.1262e-04 |A: 2.3388e-04| Relative Norm : 3.1207e-07
Iteration: 4
|Total Norm: 2.0345e-09 |Residual: 2.0227e-09 |A: 2.1817e-10| Relative Norm : 2.0086e-12
Arc-Length Step 87 :
Iteration: 0
|Total Norm: 2.8503e+03 |Residual: 2.8503e+03 |A: 8.7357e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.4652e+02 |Residual: 2.2643e+02 |A: 9.7486e+01| Relative Norm : 8.6490e-02
Iteration: 2
|Total Norm: 7.5580e+03 |Residual: 7.4250e+03 |A: 1.4115e+03| Relative Norm : 2.6516e+00
Iteration: 3
|Total Norm: 1.5190e+04 |Residual: 1.5019e+04 |A: 2.2738e+03| Relative Norm : 5.3292e+00
Iteration: 4
|Total Norm: 1.4102e+05 |Residual: 7.6003e+04 |A: 1.1879e+05| Relative Norm : 4.9475e+01
Iteration: 5
|Total Norm: 4.0718e+05 |Residual: 4.0536e+05 |A: 3.8519e+04| Relative Norm : 1.4286e+02
Iteration: 6
|Total Norm: 3.1354e+05 |Residual: 1.7961e+05 |A: 2.5700e+05| Relative Norm : 1.1000e+02
Iteration: 7
|Total Norm: 2.4480e+07 |Residual: 2.4468e+07 |A: 7.7150e+05| Relative Norm : 8.5886e+03
Iteration: 8
|Total Norm: 5.6474e+07 |Residual: 5.6451e+07 |A: 1.6118e+06| Relative Norm : 1.9813e+04
Iteration: 9
|Total Norm: 1.3182e+09 |Residual: 1.3182e+09 |A: 5.4055e+06| Relative Norm : 4.6249e+05
Arc-Length Step 87 :
Iteration: 0
|Total Norm: 8.6803e+02 |Residual: 8.6803e+02 |A: 2.1822e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 5.8848e+00 |Residual: 5.6940e+00 |A: 1.4860e+00| Relative Norm : 6.7795e-03
Iteration: 2
|Total Norm: 1.3210e+00 |Residual: 1.3070e+00 |A: 1.9168e-01| Relative Norm : 1.5219e-03
Iteration: 3
|Total Norm: 7.1812e-05 |Residual: 5.9879e-05 |A: 3.9641e-05| Relative Norm : 8.2729e-08
Iteration: 4
|Total Norm: 8.4718e-10 |Residual: 8.4032e-10 |A: 1.0760e-10| Relative Norm : 9.7598e-13
Arc-Length Step 88 :
Iteration: 0
|Total Norm: 7.7080e+02 |Residual: 7.7080e+02 |A: 1.0760e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 4.4280e+00 |Residual: 4.2345e+00 |A: 1.2948e+00| Relative Norm : 5.7447e-03
Iteration: 2
|Total Norm: 7.5723e-01 |Residual: 7.5001e-01 |A: 1.0432e-01| Relative Norm : 9.8239e-04
Iteration: 3
|Total Norm: 2.4880e-05 |Residual: 2.1849e-05 |A: 1.1900e-05| Relative Norm : 3.2278e-08
Iteration: 4
|Total Norm: 3.9722e-10 |Residual: 3.9694e-10 |A: 1.4836e-11| Relative Norm : 5.1533e-13
Arc-Length Step 89 :
Iteration: 0
|Total Norm: 2.2747e+03 |Residual: 2.2747e+03 |A: 5.8435e-11| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 3.9019e+01 |Residual: 3.2659e+01 |A: 2.1352e+01| Relative Norm : 1.7154e-02
Iteration: 2
|Total Norm: 1.0079e+01 |Residual: 8.0968e+00 |A: 6.0031e+00| Relative Norm : 4.4311e-03
Iteration: 3
|Total Norm: 6.1951e-02 |Residual: 5.9687e-02 |A: 1.6593e-02| Relative Norm : 2.7235e-05
Iteration: 4
|Total Norm: 1.0158e-04 |Residual: 9.9127e-05 |A: 2.2170e-05| Relative Norm : 4.4655e-08
Iteration: 5
|Total Norm: 3.6466e-10 |Residual: 3.6466e-10 |A: 1.8190e-12| Relative Norm : 1.6031e-13
Arc-Length Step 90 :
Iteration: 0
|Total Norm: 2.8074e+03 |Residual: 2.8074e+03 |A: 1.8190e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 7.0100e+01 |Residual: 5.0586e+01 |A: 4.8529e+01| Relative Norm : 2.4969e-02
Iteration: 2
|Total Norm: 2.7214e+01 |Residual: 2.0205e+01 |A: 1.8232e+01| Relative Norm : 9.6937e-03
Iteration: 3
|Total Norm: 7.3249e-01 |Residual: 7.0867e-01 |A: 1.8528e-01| Relative Norm : 2.6091e-04
Iteration: 4
|Total Norm: 7.6275e-03 |Residual: 7.4312e-03 |A: 1.7194e-03| Relative Norm : 2.7169e-06
Iteration: 5
|Total Norm: 1.0831e-07 |Residual: 1.0561e-07 |A: 2.4042e-08| Relative Norm : 3.8580e-11
Arc-Length Step 91 :
Iteration: 0
|Total Norm: 2.4607e+03 |Residual: 2.4607e+03 |A: 2.4042e-08| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 6.3981e+01 |Residual: 3.6140e+01 |A: 5.2796e+01| Relative Norm : 2.6001e-02
Iteration: 2
|Total Norm: 2.0478e+01 |Residual: 5.2041e+00 |A: 1.9805e+01| Relative Norm : 8.3217e-03
Iteration: 3
|Total Norm: 1.1976e-01 |Residual: 8.5854e-02 |A: 8.3497e-02| Relative Norm : 4.8669e-05
Iteration: 4
|Total Norm: 1.9274e-05 |Residual: 1.7994e-05 |A: 6.9065e-06| Relative Norm : 7.8326e-09
Iteration: 5
|Total Norm: 5.8266e-10 |Residual: 5.8266e-10 |A: 4.5475e-13| Relative Norm : 2.3678e-13
Arc-Length Step 92 :
Iteration: 0
|Total Norm: 2.2020e+03 |Residual: 2.2020e+03 |A: 6.8212e-13| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.8515e+04 |Residual: 1.8257e+04 |A: 3.0820e+03| Relative Norm : 8.4081e+00
Iteration: 2
|Total Norm: 5.1979e+04 |Residual: 5.1740e+04 |A: 4.9818e+03| Relative Norm : 2.3605e+01
Iteration: 3
|Total Norm: 5.3485e+04 |Residual: 4.9208e+04 |A: 2.0956e+04| Relative Norm : 2.4289e+01
Iteration: 4
|Total Norm: 4.8649e+04 |Residual: 8.3060e+03 |A: 4.7934e+04| Relative Norm : 2.2093e+01
Iteration: 5
|Total Norm: 2.8467e+04 |Residual: 2.1054e+04 |A: 1.9160e+04| Relative Norm : 1.2928e+01
Iteration: 6
|Total Norm: 6.8520e+04 |Residual: 1.6563e+04 |A: 6.6488e+04| Relative Norm : 3.1117e+01
Iteration: 7
|Total Norm: 3.0292e+08 |Residual: 3.0264e+08 |A: 1.3112e+07| Relative Norm : 1.3756e+05
Iteration: 8
|Total Norm: 2.4131e+09 |Residual: 2.4116e+09 |A: 8.3583e+07| Relative Norm : 1.0958e+06
Iteration: 9
|Total Norm: 5.4564e+09 |Residual: 5.4555e+09 |A: 9.4932e+07| Relative Norm : 2.4779e+06
Arc-Length Step 92 :
Iteration: 0
|Total Norm: 7.7177e+02 |Residual: 7.7177e+02 |A: 0.0000e+00| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 5.1435e+00 |Residual: 4.6063e+00 |A: 2.2887e+00| Relative Norm : 6.6646e-03
Iteration: 2
|Total Norm: 3.1949e-01 |Residual: 1.8953e-01 |A: 2.5721e-01| Relative Norm : 4.1398e-04
Iteration: 3
|Total Norm: 6.2027e-05 |Residual: 2.9260e-05 |A: 5.4692e-05| Relative Norm : 8.0370e-08
Iteration: 4
|Total Norm: 4.6533e-10 |Residual: 4.6531e-10 |A: 4.3201e-12| Relative Norm : 6.0294e-13
Arc-Length Step 93 :
Iteration: 0
|Total Norm: 4.6646e+02 |Residual: 4.6646e+02 |A: 4.5475e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.1662e+00 |Residual: 2.0569e+00 |A: 6.7947e-01| Relative Norm : 4.6440e-03
Iteration: 2
|Total Norm: 9.8256e-02 |Residual: 8.7617e-02 |A: 4.4468e-02| Relative Norm : 2.1064e-04
Iteration: 3
|Total Norm: 2.0802e-06 |Residual: 1.2022e-06 |A: 1.6976e-06| Relative Norm : 4.4595e-09
Iteration: 4
|Total Norm: 5.8178e-10 |Residual: 5.8178e-10 |A: 0.0000e+00| Relative Norm : 1.2472e-12
Arc-Length Step 94 :
Iteration: 0
|Total Norm: 1.4128e+03 |Residual: 1.4128e+03 |A: -4.5475e-13| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 7.1924e+02 |Residual: 6.9925e+02 |A: 1.6839e+02| Relative Norm : 5.0908e-01
Iteration: 2
|Total Norm: 7.7649e+02 |Residual: 7.6011e+02 |A: 1.5863e+02| Relative Norm : 5.4960e-01
Iteration: 3
|Total Norm: 1.9017e+04 |Residual: 1.4267e+04 |A: 1.2573e+04| Relative Norm : 1.3460e+01
Iteration: 4
|Total Norm: 4.7816e+03 |Residual: 1.7762e+03 |A: 4.4394e+03| Relative Norm : 3.3844e+00
Iteration: 5
|Total Norm: 3.3039e+07 |Residual: 3.2807e+07 |A: 3.9080e+06| Relative Norm : 2.3385e+04
Iteration: 6
|Total Norm: 6.7129e+07 |Residual: 3.8505e+07 |A: 5.4987e+07| Relative Norm : 4.7514e+04
Iteration: 7
|Total Norm: 4.1551e+07 |Residual: 3.8689e+07 |A: 1.5153e+07| Relative Norm : 2.9410e+04
Iteration: 8
|Total Norm: 2.7109e+10 |Residual: 2.7108e+10 |A: 2.5274e+08| Relative Norm : 1.9188e+07
Iteration: 9
|Total Norm: 6.7662e+09 |Residual: 6.7495e+09 |A: 4.7572e+08| Relative Norm : 4.7892e+06
Arc-Length Step 94 :
Iteration: 0
|Total Norm: 4.4628e+02 |Residual: 4.4628e+02 |A: 0.0000e+00| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.0708e+00 |Residual: 1.9808e+00 |A: 6.0360e-01| Relative Norm : 4.6401e-03
Iteration: 2
|Total Norm: 9.1695e-02 |Residual: 8.2217e-02 |A: 4.0600e-02| Relative Norm : 2.0547e-04
Iteration: 3
|Total Norm: 1.7536e-06 |Residual: 1.0268e-06 |A: 1.4215e-06| Relative Norm : 3.9294e-09
Iteration: 4
|Total Norm: 6.4176e-10 |Residual: 6.4176e-10 |A: 5.6843e-14| Relative Norm : 1.4380e-12
Arc-Length Step 95 :
Iteration: 0
|Total Norm: 4.2760e+02 |Residual: 4.2760e+02 |A: -3.4106e-13| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.9727e+00 |Residual: 1.9006e+00 |A: 5.2813e-01| Relative Norm : 4.6134e-03
Iteration: 2
|Total Norm: 8.6526e-02 |Residual: 7.8484e-02 |A: 3.6429e-02| Relative Norm : 2.0235e-04
Iteration: 3
|Total Norm: 1.4480e-06 |Residual: 8.7551e-07 |A: 1.1533e-06| Relative Norm : 3.3864e-09
Iteration: 4
|Total Norm: 4.4496e-10 |Residual: 4.4496e-10 |A: -5.6843e-14| Relative Norm : 1.0406e-12
Arc-Length Step 96 :
Iteration: 0
|Total Norm: 1.2927e+03 |Residual: 1.2927e+03 |A: 1.3642e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.1666e+01 |Residual: 1.7993e+01 |A: 1.2069e+01| Relative Norm : 1.6760e-02
Iteration: 2
|Total Norm: 4.6840e+00 |Residual: 2.3540e+00 |A: 4.0495e+00| Relative Norm : 3.6233e-03
Iteration: 3
|Total Norm: 4.7796e-03 |Residual: 3.0674e-03 |A: 3.6654e-03| Relative Norm : 3.6973e-06
Iteration: 4
|Total Norm: 3.9260e-07 |Residual: 3.7677e-07 |A: 1.1038e-07| Relative Norm : 3.0370e-10
Arc-Length Step 97 :
Iteration: 0
|Total Norm: 1.6645e+03 |Residual: 1.6645e+03 |A: 1.1038e-07| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 4.6279e+01 |Residual: 3.4267e+01 |A: 3.1104e+01| Relative Norm : 2.7803e-02
Iteration: 2
|Total Norm: 1.6937e+01 |Residual: 7.0879e+00 |A: 1.5383e+01| Relative Norm : 1.0175e-02
Iteration: 3
|Total Norm: 6.5571e-02 |Residual: 3.8416e-02 |A: 5.3139e-02| Relative Norm : 3.9393e-05
Iteration: 4
|Total Norm: 5.0342e-05 |Residual: 4.8214e-05 |A: 1.4483e-05| Relative Norm : 3.0244e-08
Iteration: 5
|Total Norm: 7.5226e-10 |Residual: 7.5226e-10 |A: 4.5475e-13| Relative Norm : 4.5194e-13
Arc-Length Step 98 :
Iteration: 0
|Total Norm: 1.5375e+03 |Residual: 1.5375e+03 |A: 2.2737e-13| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 3.4549e+01 |Residual: 2.8538e+01 |A: 1.9474e+01| Relative Norm : 2.2471e-02
Iteration: 2
|Total Norm: 1.0427e+01 |Residual: 4.8148e+00 |A: 9.2490e+00| Relative Norm : 6.7820e-03
Iteration: 3
|Total Norm: 2.4952e-02 |Residual: 1.5397e-02 |A: 1.9635e-02| Relative Norm : 1.6229e-05
Iteration: 4
|Total Norm: 8.9287e-06 |Residual: 8.5284e-06 |A: 2.6434e-06| Relative Norm : 5.8074e-09
Iteration: 5
|Total Norm: 6.7595e-10 |Residual: 6.7595e-10 |A: 0.0000e+00| Relative Norm : 4.3965e-13
Arc-Length Step 99 :
Iteration: 0
|Total Norm: 1.4319e+03 |Residual: 1.4319e+03 |A: -2.2737e-13| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.5565e+01 |Residual: 2.3036e+01 |A: 1.1086e+01| Relative Norm : 1.7854e-02
Iteration: 2
|Total Norm: 5.7256e+00 |Residual: 2.9019e+00 |A: 4.9358e+00| Relative Norm : 3.9986e-03
Iteration: 3
|Total Norm: 7.5600e-03 |Residual: 4.9475e-03 |A: 5.7162e-03| Relative Norm : 5.2797e-06
Iteration: 4
|Total Norm: 9.9030e-07 |Residual: 9.4421e-07 |A: 2.9861e-07| Relative Norm : 6.9160e-10
Arc-Length Step 100 :
Iteration: 0
|Total Norm: 1.3457e+03 |Residual: 1.3457e+03 |A: 2.9861e-07| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.9468e+01 |Residual: 1.8594e+01 |A: 5.7664e+00| Relative Norm : 1.4467e-02
Iteration: 2
|Total Norm: 2.8329e+00 |Residual: 1.5769e+00 |A: 2.3534e+00| Relative Norm : 2.1052e-03
Iteration: 3
|Total Norm: 1.9223e-03 |Residual: 1.3697e-03 |A: 1.3487e-03| Relative Norm : 1.4285e-06
Iteration: 4
|Total Norm: 7.6724e-08 |Residual: 7.3103e-08 |A: 2.3291e-08| Relative Norm : 5.7014e-11
Arc-Length Step 101 :
Iteration: 0
|Total Norm: 1.2768e+03 |Residual: 1.2768e+03 |A: 2.3290e-08| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.5652e+01 |Residual: 1.5421e+01 |A: 2.6776e+00| Relative Norm : 1.2259e-02
Iteration: 2
|Total Norm: 1.2274e+00 |Residual: 7.6462e-01 |A: 9.6018e-01| Relative Norm : 9.6137e-04
Iteration: 3
|Total Norm: 4.1805e-04 |Residual: 3.3729e-04 |A: 2.4699e-04| Relative Norm : 3.2743e-07
Iteration: 4
|Total Norm: 4.2542e-09 |Residual: 4.0655e-09 |A: 1.2531e-09| Relative Norm : 3.3320e-12
Arc-Length Step 102 :
Iteration: 0
|Total Norm: 1.2230e+03 |Residual: 1.2230e+03 |A: 1.2533e-09| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.3486e+01 |Residual: 1.3445e+01 |A: 1.0537e+00| Relative Norm : 1.1027e-02
Iteration: 2
|Total Norm: 4.3661e-01 |Residual: 3.2865e-01 |A: 2.8743e-01| Relative Norm : 3.5699e-04
Iteration: 3
|Total Norm: 8.0929e-05 |Residual: 7.4536e-05 |A: 3.1525e-05| Relative Norm : 6.6171e-08
Iteration: 4
|Total Norm: 8.6876e-10 |Residual: 8.6778e-10 |A: 4.1155e-11| Relative Norm : 7.1034e-13
Arc-Length Step 103 :
Iteration: 0
|Total Norm: 1.1826e+03 |Residual: 1.1826e+03 |A: 4.1382e-11| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.2492e+01 |Residual: 1.2487e+01 |A: 3.6986e-01| Relative Norm : 1.0563e-02
Iteration: 2
|Total Norm: 1.5984e-01 |Residual: 1.5549e-01 |A: 3.7036e-02| Relative Norm : 1.3515e-04
Iteration: 3
|Total Norm: 1.6396e-05 |Residual: 1.6072e-05 |A: 3.2442e-06| Relative Norm : 1.3864e-08
Iteration: 4
|Total Norm: 8.1005e-10 |Residual: 8.1005e-10 |A: 4.5475e-13| Relative Norm : 6.8495e-13
Arc-Length Step 104 :
Iteration: 0
|Total Norm: 1.1541e+03 |Residual: 1.1541e+03 |A: 1.1369e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.2335e+01 |Residual: 1.2331e+01 |A: 3.0545e-01| Relative Norm : 1.0688e-02
Iteration: 2
|Total Norm: 1.2226e-01 |Residual: 1.1473e-01 |A: 4.2235e-02| Relative Norm : 1.0594e-04
Iteration: 3
|Total Norm: 2.1839e-06 |Residual: 2.0696e-06 |A: 6.9725e-07| Relative Norm : 1.8923e-09
Iteration: 4
|Total Norm: 7.7048e-10 |Residual: 7.7048e-10 |A: 0.0000e+00| Relative Norm : 6.6762e-13
Arc-Length Step 105 :
Iteration: 0
|Total Norm: 1.1360e+03 |Residual: 1.1360e+03 |A: -4.5475e-13| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.2778e+01 |Residual: 1.2760e+01 |A: 6.7208e-01| Relative Norm : 1.1248e-02
Iteration: 2
|Total Norm: 2.7971e-01 |Residual: 1.7875e-01 |A: 2.1514e-01| Relative Norm : 2.4622e-04
Iteration: 3
|Total Norm: 1.2718e-05 |Residual: 6.9100e-06 |A: 1.0677e-05| Relative Norm : 1.1195e-08
Iteration: 4
|Total Norm: 6.4303e-10 |Residual: 6.4303e-10 |A: -2.2737e-13| Relative Norm : 5.6604e-13
Arc-Length Step 106 :
Iteration: 0
|Total Norm: 1.1275e+03 |Residual: 1.1275e+03 |A: -4.5475e-13| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.3645e+01 |Residual: 1.3578e+01 |A: 1.3528e+00| Relative Norm : 1.2102e-02
Iteration: 2
|Total Norm: 6.3616e-01 |Residual: 3.8355e-01 |A: 5.0753e-01| Relative Norm : 5.6423e-04
Iteration: 3
|Total Norm: 7.7781e-05 |Residual: 5.1422e-05 |A: 5.8359e-05| Relative Norm : 6.8987e-08
Iteration: 4
|Total Norm: 8.3038e-10 |Residual: 8.3038e-10 |A: 3.6380e-12| Relative Norm : 7.3650e-13
Arc-Length Step 107 :
Iteration: 0
|Total Norm: 1.1278e+03 |Residual: 1.1278e+03 |A: 3.6380e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.4790e+01 |Residual: 1.4617e+01 |A: 2.2551e+00| Relative Norm : 1.3114e-02
Iteration: 2
|Total Norm: 1.1202e+00 |Residual: 6.8919e-01 |A: 8.8309e-01| Relative Norm : 9.9330e-04
Iteration: 3
|Total Norm: 2.5030e-04 |Residual: 1.7790e-04 |A: 1.7606e-04| Relative Norm : 2.2194e-07
Iteration: 4
|Total Norm: 8.2850e-10 |Residual: 8.2731e-10 |A: 4.4338e-11| Relative Norm : 7.3464e-13
Arc-Length Step 108 :
Iteration: 0
|Total Norm: 1.1363e+03 |Residual: 1.1363e+03 |A: 4.5702e-11| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.6059e+01 |Residual: 1.5722e+01 |A: 3.2730e+00| Relative Norm : 1.4132e-02
Iteration: 2
|Total Norm: 1.6819e+00 |Residual: 1.0714e+00 |A: 1.2965e+00| Relative Norm : 1.4801e-03
Iteration: 3
|Total Norm: 5.8738e-04 |Residual: 4.4570e-04 |A: 3.8258e-04| Relative Norm : 5.1690e-07
Iteration: 4
|Total Norm: 1.2450e-09 |Residual: 1.1991e-09 |A: 3.3492e-10| Relative Norm : 1.0957e-12
Arc-Length Step 109 :
Iteration: 0
|Total Norm: 1.1530e+03 |Residual: 1.1530e+03 |A: 3.3606e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.7274e+01 |Residual: 1.6741e+01 |A: 4.2613e+00| Relative Norm : 1.4982e-02
Iteration: 2
|Total Norm: 2.2592e+00 |Residual: 1.5098e+00 |A: 1.6807e+00| Relative Norm : 1.9595e-03
Iteration: 3
|Total Norm: 1.1397e-03 |Residual: 9.3190e-04 |A: 6.5612e-04| Relative Norm : 9.8848e-07
Iteration: 4
|Total Norm: 5.3077e-09 |Residual: 4.9580e-09 |A: 1.8949e-09| Relative Norm : 4.6035e-12
Arc-Length Step 110 :
Iteration: 0
|Total Norm: 1.1777e+03 |Residual: 1.1777e+03 |A: 1.8947e-09| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.8248e+01 |Residual: 1.7539e+01 |A: 5.0370e+00| Relative Norm : 1.5494e-02
Iteration: 2
|Total Norm: 2.7868e+00 |Residual: 1.9886e+00 |A: 1.9524e+00| Relative Norm : 2.3663e-03
Iteration: 3
|Total Norm: 1.9731e-03 |Residual: 1.7447e-03 |A: 9.2154e-04| Relative Norm : 1.6754e-06
Iteration: 4
|Total Norm: 2.2870e-08 |Residual: 2.1267e-08 |A: 8.4099e-09| Relative Norm : 1.9419e-11
Arc-Length Step 111 :
Iteration: 0
|Total Norm: 1.2108e+03 |Residual: 1.2108e+03 |A: 8.4121e-09| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.8864e+01 |Residual: 1.8064e+01 |A: 5.4343e+00| Relative Norm : 1.5579e-02
Iteration: 2
|Total Norm: 3.2439e+00 |Residual: 2.5114e+00 |A: 2.0533e+00| Relative Norm : 2.6791e-03
Iteration: 3
|Total Norm: 3.2737e-03 |Residual: 3.0828e-03 |A: 1.1014e-03| Relative Norm : 2.7037e-06
Iteration: 4
|Total Norm: 7.9427e-08 |Residual: 7.3385e-08 |A: 3.0385e-08| Relative Norm : 6.5597e-11
Arc-Length Step 112 :
Iteration: 0
|Total Norm: 1.2532e+03 |Residual: 1.2532e+03 |A: 3.0386e-08| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.9226e+01 |Residual: 1.8447e+01 |A: 5.4202e+00| Relative Norm : 1.5342e-02
Iteration: 2
|Total Norm: 3.7095e+00 |Residual: 3.1098e+00 |A: 2.0224e+00| Relative Norm : 2.9601e-03
Iteration: 3
|Total Norm: 5.5063e-03 |Residual: 5.3670e-03 |A: 1.2304e-03| Relative Norm : 4.3938e-06
Iteration: 4
|Total Norm: 2.3000e-07 |Residual: 2.0982e-07 |A: 9.4215e-08| Relative Norm : 1.8353e-10
Arc-Length Step 113 :
Iteration: 0
|Total Norm: 1.3064e+03 |Residual: 1.3064e+03 |A: 9.4216e-08| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.9761e+01 |Residual: 1.9063e+01 |A: 5.2045e+00| Relative Norm : 1.5127e-02
Iteration: 2
|Total Norm: 4.3242e+00 |Residual: 3.8162e+00 |A: 2.0334e+00| Relative Norm : 3.3101e-03
Iteration: 3
|Total Norm: 9.4997e-03 |Residual: 9.3797e-03 |A: 1.5051e-03| Relative Norm : 7.2719e-06
Iteration: 4
|Total Norm: 6.1889e-07 |Residual: 5.5503e-07 |A: 2.7378e-07| Relative Norm : 4.7375e-10
Arc-Length Step 114 :
Iteration: 0
|Total Norm: 1.3731e+03 |Residual: 1.3731e+03 |A: 2.7378e-07| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.1083e+01 |Residual: 2.0436e+01 |A: 5.1847e+00| Relative Norm : 1.5354e-02
Iteration: 2
|Total Norm: 5.1640e+00 |Residual: 4.6339e+00 |A: 2.2790e+00| Relative Norm : 3.7607e-03
Iteration: 3
|Total Norm: 1.6283e-02 |Residual: 1.6135e-02 |A: 2.1959e-03| Relative Norm : 1.1858e-05
Iteration: 4
|Total Norm: 1.7499e-06 |Residual: 1.5480e-06 |A: 8.1598e-07| Relative Norm : 1.2744e-09
Iteration: 5
|Total Norm: 1.2077e-09 |Residual: 1.2077e-09 |A: -2.2737e-13| Relative Norm : 8.7953e-13
Arc-Length Step 115 :
Iteration: 0
|Total Norm: 1.4585e+03 |Residual: 1.4585e+03 |A: 9.0949e-13| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.3837e+01 |Residual: 2.3145e+01 |A: 5.6994e+00| Relative Norm : 1.6344e-02
Iteration: 2
|Total Norm: 6.3294e+00 |Residual: 5.6830e+00 |A: 2.7864e+00| Relative Norm : 4.3397e-03
Iteration: 3
|Total Norm: 2.6779e-02 |Residual: 2.6532e-02 |A: 3.6265e-03| Relative Norm : 1.8361e-05
Iteration: 4
|Total Norm: 5.5650e-06 |Residual: 4.8995e-06 |A: 2.6391e-06| Relative Norm : 3.8157e-09
Iteration: 5
|Total Norm: 1.2878e-09 |Residual: 1.2878e-09 |A: -2.2737e-13| Relative Norm : 8.8297e-13
Arc-Length Step 116 :
Iteration: 0
|Total Norm: 1.5710e+03 |Residual: 1.5710e+03 |A: -2.7285e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.9437e+01 |Residual: 2.8535e+01 |A: 7.2309e+00| Relative Norm : 1.8738e-02
Iteration: 2
|Total Norm: 8.9255e+00 |Residual: 7.9658e+00 |A: 4.0263e+00| Relative Norm : 5.6814e-03
Iteration: 3
|Total Norm: 4.6232e-02 |Residual: 4.5565e-02 |A: 7.8221e-03| Relative Norm : 2.9428e-05
Iteration: 4
|Total Norm: 2.4409e-05 |Residual: 2.1662e-05 |A: 1.1250e-05| Relative Norm : 1.5537e-08
Iteration: 5
|Total Norm: 1.2378e-09 |Residual: 1.2378e-09 |A: -2.2737e-13| Relative Norm : 7.8787e-13
Arc-Length Step 117 :
Iteration: 0
|Total Norm: 1.7270e+03 |Residual: 1.7270e+03 |A: 1.8190e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 4.2732e+01 |Residual: 4.0697e+01 |A: 1.3030e+01| Relative Norm : 2.4744e-02
Iteration: 2
|Total Norm: 1.9648e+01 |Residual: 1.6340e+01 |A: 1.0911e+01| Relative Norm : 1.1377e-02
Iteration: 3
|Total Norm: 1.4054e-01 |Residual: 1.3293e-01 |A: 4.5608e-02| Relative Norm : 8.1377e-05
Iteration: 4
|Total Norm: 2.9261e-04 |Residual: 2.6486e-04 |A: 1.2437e-04| Relative Norm : 1.6943e-07
Iteration: 5
|Total Norm: 1.1034e-09 |Residual: 1.1034e-09 |A: 1.3415e-11| Relative Norm : 6.3894e-13
Arc-Length Step 118 :
Iteration: 0
|Total Norm: 1.9595e+03 |Residual: 1.9595e+03 |A: 1.3415e-11| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 8.4834e+01 |Residual: 7.3323e+01 |A: 4.2667e+01| Relative Norm : 4.3293e-02
Iteration: 2
|Total Norm: 7.8484e+01 |Residual: 5.7025e+01 |A: 5.3926e+01| Relative Norm : 4.0052e-02
Iteration: 3
|Total Norm: 2.3587e+00 |Residual: 2.0995e+00 |A: 1.0748e+00| Relative Norm : 1.2037e-03
Iteration: 4
|Total Norm: 3.6679e-02 |Residual: 3.4008e-02 |A: 1.3741e-02| Relative Norm : 1.8718e-05
Iteration: 5
|Total Norm: 1.9669e-06 |Residual: 1.8976e-06 |A: 5.1779e-07| Relative Norm : 1.0038e-09
Iteration: 6
|Total Norm: 1.1236e-09 |Residual: 1.1236e-09 |A: 0.0000e+00| Relative Norm : 5.7340e-13
Arc-Length Step 119 :
Iteration: 0
|Total Norm: 2.3484e+03 |Residual: 2.3484e+03 |A: 0.0000e+00| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 3.6160e+02 |Residual: 2.4556e+02 |A: 2.6543e+02| Relative Norm : 1.5398e-01
Iteration: 2
|Total Norm: 9.5734e+02 |Residual: 7.3963e+02 |A: 6.0782e+02| Relative Norm : 4.0766e-01
Iteration: 3
|Total Norm: 1.9802e+02 |Residual: 1.5935e+02 |A: 1.1755e+02| Relative Norm : 8.4322e-02
Iteration: 4
|Total Norm: 3.3200e+03 |Residual: 3.2144e+03 |A: 8.3081e+02| Relative Norm : 1.4138e+00
Iteration: 5
|Total Norm: 1.3277e+05 |Residual: 8.4066e+04 |A: 1.0277e+05| Relative Norm : 5.6539e+01
Iteration: 6
|Total Norm: 4.8267e+05 |Residual: 4.7181e+05 |A: 1.0181e+05| Relative Norm : 2.0553e+02
Iteration: 7
|Total Norm: 8.5270e+06 |Residual: 8.5258e+06 |A: 1.4145e+05| Relative Norm : 3.6310e+03
Iteration: 8
|Total Norm: 7.6097e+08 |Residual: 7.5841e+08 |A: 6.2472e+07| Relative Norm : 3.2404e+05
Iteration: 9
|Total Norm: 9.4393e+08 |Residual: 9.4363e+08 |A: 2.3487e+07| Relative Norm : 4.0195e+05
Arc-Length Step 119 :
Iteration: 0
|Total Norm: 8.2947e+02 |Residual: 8.2947e+02 |A: -4.5475e-13| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 3.9542e+03 |Residual: 3.8319e+03 |A: 9.7598e+02| Relative Norm : 4.7672e+00
Iteration: 2
|Total Norm: 2.3641e+04 |Residual: 2.3159e+04 |A: 4.7500e+03| Relative Norm : 2.8502e+01
Iteration: 3
|Total Norm: 1.2561e+05 |Residual: 1.2016e+05 |A: 3.6577e+04| Relative Norm : 1.5143e+02
Iteration: 4
|Total Norm: 8.8500e+05 |Residual: 8.7917e+05 |A: 1.0137e+05| Relative Norm : 1.0669e+03
Iteration: 5
|Total Norm: 7.3854e+05 |Residual: 7.3786e+05 |A: 3.1534e+04| Relative Norm : 8.9037e+02
Iteration: 6
|Total Norm: 3.1200e+06 |Residual: 3.1188e+06 |A: 8.4837e+04| Relative Norm : 3.7614e+03
Iteration: 7
|Total Norm: 4.2294e+05 |Residual: 4.2156e+05 |A: 3.4199e+04| Relative Norm : 5.0989e+02
Iteration: 8
|Total Norm: 2.4520e+06 |Residual: 2.4173e+06 |A: 4.1082e+05| Relative Norm : 2.9561e+03
Iteration: 9
|Total Norm: 1.9932e+09 |Residual: 1.9931e+09 |A: 1.7933e+07| Relative Norm : 2.4030e+06
Arc-Length Step 119 :
Iteration: 0
|Total Norm: 1.5057e+02 |Residual: 1.5057e+02 |A: 2.6290e-13| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 5.5938e-01 |Residual: 5.5923e-01 |A: 1.3075e-02| Relative Norm : 3.7152e-03
Iteration: 2
|Total Norm: 1.9860e-02 |Residual: 1.6502e-02 |A: 1.1050e-02| Relative Norm : 1.3190e-04
Iteration: 3
|Total Norm: 2.0964e-06 |Residual: 1.3556e-06 |A: 1.5992e-06| Relative Norm : 1.3924e-08
Iteration: 4
|Total Norm: 9.7541e-10 |Residual: 9.7541e-10 |A: 3.5527e-14| Relative Norm : 6.4782e-12
Arc-Length Step 120 :
Iteration: 0
|Total Norm: 3.7544e+01 |Residual: 3.7544e+01 |A: 1.2079e-13| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 4.1584e-02 |Residual: 4.1516e-02 |A: 2.3717e-03| Relative Norm : 1.1076e-03
Iteration: 2
|Total Norm: 1.4402e-04 |Residual: 1.3005e-04 |A: 6.1859e-05| Relative Norm : 3.8360e-06
Iteration: 3
|Total Norm: 1.4541e-09 |Residual: 1.4532e-09 |A: 5.0232e-11| Relative Norm : 3.8730e-11
Arc-Length Step 121 :
Iteration: 0
|Total Norm: 1.1711e+02 |Residual: 1.1711e+02 |A: 2.0080e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 3.7107e-01 |Residual: 3.7075e-01 |A: 1.5401e-02| Relative Norm : 3.1686e-03
Iteration: 2
|Total Norm: 1.2324e-02 |Residual: 1.1007e-02 |A: 5.5427e-03| Relative Norm : 1.0523e-04
Iteration: 3
|Total Norm: 1.2818e-07 |Residual: 7.8292e-08 |A: 1.0149e-07| Relative Norm : 1.0945e-09
Arc-Length Step 122 :
Iteration: 0
|Total Norm: 5.0556e+02 |Residual: 5.0556e+02 |A: 4.0597e-07| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 6.2017e+00 |Residual: 6.1902e+00 |A: 3.7696e-01| Relative Norm : 1.2267e-02
Iteration: 2
|Total Norm: 2.9279e+00 |Residual: 2.1604e+00 |A: 1.9762e+00| Relative Norm : 5.7915e-03
Iteration: 3
|Total Norm: 4.1400e-03 |Residual: 2.6373e-03 |A: 3.1913e-03| Relative Norm : 8.1890e-06
Iteration: 4
|Total Norm: 1.0935e-07 |Residual: 1.0083e-07 |A: 4.2316e-08| Relative Norm : 2.1629e-10
Arc-Length Step 123 :
Iteration: 0
|Total Norm: 2.4958e+03 |Residual: 2.4958e+03 |A: 1.6926e-07| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 7.6508e+02 |Residual: 5.8510e+02 |A: 4.9295e+02| Relative Norm : 3.0655e-01
Iteration: 2
|Total Norm: 8.8860e+04 |Residual: 8.5984e+04 |A: 2.2428e+04| Relative Norm : 3.5604e+01
Iteration: 3
|Total Norm: 1.8802e+05 |Residual: 1.8697e+05 |A: 1.9825e+04| Relative Norm : 7.5332e+01
Iteration: 4
|Total Norm: 1.5995e+07 |Residual: 1.5975e+07 |A: 7.8961e+05| Relative Norm : 6.4086e+03
Iteration: 5
|Total Norm: 1.0663e+09 |Residual: 1.0660e+09 |A: 2.6176e+07| Relative Norm : 4.2723e+05
Iteration: 6
|Total Norm: 3.5549e+08 |Residual: 3.5540e+08 |A: 8.1415e+06| Relative Norm : 1.4244e+05
Iteration: 7
|Total Norm: 1.1059e+09 |Residual: 1.0899e+09 |A: 1.8790e+08| Relative Norm : 4.4312e+05
Iteration: 8
|Total Norm: 1.5913e+09 |Residual: 1.5895e+09 |A: 7.6996e+07| Relative Norm : 6.3760e+05
Iteration: 9
|Total Norm: 4.2909e+09 |Residual: 4.2892e+09 |A: 1.2024e+08| Relative Norm : 1.7192e+06
Arc-Length Step 123 :
Iteration: 0
|Total Norm: 7.8644e+02 |Residual: 7.8644e+02 |A: 4.2316e-08| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.0424e+01 |Residual: 1.8657e+01 |A: 8.3086e+00| Relative Norm : 2.5970e-02
Iteration: 2
|Total Norm: 1.1140e+01 |Residual: 1.0928e+01 |A: 2.1660e+00| Relative Norm : 1.4166e-02
Iteration: 3
|Total Norm: 1.7592e-02 |Residual: 1.5904e-02 |A: 7.5183e-03| Relative Norm : 2.2369e-05
Iteration: 4
|Total Norm: 1.7867e-05 |Residual: 1.5472e-05 |A: 8.9343e-06| Relative Norm : 2.2718e-08
Iteration: 5
|Total Norm: 1.2212e-09 |Residual: 1.2212e-09 |A: 1.1369e-13| Relative Norm : 1.5528e-12
Arc-Length Step 124 :
Iteration: 0
|Total Norm: 1.0126e+03 |Residual: 1.0126e+03 |A: 3.4106e-13| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.4944e+01 |Residual: 1.4933e+01 |A: 5.8637e-01| Relative Norm : 1.4758e-02
Iteration: 2
|Total Norm: 2.6359e+01 |Residual: 2.3256e+01 |A: 1.2407e+01| Relative Norm : 2.6030e-02
Iteration: 3
|Total Norm: 1.9663e-01 |Residual: 1.4864e-01 |A: 1.2873e-01| Relative Norm : 1.9418e-04
Iteration: 4
|Total Norm: 1.2577e-03 |Residual: 1.1495e-03 |A: 5.1019e-04| Relative Norm : 1.2420e-06
Iteration: 5
|Total Norm: 1.9203e-09 |Residual: 1.8997e-09 |A: 2.8058e-10| Relative Norm : 1.8964e-12
Arc-Length Step 125 :
Iteration: 0
|Total Norm: 4.6598e+03 |Residual: 4.6598e+03 |A: 1.1237e-09| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 7.5569e+02 |Residual: 4.1950e+02 |A: 6.2856e+02| Relative Norm : 1.6217e-01
Iteration: 2
|Total Norm: 1.0803e+03 |Residual: 1.0540e+03 |A: 2.3665e+02| Relative Norm : 2.3183e-01
Iteration: 3
|Total Norm: 1.3051e+02 |Residual: 8.8506e+01 |A: 9.5917e+01| Relative Norm : 2.8008e-02
Iteration: 4
|Total Norm: 1.4402e+02 |Residual: 8.5136e+01 |A: 1.1616e+02| Relative Norm : 3.0906e-02
Iteration: 5
|Total Norm: 4.6323e+01 |Residual: 4.6016e+01 |A: 5.3166e+00| Relative Norm : 9.9409e-03
Iteration: 6
|Total Norm: 7.5844e-01 |Residual: 7.2729e-01 |A: 2.1514e-01| Relative Norm : 1.6276e-04
Iteration: 7
|Total Norm: 3.4737e-02 |Residual: 2.5597e-02 |A: 2.3482e-02| Relative Norm : 7.4546e-06
Iteration: 8
|Total Norm: 1.3119e-06 |Residual: 1.2819e-06 |A: 2.7930e-07| Relative Norm : 2.8154e-10
Iteration: 9
|Total Norm: 1.1777e-09 |Residual: 1.1777e-09 |A: 2.2737e-13| Relative Norm : 2.5273e-13
Arc-Length Step 126 :
Iteration: 0
|Total Norm: 1.3595e+04 |Residual: 1.3595e+04 |A: 4.3201e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.0968e+03 |Residual: 1.0893e+03 |A: 1.2762e+02| Relative Norm : 8.0673e-02
Iteration: 2
|Total Norm: 2.2556e+04 |Residual: 2.2395e+04 |A: 2.6902e+03| Relative Norm : 1.6591e+00
Iteration: 3
|Total Norm: 1.0263e+04 |Residual: 2.4855e+03 |A: 9.9574e+03| Relative Norm : 7.5488e-01
Iteration: 4
|Total Norm: 2.4068e+04 |Residual: 2.3381e+04 |A: 5.7104e+03| Relative Norm : 1.7703e+00
Iteration: 5
|Total Norm: 5.5370e+03 |Residual: 3.8379e+03 |A: 3.9911e+03| Relative Norm : 4.0727e-01
Iteration: 6
|Total Norm: 1.8042e+05 |Residual: 1.4267e+05 |A: 1.1044e+05| Relative Norm : 1.3270e+01
Iteration: 7
|Total Norm: 8.8924e+05 |Residual: 8.6738e+05 |A: 1.9599e+05| Relative Norm : 6.5408e+01
Iteration: 8
|Total Norm: 2.6260e+05 |Residual: 2.5590e+05 |A: 5.8936e+04| Relative Norm : 1.9315e+01
Iteration: 9
|Total Norm: 1.0813e+06 |Residual: 1.0787e+06 |A: 7.4259e+04| Relative Norm : 7.9532e+01
Arc-Length Step 126 :
Iteration: 0
|Total Norm: 4.6161e+03 |Residual: 4.6161e+03 |A: 1.6485e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.1837e+02 |Residual: 1.1068e+02 |A: 4.1966e+01| Relative Norm : 2.5643e-02
Iteration: 2
|Total Norm: 2.7294e+02 |Residual: 2.2862e+02 |A: 1.4909e+02| Relative Norm : 5.9129e-02
Iteration: 3
|Total Norm: 4.8106e+01 |Residual: 4.4499e+01 |A: 1.8277e+01| Relative Norm : 1.0421e-02
Iteration: 4
|Total Norm: 7.3068e+01 |Residual: 7.2851e+01 |A: 5.6273e+00| Relative Norm : 1.5829e-02
Iteration: 5
|Total Norm: 2.9489e+00 |Residual: 2.8983e+00 |A: 5.4372e-01| Relative Norm : 6.3883e-04
Iteration: 6
|Total Norm: 3.7504e-01 |Residual: 3.5811e-01 |A: 1.1142e-01| Relative Norm : 8.1248e-05
Iteration: 7
|Total Norm: 5.7584e-05 |Residual: 5.0212e-05 |A: 2.8190e-05| Relative Norm : 1.2475e-08
Iteration: 8
|Total Norm: 1.2025e-09 |Residual: 1.2024e-09 |A: 1.7451e-11| Relative Norm : 2.6051e-13
Arc-Length Step 127 :
Iteration: 0
|Total Norm: 2.5621e+03 |Residual: 2.5621e+03 |A: 1.6712e-11| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 5.0381e+01 |Residual: 4.9710e+01 |A: 8.1936e+00| Relative Norm : 1.9664e-02
Iteration: 2
|Total Norm: 5.9802e+01 |Residual: 5.6220e+01 |A: 2.0385e+01| Relative Norm : 2.3341e-02
Iteration: 3
|Total Norm: 1.3230e+00 |Residual: 1.2593e+00 |A: 4.0565e-01| Relative Norm : 5.1637e-04
Iteration: 4
|Total Norm: 6.2753e-02 |Residual: 6.2461e-02 |A: 6.0473e-03| Relative Norm : 2.4493e-05
Iteration: 5
|Total Norm: 5.5862e-07 |Residual: 5.5321e-07 |A: 7.7587e-08| Relative Norm : 2.1803e-10
Arc-Length Step 128 :
Iteration: 0
|Total Norm: 6.1259e+03 |Residual: 6.1259e+03 |A: 3.1035e-07| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.0242e+02 |Residual: 1.6400e+02 |A: 1.1866e+02| Relative Norm : 3.3044e-02
Iteration: 2
|Total Norm: 1.6609e+02 |Residual: 1.6331e+02 |A: 3.0256e+01| Relative Norm : 2.7112e-02
Iteration: 3
|Total Norm: 1.3649e+02 |Residual: 1.3576e+02 |A: 1.4085e+01| Relative Norm : 2.2281e-02
Iteration: 4
|Total Norm: 1.1488e+03 |Residual: 1.1417e+03 |A: 1.2708e+02| Relative Norm : 1.8753e-01
Iteration: 5
|Total Norm: 4.8183e+02 |Residual: 4.5115e+02 |A: 1.6920e+02| Relative Norm : 7.8654e-02
Iteration: 6
|Total Norm: 3.6730e+03 |Residual: 3.6030e+03 |A: 7.1372e+02| Relative Norm : 5.9958e-01
Iteration: 7
|Total Norm: 1.9685e+03 |Residual: 9.5940e+02 |A: 1.7189e+03| Relative Norm : 3.2134e-01
Iteration: 8
|Total Norm: 7.7116e+03 |Residual: 7.6513e+03 |A: 9.6204e+02| Relative Norm : 1.2588e+00
Iteration: 9
|Total Norm: 6.1424e+03 |Residual: 5.0494e+03 |A: 3.4976e+03| Relative Norm : 1.0027e+00
Arc-Length Step 128 :
Iteration: 0
|Total Norm: 1.8770e+03 |Residual: 1.8770e+03 |A: 7.7587e-08| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.8697e+01 |Residual: 2.8249e+01 |A: 5.0506e+00| Relative Norm : 1.5289e-02
Iteration: 2
|Total Norm: 2.0277e+01 |Residual: 1.9775e+01 |A: 4.4848e+00| Relative Norm : 1.0803e-02
Iteration: 3
|Total Norm: 6.5696e-02 |Residual: 6.2827e-02 |A: 1.9202e-02| Relative Norm : 3.5001e-05
Iteration: 4
|Total Norm: 1.0381e-04 |Residual: 1.0106e-04 |A: 2.3723e-05| Relative Norm : 5.5307e-08
Iteration: 5
|Total Norm: 1.2207e-09 |Residual: 1.2207e-09 |A: 6.2528e-13| Relative Norm : 6.5034e-13
Arc-Length Step 129 :
Iteration: 0
|Total Norm: 1.4562e+03 |Residual: 1.4562e+03 |A: 1.3074e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.6431e+01 |Residual: 1.5957e+01 |A: 3.9184e+00| Relative Norm : 1.1283e-02
Iteration: 2
|Total Norm: 8.8319e+00 |Residual: 8.7574e+00 |A: 1.1444e+00| Relative Norm : 6.0651e-03
Iteration: 3
|Total Norm: 5.5590e-03 |Residual: 5.3992e-03 |A: 1.3233e-03| Relative Norm : 3.8175e-06
Iteration: 4
|Total Norm: 9.1255e-07 |Residual: 8.9239e-07 |A: 1.9073e-07| Relative Norm : 6.2667e-10
Arc-Length Step 130 :
Iteration: 0
|Total Norm: 3.8345e+03 |Residual: 3.8345e+03 |A: 7.6290e-07| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 6.2930e+03 |Residual: 5.8978e+03 |A: 2.1948e+03| Relative Norm : 1.6412e+00
Iteration: 2
|Total Norm: 9.2060e+06 |Residual: 9.2049e+06 |A: 1.4160e+05| Relative Norm : 2.4008e+03
Iteration: 3
|Total Norm: 6.3541e+05 |Residual: 6.0633e+05 |A: 1.9002e+05| Relative Norm : 1.6571e+02
Iteration: 4
|Total Norm: 1.2148e+05 |Residual: 5.4379e+04 |A: 1.0863e+05| Relative Norm : 3.1680e+01
Iteration: 5
|Total Norm: 1.8073e+09 |Residual: 2.6554e+08 |A: 1.7877e+09| Relative Norm : 4.7133e+05
Iteration: 6
|Total Norm: 4.5934e+08 |Residual: 9.6633e+07 |A: 4.4906e+08| Relative Norm : 1.1979e+05
Iteration: 7
|Total Norm: 3.0079e+09 |Residual: 3.0052e+09 |A: 1.2582e+08| Relative Norm : 7.8442e+05
Iteration: 8
|Total Norm: 2.3388e+13 |Residual: 2.3385e+13 |A: 3.5283e+11| Relative Norm : 6.0993e+09
Iteration: 9
|Total Norm: 4.5846e+14 |Residual: 2.6413e+14 |A: 3.7473e+14| Relative Norm : 1.1956e+11
Arc-Length Step 130 :
Iteration: 0
|Total Norm: 1.1972e+03 |Residual: 1.1972e+03 |A: 1.9073e-07| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.2143e+01 |Residual: 1.1679e+01 |A: 3.3246e+00| Relative Norm : 1.0143e-02
Iteration: 2
|Total Norm: 5.6447e+00 |Residual: 5.6157e+00 |A: 5.7131e-01| Relative Norm : 4.7148e-03
Iteration: 3
|Total Norm: 2.3382e-03 |Residual: 2.3055e-03 |A: 3.8955e-04| Relative Norm : 1.9530e-06
Iteration: 4
|Total Norm: 2.9641e-07 |Residual: 2.9462e-07 |A: 3.2478e-08| Relative Norm : 2.4758e-10
Arc-Length Step 131 :
Iteration: 0
|Total Norm: 1.0241e+03 |Residual: 1.0241e+03 |A: 3.2477e-08| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.9853e+02 |Residual: 2.9582e+02 |A: 4.0129e+01| Relative Norm : 2.9149e-01
Iteration: 2
|Total Norm: 2.3374e+07 |Residual: 2.3371e+07 |A: 4.1025e+05| Relative Norm : 2.2824e+04
Iteration: 3
|Total Norm: 4.0468e+08 |Residual: 1.7030e+08 |A: 3.6710e+08| Relative Norm : 3.9514e+05
Iteration: 4
|Total Norm: 9.9982e+08 |Residual: 9.9452e+08 |A: 1.0285e+08| Relative Norm : 9.7626e+05
Iteration: 5
|Total Norm: 3.9208e+07 |Residual: 2.7362e+07 |A: 2.8083e+07| Relative Norm : 3.8284e+04
Iteration: 6
|Total Norm: 8.9626e+07 |Residual: 8.9323e+07 |A: 7.3525e+06| Relative Norm : 8.7514e+04
Iteration: 7
|Total Norm: 6.2756e+06 |Residual: 5.8716e+06 |A: 2.2154e+06| Relative Norm : 6.1278e+03
Iteration: 8
|Total Norm: 7.3341e+07 |Residual: 7.3338e+07 |A: 6.6695e+05| Relative Norm : 7.1613e+04
Iteration: 9
|Total Norm: 1.1315e+07 |Residual: 1.1312e+07 |A: 2.8263e+05| Relative Norm : 1.1049e+04
Arc-Length Step 131 :
Iteration: 0
|Total Norm: 3.7542e+02 |Residual: 3.7542e+02 |A: 8.1187e-09| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 4.0095e+00 |Residual: 4.0080e+00 |A: 1.1119e-01| Relative Norm : 1.0680e-02
Iteration: 2
|Total Norm: 1.8961e+00 |Residual: 1.8820e+00 |A: 2.3095e-01| Relative Norm : 5.0507e-03
Iteration: 3
|Total Norm: 3.8884e-04 |Residual: 3.4661e-04 |A: 1.7623e-04| Relative Norm : 1.0357e-06
Iteration: 4
|Total Norm: 6.6993e-09 |Residual: 6.5088e-09 |A: 1.5861e-09| Relative Norm : 1.7845e-11
Arc-Length Step 132 :
Iteration: 0
|Total Norm: 2.2483e+02 |Residual: 2.2483e+02 |A: 1.5863e-09| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.2336e+01 |Residual: 1.2186e+01 |A: 1.9149e+00| Relative Norm : 5.4866e-02
Iteration: 2
|Total Norm: 8.6810e+00 |Residual: 8.5944e+00 |A: 1.2235e+00| Relative Norm : 3.8611e-02
Iteration: 3
|Total Norm: 6.3241e-02 |Residual: 6.2780e-02 |A: 7.6200e-03| Relative Norm : 2.8128e-04
Iteration: 4
|Total Norm: 9.7296e-05 |Residual: 9.6503e-05 |A: 1.2394e-05| Relative Norm : 4.3275e-07
Iteration: 5
|Total Norm: 9.9612e-10 |Residual: 9.9612e-10 |A: 1.5774e-12| Relative Norm : 4.4305e-12
Arc-Length Step 133 :
Iteration: 0
|Total Norm: 6.4720e+02 |Residual: 6.4720e+02 |A: 5.4001e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 3.9537e+00 |Residual: 3.8480e+00 |A: 9.0799e-01| Relative Norm : 6.1089e-03
Iteration: 2
|Total Norm: 1.2613e+00 |Residual: 1.2595e+00 |A: 6.6114e-02| Relative Norm : 1.9488e-03
Iteration: 3
|Total Norm: 1.7033e-05 |Residual: 1.6396e-05 |A: 4.6131e-06| Relative Norm : 2.6317e-08
Iteration: 4
|Total Norm: 1.3471e-09 |Residual: 1.3471e-09 |A: 1.6485e-12| Relative Norm : 2.0814e-12
Arc-Length Step 134 :
Iteration: 0
|Total Norm: 2.5356e+03 |Residual: 2.5356e+03 |A: 5.4570e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 7.0677e+01 |Residual: 3.9911e+01 |A: 5.8329e+01| Relative Norm : 2.7874e-02
Iteration: 2
|Total Norm: 1.9097e+01 |Residual: 6.3733e+00 |A: 1.8002e+01| Relative Norm : 7.5317e-03
Iteration: 3
|Total Norm: 8.2587e-02 |Residual: 4.9404e-02 |A: 6.6180e-02| Relative Norm : 3.2571e-05
Iteration: 4
|Total Norm: 3.3177e-06 |Residual: 1.9125e-06 |A: 2.7110e-06| Relative Norm : 1.3085e-09
Iteration: 5
|Total Norm: 1.0052e-09 |Residual: 1.0052e-09 |A: -2.2737e-13| Relative Norm : 3.9645e-13
Arc-Length Step 135 :
Iteration: 0
|Total Norm: 2.9857e+03 |Residual: 2.9857e+03 |A: 9.0949e-13| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.1738e+02 |Residual: 8.7237e+01 |A: 1.9910e+02| Relative Norm : 7.2806e-02
Iteration: 2
|Total Norm: 1.0800e+02 |Residual: 2.4996e+01 |A: 1.0506e+02| Relative Norm : 3.6171e-02
Iteration: 3
|Total Norm: 2.5835e+00 |Residual: 1.4923e+00 |A: 2.1089e+00| Relative Norm : 8.6529e-04
Iteration: 4
|Total Norm: 4.9487e-03 |Residual: 4.5625e-03 |A: 1.9168e-03| Relative Norm : 1.6575e-06
Iteration: 5
|Total Norm: 7.5395e-08 |Residual: 7.4831e-08 |A: 9.2086e-09| Relative Norm : 2.5252e-11
Arc-Length Step 136 :
Iteration: 0
|Total Norm: 2.4878e+03 |Residual: 2.4878e+03 |A: 9.2102e-09| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.9432e+02 |Residual: 8.7272e+01 |A: 1.7362e+02| Relative Norm : 7.8108e-02
Iteration: 2
|Total Norm: 1.0518e+02 |Residual: 3.0454e+01 |A: 1.0068e+02| Relative Norm : 4.2279e-02
Iteration: 3
|Total Norm: 2.3774e+00 |Residual: 1.3026e+00 |A: 1.9888e+00| Relative Norm : 9.5563e-04
Iteration: 4
|Total Norm: 9.2365e-03 |Residual: 8.7585e-03 |A: 2.9327e-03| Relative Norm : 3.7127e-06
Iteration: 5
|Total Norm: 1.0064e-07 |Residual: 9.9962e-08 |A: 1.1639e-08| Relative Norm : 4.0452e-11
Arc-Length Step 137 :
Iteration: 0
|Total Norm: 2.1138e+03 |Residual: 2.1138e+03 |A: 1.1640e-08| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.3270e+02 |Residual: 7.2226e+01 |A: 1.1132e+02| Relative Norm : 6.2777e-02
Iteration: 2
|Total Norm: 6.7163e+01 |Residual: 2.4063e+01 |A: 6.2704e+01| Relative Norm : 3.1773e-02
Iteration: 3
|Total Norm: 9.8031e-01 |Residual: 5.5020e-01 |A: 8.1135e-01| Relative Norm : 4.6377e-04
Iteration: 4
|Total Norm: 2.4562e-03 |Residual: 2.3432e-03 |A: 7.3662e-04| Relative Norm : 1.1620e-06
Iteration: 5
|Total Norm: 5.3028e-09 |Residual: 5.2445e-09 |A: 7.8398e-10| Relative Norm : 2.5086e-12
Arc-Length Step 138 :
Iteration: 0
|Total Norm: 1.8234e+03 |Residual: 1.8234e+03 |A: 7.8489e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 8.0096e+01 |Residual: 5.2681e+01 |A: 6.0334e+01| Relative Norm : 4.3928e-02
Iteration: 2
|Total Norm: 3.3784e+01 |Residual: 1.4345e+01 |A: 3.0587e+01| Relative Norm : 1.8528e-02
Iteration: 3
|Total Norm: 2.4312e-01 |Residual: 1.3853e-01 |A: 1.9978e-01| Relative Norm : 1.3333e-04
Iteration: 4
|Total Norm: 2.0536e-04 |Residual: 1.9626e-04 |A: 6.0435e-05| Relative Norm : 1.1262e-07
Iteration: 5
|Total Norm: 9.4951e-10 |Residual: 9.4950e-10 |A: 5.0022e-12| Relative Norm : 5.2075e-13
Arc-Length Step 139 :
Iteration: 0
|Total Norm: 1.5950e+03 |Residual: 1.5950e+03 |A: 3.6380e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 4.8278e+01 |Residual: 3.6847e+01 |A: 3.1193e+01| Relative Norm : 3.0268e-02
Iteration: 2
|Total Norm: 1.5798e+01 |Residual: 7.8385e+00 |A: 1.3716e+01| Relative Norm : 9.9048e-03
Iteration: 3
|Total Norm: 5.0574e-02 |Residual: 2.9635e-02 |A: 4.0982e-02| Relative Norm : 3.1708e-05
Iteration: 4
|Total Norm: 1.2272e-05 |Residual: 1.1760e-05 |A: 3.5075e-06| Relative Norm : 7.6942e-09
Iteration: 5
|Total Norm: 9.8049e-10 |Residual: 9.8049e-10 |A: 0.0000e+00| Relative Norm : 6.1473e-13
Arc-Length Step 140 :
Iteration: 0
|Total Norm: 1.4145e+03 |Residual: 1.4145e+03 |A: 1.3642e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 3.0580e+01 |Residual: 2.5874e+01 |A: 1.6300e+01| Relative Norm : 2.1618e-02
Iteration: 2
|Total Norm: 7.4843e+00 |Residual: 4.2994e+00 |A: 6.1261e+00| Relative Norm : 5.2909e-03
Iteration: 3
|Total Norm: 1.0573e-02 |Residual: 6.5447e-03 |A: 8.3039e-03| Relative Norm : 7.4744e-06
Iteration: 4
|Total Norm: 7.7057e-07 |Residual: 7.4163e-07 |A: 2.0920e-07| Relative Norm : 5.4475e-10
Arc-Length Step 141 :
Iteration: 0
|Total Norm: 1.2716e+03 |Residual: 1.2716e+03 |A: 2.0920e-07| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.0552e+01 |Residual: 1.8595e+01 |A: 8.7524e+00| Relative Norm : 1.6162e-02
Iteration: 2
|Total Norm: 3.7251e+00 |Residual: 2.4474e+00 |A: 2.8083e+00| Relative Norm : 2.9294e-03
Iteration: 3
|Total Norm: 2.3945e-03 |Residual: 1.6044e-03 |A: 1.7775e-03| Relative Norm : 1.8830e-06
Iteration: 4
|Total Norm: 5.8304e-08 |Residual: 5.6424e-08 |A: 1.4687e-08| Relative Norm : 4.5851e-11
Arc-Length Step 142 :
Iteration: 0
|Total Norm: 1.1582e+03 |Residual: 1.1582e+03 |A: 1.4687e-08| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.4599e+01 |Residual: 1.3782e+01 |A: 4.8165e+00| Relative Norm : 1.2605e-02
Iteration: 2
|Total Norm: 1.9744e+00 |Residual: 1.4589e+00 |A: 1.3304e+00| Relative Norm : 1.7047e-03
Iteration: 3
|Total Norm: 6.0438e-04 |Residual: 4.4422e-04 |A: 4.0981e-04| Relative Norm : 5.2183e-07
Iteration: 4
|Total Norm: 5.6244e-09 |Residual: 5.4805e-09 |A: 1.2640e-09| Relative Norm : 4.8562e-12
Arc-Length Step 143 :
Iteration: 0
|Total Norm: 1.0682e+03 |Residual: 1.0682e+03 |A: 1.2642e-09| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.0905e+01 |Residual: 1.0569e+01 |A: 2.6861e+00| Relative Norm : 1.0209e-02
Iteration: 2
|Total Norm: 1.1153e+00 |Residual: 9.0724e-01 |A: 6.4875e-01| Relative Norm : 1.0442e-03
Iteration: 3
|Total Norm: 1.7189e-04 |Residual: 1.3861e-04 |A: 1.0165e-04| Relative Norm : 1.6092e-07
Iteration: 4
|Total Norm: 1.2075e-09 |Residual: 1.2001e-09 |A: 1.3370e-10| Relative Norm : 1.1305e-12
Arc-Length Step 144 :
Iteration: 0
|Total Norm: 9.9677e+02 |Residual: 9.9677e+02 |A: 1.3347e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 8.5336e+00 |Residual: 8.4018e+00 |A: 1.4937e+00| Relative Norm : 8.5612e-03
Iteration: 2
|Total Norm: 6.6479e-01 |Residual: 5.8151e-01 |A: 3.2215e-01| Relative Norm : 6.6694e-04
Iteration: 3
|Total Norm: 5.5340e-05 |Residual: 4.8394e-05 |A: 2.6842e-05| Relative Norm : 5.5519e-08
Iteration: 4
|Total Norm: 1.0795e-09 |Residual: 1.0794e-09 |A: 1.6826e-11| Relative Norm : 1.0830e-12
Arc-Length Step 145 :
Iteration: 0
|Total Norm: 9.4045e+02 |Residual: 9.4045e+02 |A: 1.7963e-11| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 6.9780e+00 |Residual: 6.9307e+00 |A: 8.1087e-01| Relative Norm : 7.4198e-03
Iteration: 2
|Total Norm: 4.0979e-01 |Residual: 3.7723e-01 |A: 1.6008e-01| Relative Norm : 4.3574e-04
Iteration: 3
|Total Norm: 2.0126e-05 |Residual: 1.8703e-05 |A: 7.4342e-06| Relative Norm : 2.1401e-08
Iteration: 4
|Total Norm: 9.1087e-10 |Residual: 9.1087e-10 |A: 2.5011e-12| Relative Norm : 9.6855e-13
Arc-Length Step 146 :
Iteration: 0
|Total Norm: 8.9648e+02 |Residual: 8.9648e+02 |A: 3.1832e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 5.9500e+00 |Residual: 5.9353e+00 |A: 4.1814e-01| Relative Norm : 6.6371e-03
Iteration: 2
|Total Norm: 2.5408e-01 |Residual: 2.4198e-01 |A: 7.7487e-02| Relative Norm : 2.8342e-04
Iteration: 3
|Total Norm: 8.0910e-06 |Residual: 7.8072e-06 |A: 2.1240e-06| Relative Norm : 9.0253e-09
Iteration: 4
|Total Norm: 7.8536e-10 |Residual: 7.8536e-10 |A: 4.5475e-13| Relative Norm : 8.7605e-13
Arc-Length Step 147 :
Iteration: 0
|Total Norm: 8.6281e+02 |Residual: 8.6281e+02 |A: -2.2737e-13| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 5.2782e+00 |Residual: 5.2744e+00 |A: 1.9904e-01| Relative Norm : 6.1174e-03
Iteration: 2
|Total Norm: 1.5293e-01 |Residual: 1.4885e-01 |A: 3.5056e-02| Relative Norm : 1.7724e-04
Iteration: 3
|Total Norm: 3.3831e-06 |Residual: 3.3269e-06 |A: 6.1418e-07| Relative Norm : 3.9211e-09
Iteration: 4
|Total Norm: 9.9955e-10 |Residual: 9.9955e-10 |A: -2.2737e-13| Relative Norm : 1.1585e-12
Arc-Length Step 148 :
Iteration: 0
|Total Norm: 8.3793e+02 |Residual: 8.3793e+02 |A: 0.0000e+00| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 4.8583e+00 |Residual: 4.8574e+00 |A: 8.9964e-02| Relative Norm : 5.7979e-03
Iteration: 2
|Total Norm: 8.4907e-02 |Residual: 8.3725e-02 |A: 1.4116e-02| Relative Norm : 1.0133e-04
Iteration: 3
|Total Norm: 1.3020e-06 |Residual: 1.2906e-06 |A: 1.7188e-07| Relative Norm : 1.5538e-09
Iteration: 4
|Total Norm: 9.4472e-10 |Residual: 9.4472e-10 |A: 0.0000e+00| Relative Norm : 1.1274e-12
Arc-Length Step 149 :
Iteration: 0
|Total Norm: 8.2072e+02 |Residual: 8.2072e+02 |A: 0.0000e+00| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 4.6286e+00 |Residual: 4.6283e+00 |A: 5.5588e-02| Relative Norm : 5.6396e-03
Iteration: 2
|Total Norm: 3.9432e-02 |Residual: 3.9010e-02 |A: 5.7507e-03| Relative Norm : 4.8045e-05
Iteration: 3
|Total Norm: 3.4813e-07 |Residual: 3.4596e-07 |A: 3.8817e-08| Relative Norm : 4.2418e-10
Arc-Length Step 150 :
Iteration: 0
|Total Norm: 8.1040e+02 |Residual: 8.1040e+02 |A: 3.8817e-08| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 4.5580e+00 |Residual: 4.5574e+00 |A: 7.6330e-02| Relative Norm : 5.6244e-03
Iteration: 2
|Total Norm: 1.4242e-02 |Residual: 1.2913e-02 |A: 6.0076e-03| Relative Norm : 1.7574e-05
Iteration: 3
|Total Norm: 2.1636e-08 |Residual: 1.9002e-08 |A: 1.0346e-08| Relative Norm : 2.6697e-11
Arc-Length Step 151 :
Iteration: 0
|Total Norm: 8.0642e+02 |Residual: 8.0642e+02 |A: 1.0347e-08| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 4.6420e+00 |Residual: 4.6399e+00 |A: 1.4158e-01| Relative Norm : 5.7563e-03
Iteration: 2
|Total Norm: 3.5058e-02 |Residual: 3.2198e-02 |A: 1.3869e-02| Relative Norm : 4.3473e-05
Iteration: 3
|Total Norm: 2.3787e-07 |Residual: 2.2863e-07 |A: 6.5682e-08| Relative Norm : 2.9497e-10
Arc-Length Step 152 :
Iteration: 0
|Total Norm: 8.0847e+02 |Residual: 8.0847e+02 |A: 6.5681e-08| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 4.9038e+00 |Residual: 4.8976e+00 |A: 2.4576e-01| Relative Norm : 6.0655e-03
Iteration: 2
|Total Norm: 9.6311e-02 |Residual: 9.1286e-02 |A: 3.0703e-02| Relative Norm : 1.1913e-04
Iteration: 3
|Total Norm: 1.6000e-06 |Residual: 1.5699e-06 |A: 3.0856e-07| Relative Norm : 1.9790e-09
Iteration: 4
|Total Norm: 5.4274e-10 |Residual: 5.4274e-10 |A: 0.0000e+00| Relative Norm : 6.7131e-13
Arc-Length Step 153 :
Iteration: 0
|Total Norm: 8.1641e+02 |Residual: 8.1641e+02 |A: -2.2737e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 5.4003e+00 |Residual: 5.3865e+00 |A: 3.8575e-01| Relative Norm : 6.6146e-03
Iteration: 2
|Total Norm: 2.2372e-01 |Residual: 2.1526e-01 |A: 6.0935e-02| Relative Norm : 2.7403e-04
Iteration: 3
|Total Norm: 6.9543e-06 |Residual: 6.8664e-06 |A: 1.1024e-06| Relative Norm : 8.5182e-09
Iteration: 4
|Total Norm: 7.1855e-10 |Residual: 7.1855e-10 |A: 2.2737e-13| Relative Norm : 8.8013e-13
Arc-Length Step 154 :
Iteration: 0
|Total Norm: 8.3027e+02 |Residual: 8.3027e+02 |A: -1.8190e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 6.2313e+00 |Residual: 6.2062e+00 |A: 5.5944e-01| Relative Norm : 7.5052e-03
Iteration: 2
|Total Norm: 4.7079e-01 |Residual: 4.5665e-01 |A: 1.1453e-01| Relative Norm : 5.6703e-04
Iteration: 3
|Total Norm: 2.6957e-05 |Residual: 2.6706e-05 |A: 3.6660e-06| Relative Norm : 3.2468e-08
Iteration: 4
|Total Norm: 6.1692e-10 |Residual: 6.1690e-10 |A: 4.7748e-12| Relative Norm : 7.4304e-13
Arc-Length Step 155 :
Iteration: 0
|Total Norm: 8.5021e+02 |Residual: 8.5021e+02 |A: 5.2296e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 7.5497e+00 |Residual: 7.5108e+00 |A: 7.6624e-01| Relative Norm : 8.8798e-03
Iteration: 2
|Total Norm: 9.2473e-01 |Residual: 8.9984e-01 |A: 2.1309e-01| Relative Norm : 1.0876e-03
Iteration: 3
|Total Norm: 1.0082e-04 |Residual: 1.0006e-04 |A: 1.2422e-05| Relative Norm : 1.1859e-07
Iteration: 4
|Total Norm: 7.1017e-10 |Residual: 7.0739e-10 |A: 6.2755e-11| Relative Norm : 8.3529e-13
Arc-Length Step 156 :
Iteration: 0
|Total Norm: 8.7657e+02 |Residual: 8.7657e+02 |A: 6.0936e-11| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 9.5645e+00 |Residual: 9.5107e+00 |A: 1.0129e+00| Relative Norm : 1.0911e-02
Iteration: 2
|Total Norm: 1.7217e+00 |Residual: 1.6739e+00 |A: 4.0300e-01| Relative Norm : 1.9641e-03
Iteration: 3
|Total Norm: 3.7386e-04 |Residual: 3.7120e-04 |A: 4.4466e-05| Relative Norm : 4.2650e-07
Iteration: 4
|Total Norm: 3.6549e-09 |Residual: 3.5647e-09 |A: 8.0672e-10| Relative Norm : 4.1695e-12
Arc-Length Step 157 :
Iteration: 0
|Total Norm: 9.0981e+02 |Residual: 9.0981e+02 |A: 8.0627e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.2517e+01 |Residual: 1.2446e+01 |A: 1.3307e+00| Relative Norm : 1.3758e-02
Iteration: 2
|Total Norm: 3.0501e+00 |Residual: 2.9487e+00 |A: 7.7960e-01| Relative Norm : 3.3524e-03
Iteration: 3
|Total Norm: 1.3615e-03 |Residual: 1.3512e-03 |A: 1.6669e-04| Relative Norm : 1.4964e-06
Iteration: 4
|Total Norm: 3.7195e-08 |Residual: 3.5943e-08 |A: 9.5713e-09| Relative Norm : 4.0882e-11
Arc-Length Step 158 :
Iteration: 0
|Total Norm: 9.5059e+02 |Residual: 9.5059e+02 |A: 9.5697e-09| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.6589e+01 |Residual: 1.6491e+01 |A: 1.8062e+00| Relative Norm : 1.7452e-02
Iteration: 2
|Total Norm: 5.1097e+00 |Residual: 4.8795e+00 |A: 1.5166e+00| Relative Norm : 5.3753e-03
Iteration: 3
|Total Norm: 4.6593e-03 |Residual: 4.6176e-03 |A: 6.2217e-04| Relative Norm : 4.9015e-06
Iteration: 4
|Total Norm: 3.2469e-07 |Residual: 3.0991e-07 |A: 9.6857e-08| Relative Norm : 3.4157e-10
Arc-Length Step 159 :
Iteration: 0
|Total Norm: 9.9975e+02 |Residual: 9.9975e+02 |A: 9.6856e-08| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.1704e+01 |Residual: 2.1548e+01 |A: 2.6028e+00| Relative Norm : 2.1710e-02
Iteration: 2
|Total Norm: 7.9823e+00 |Residual: 7.4531e+00 |A: 2.8581e+00| Relative Norm : 7.9843e-03
Iteration: 3
|Total Norm: 1.3944e-02 |Residual: 1.3780e-02 |A: 2.1321e-03| Relative Norm : 1.3947e-05
Iteration: 4
|Total Norm: 2.1194e-06 |Residual: 1.9854e-06 |A: 7.4150e-07| Relative Norm : 2.1199e-09
Iteration: 5
|Total Norm: 5.4003e-10 |Residual: 5.4003e-10 |A: -4.5475e-13| Relative Norm : 5.4016e-13
Arc-Length Step 160 :
Iteration: 0
|Total Norm: 1.0584e+03 |Residual: 1.0584e+03 |A: -1.3642e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.7293e+01 |Residual: 2.7014e+01 |A: 3.8948e+00| Relative Norm : 2.5787e-02
Iteration: 2
|Total Norm: 1.1424e+01 |Residual: 1.0283e+01 |A: 4.9777e+00| Relative Norm : 1.0794e-02
Iteration: 3
|Total Norm: 3.3637e-02 |Residual: 3.3074e-02 |A: 6.1308e-03| Relative Norm : 3.1781e-05
Iteration: 4
|Total Norm: 9.1498e-06 |Residual: 8.3358e-06 |A: 3.7725e-06| Relative Norm : 8.6448e-09
Iteration: 5
|Total Norm: 5.3758e-10 |Residual: 5.3758e-10 |A: 0.0000e+00| Relative Norm : 5.0791e-13
Arc-Length Step 161 :
Iteration: 0
|Total Norm: 1.1281e+03 |Residual: 1.1281e+03 |A: 1.3642e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 3.2303e+01 |Residual: 3.1803e+01 |A: 5.6622e+00| Relative Norm : 2.8635e-02
Iteration: 2
|Total Norm: 1.4770e+01 |Residual: 1.2616e+01 |A: 7.6811e+00| Relative Norm : 1.3093e-02
Iteration: 3
|Total Norm: 6.1649e-02 |Residual: 6.0094e-02 |A: 1.3759e-02| Relative Norm : 5.4649e-05
Iteration: 4
|Total Norm: 2.4379e-05 |Residual: 2.1420e-05 |A: 1.1641e-05| Relative Norm : 2.1611e-08
Iteration: 5
|Total Norm: 5.8507e-10 |Residual: 5.8507e-10 |A: 6.8212e-13| Relative Norm : 5.1864e-13
Arc-Length Step 162 :
Iteration: 0
|Total Norm: 1.2110e+03 |Residual: 1.2110e+03 |A: 1.3642e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 3.5652e+01 |Residual: 3.4851e+01 |A: 7.5180e+00| Relative Norm : 2.9441e-02
Iteration: 2
|Total Norm: 1.7161e+01 |Residual: 1.3780e+01 |A: 1.0228e+01| Relative Norm : 1.4171e-02
Iteration: 3
|Total Norm: 8.5115e-02 |Residual: 8.1893e-02 |A: 2.3197e-02| Relative Norm : 7.0287e-05
Iteration: 4
|Total Norm: 4.0990e-05 |Residual: 3.4795e-05 |A: 2.1667e-05| Relative Norm : 3.3849e-08
Iteration: 5
|Total Norm: 5.1877e-10 |Residual: 5.1877e-10 |A: 4.5475e-13| Relative Norm : 4.2839e-13
Arc-Length Step 163 :
Iteration: 0
|Total Norm: 1.3103e+03 |Residual: 1.3103e+03 |A: 1.8190e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 3.6812e+01 |Residual: 3.5730e+01 |A: 8.8597e+00| Relative Norm : 2.8095e-02
Iteration: 2
|Total Norm: 1.7938e+01 |Residual: 1.3670e+01 |A: 1.1615e+01| Relative Norm : 1.3690e-02
Iteration: 3
|Total Norm: 9.1833e-02 |Residual: 8.7146e-02 |A: 2.8964e-02| Relative Norm : 7.0088e-05
Iteration: 4
|Total Norm: 4.7229e-05 |Residual: 3.9208e-05 |A: 2.6331e-05| Relative Norm : 3.6046e-08
Iteration: 5
|Total Norm: 4.9378e-10 |Residual: 4.9378e-10 |A: 0.0000e+00| Relative Norm : 3.7686e-13
Arc-Length Step 164 :
Iteration: 0
|Total Norm: 1.4312e+03 |Residual: 1.4312e+03 |A: 1.1369e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 3.6043e+01 |Residual: 3.4843e+01 |A: 9.2232e+00| Relative Norm : 2.5184e-02
Iteration: 2
|Total Norm: 1.6851e+01 |Residual: 1.2692e+01 |A: 1.1084e+01| Relative Norm : 1.1774e-02
Iteration: 3
|Total Norm: 8.0604e-02 |Residual: 7.6266e-02 |A: 2.6085e-02| Relative Norm : 5.6320e-05
Iteration: 4
|Total Norm: 4.0947e-05 |Residual: 3.3769e-05 |A: 2.3158e-05| Relative Norm : 2.8610e-08
Iteration: 5
|Total Norm: 3.6011e-10 |Residual: 3.6011e-10 |A: -2.2737e-13| Relative Norm : 2.5162e-13
Arc-Length Step 165 :
Iteration: 0
|Total Norm: 1.5825e+03 |Residual: 1.5825e+03 |A: -9.0949e-13| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 3.4514e+01 |Residual: 3.3467e+01 |A: 8.4397e+00| Relative Norm : 2.1810e-02
Iteration: 2
|Total Norm: 1.4290e+01 |Residual: 1.1558e+01 |A: 8.4042e+00| Relative Norm : 9.0302e-03
Iteration: 3
|Total Norm: 5.8745e-02 |Residual: 5.6706e-02 |A: 1.5344e-02| Relative Norm : 3.7121e-05
Iteration: 4
|Total Norm: 2.9381e-05 |Residual: 2.4549e-05 |A: 1.6144e-05| Relative Norm : 1.8566e-08
Iteration: 5
|Total Norm: 3.9543e-10 |Residual: 3.9543e-10 |A: 0.0000e+00| Relative Norm : 2.4987e-13
Arc-Length Step 166 :
Iteration: 0
|Total Norm: 1.7803e+03 |Residual: 1.7803e+03 |A: 2.2737e-13| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 3.5456e+01 |Residual: 3.4820e+01 |A: 6.6843e+00| Relative Norm : 1.9916e-02
Iteration: 2
|Total Norm: 1.2577e+01 |Residual: 1.1794e+01 |A: 4.3689e+00| Relative Norm : 7.0647e-03
Iteration: 3
|Total Norm: 4.0587e-02 |Residual: 4.0254e-02 |A: 5.1883e-03| Relative Norm : 2.2798e-05
Iteration: 4
|Total Norm: 2.3443e-05 |Residual: 2.0268e-05 |A: 1.1781e-05| Relative Norm : 1.3168e-08
Iteration: 5
|Total Norm: 3.9489e-10 |Residual: 3.9489e-10 |A: 2.2737e-13| Relative Norm : 2.2181e-13
Arc-Length Step 167 :
Iteration: 0
|Total Norm: 2.0564e+03 |Residual: 2.0564e+03 |A: 4.5475e-13| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 4.8366e+01 |Residual: 4.7976e+01 |A: 6.1341e+00| Relative Norm : 2.3520e-02
Iteration: 2
|Total Norm: 2.0655e+01 |Residual: 2.0007e+01 |A: 5.1331e+00| Relative Norm : 1.0044e-02
Iteration: 3
|Total Norm: 7.0662e-02 |Residual: 6.9714e-02 |A: 1.1541e-02| Relative Norm : 3.4362e-05
Iteration: 4
|Total Norm: 1.2135e-04 |Residual: 1.1164e-04 |A: 4.7561e-05| Relative Norm : 5.9008e-08
Iteration: 5
|Total Norm: 3.8457e-10 |Residual: 3.8457e-10 |A: 4.5475e-13| Relative Norm : 1.8701e-13
Arc-Length Step 168 :
Iteration: 0
|Total Norm: 2.4838e+03 |Residual: 2.4838e+03 |A: 3.1832e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.2720e+02 |Residual: 1.1967e+02 |A: 4.3112e+01| Relative Norm : 5.1212e-02
Iteration: 2
|Total Norm: 1.5351e+02 |Residual: 1.2904e+02 |A: 8.3152e+01| Relative Norm : 6.1805e-02
Iteration: 3
|Total Norm: 5.5758e+00 |Residual: 5.0953e+00 |A: 2.2643e+00| Relative Norm : 2.2449e-03
Iteration: 4
|Total Norm: 2.2102e-01 |Residual: 2.1293e-01 |A: 5.9241e-02| Relative Norm : 8.8983e-05
Iteration: 5
|Total Norm: 2.4614e-05 |Residual: 2.4503e-05 |A: 2.3364e-06| Relative Norm : 9.9098e-09
Iteration: 6
|Total Norm: 3.0451e-10 |Residual: 3.0450e-10 |A: 6.8212e-13| Relative Norm : 1.2260e-13
Arc-Length Step 169 :
Iteration: 0
|Total Norm: 3.2624e+03 |Residual: 3.2624e+03 |A: 9.0949e-13| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.2057e+04 |Residual: 9.3031e+03 |A: 7.6695e+03| Relative Norm : 3.6957e+00
Iteration: 2
|Total Norm: 5.5270e+09 |Residual: 5.4796e+09 |A: 7.2260e+08| Relative Norm : 1.6941e+06
Iteration: 3
|Total Norm: 3.2678e+10 |Residual: 3.2449e+10 |A: 3.8592e+09| Relative Norm : 1.0017e+07
Iteration: 4
|Total Norm: 2.3934e+10 |Residual: 2.3879e+10 |A: 1.6262e+09| Relative Norm : 7.3363e+06
Iteration: 5
|Total Norm: 1.9325e+14 |Residual: 1.9323e+14 |A: 2.8741e+12| Relative Norm : 5.9234e+10
Iteration: 6
|Total Norm: 6.2525e+13 |Residual: 6.1925e+13 |A: 8.6428e+12| Relative Norm : 1.9165e+10
Iteration: 7
|Total Norm: 7.0778e+14 |Residual: 7.0774e+14 |A: 6.7478e+12| Relative Norm : 2.1695e+11
Iteration: 8
|Total Norm: 1.8815e+15 |Residual: 1.8795e+15 |A: 8.7228e+13| Relative Norm : 5.7673e+11
Iteration: 9
|Total Norm: 6.2829e+15 |Residual: 6.2803e+15 |A: 1.8282e+14| Relative Norm : 1.9259e+12
Arc-Length Step 169 :
Iteration: 0
|Total Norm: 1.1803e+03 |Residual: 1.1803e+03 |A: 7.9581e-13| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.2523e+01 |Residual: 2.2097e+01 |A: 4.3601e+00| Relative Norm : 1.9083e-02
Iteration: 2
|Total Norm: 1.7254e+01 |Residual: 1.7234e+01 |A: 8.2908e-01| Relative Norm : 1.4619e-02
Iteration: 3
|Total Norm: 1.0002e-02 |Residual: 8.8541e-03 |A: 4.6528e-03| Relative Norm : 8.4745e-06
Iteration: 4
|Total Norm: 7.2743e-07 |Residual: 7.2505e-07 |A: 5.8734e-08| Relative Norm : 6.1633e-10
Arc-Length Step 170 :
Iteration: 0
|Total Norm: 1.0372e+03 |Residual: 1.0372e+03 |A: 5.8734e-08| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 3.0280e+01 |Residual: 2.7091e+01 |A: 1.3526e+01| Relative Norm : 2.9196e-02
Iteration: 2
|Total Norm: 1.5373e+01 |Residual: 1.5245e+01 |A: 1.9796e+00| Relative Norm : 1.4822e-02
Iteration: 3
|Total Norm: 2.5670e-02 |Residual: 2.3995e-02 |A: 9.1210e-03| Relative Norm : 2.4750e-05
Iteration: 4
|Total Norm: 2.8712e-05 |Residual: 2.4400e-05 |A: 1.5133e-05| Relative Norm : 2.7683e-08
Iteration: 5
|Total Norm: 2.7350e-10 |Residual: 2.7350e-10 |A: 2.2737e-13| Relative Norm : 2.6370e-13
Arc-Length Step 171 :
Iteration: 0
|Total Norm: 4.2383e+03 |Residual: 4.2383e+03 |A: -3.1832e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.7402e+02 |Residual: 1.5799e+02 |A: 2.2389e+02| Relative Norm : 6.4653e-02
Iteration: 2
|Total Norm: 3.0725e+02 |Residual: 3.0457e+02 |A: 4.0499e+01| Relative Norm : 7.2494e-02
Iteration: 3
|Total Norm: 1.7454e+00 |Residual: 1.6954e+00 |A: 4.1466e-01| Relative Norm : 4.1181e-04
Iteration: 4
|Total Norm: 1.9976e-01 |Residual: 1.5624e-01 |A: 1.2447e-01| Relative Norm : 4.7132e-05
Iteration: 5
|Total Norm: 8.8750e-06 |Residual: 8.2678e-06 |A: 3.2263e-06| Relative Norm : 2.0940e-09
Iteration: 6
|Total Norm: 2.6042e-10 |Residual: 2.6042e-10 |A: 4.5475e-13| Relative Norm : 6.1444e-14
Arc-Length Step 172 :
Iteration: 0
|Total Norm: 1.0131e+04 |Residual: 1.0131e+04 |A: 0.0000e+00| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 4.9122e+03 |Residual: 4.5217e+03 |A: 1.9192e+03| Relative Norm : 4.8487e-01
Iteration: 2
|Total Norm: 3.4774e+03 |Residual: 3.4145e+03 |A: 6.5859e+02| Relative Norm : 3.4325e-01
Iteration: 3
|Total Norm: 2.7973e+03 |Residual: 2.7592e+03 |A: 4.6005e+02| Relative Norm : 2.7611e-01
Iteration: 4
|Total Norm: 5.2136e+04 |Residual: 5.1688e+04 |A: 6.8148e+03| Relative Norm : 5.1462e+00
Iteration: 5
|Total Norm: 4.0656e+05 |Residual: 1.1595e+05 |A: 3.8967e+05| Relative Norm : 4.0130e+01
Iteration: 6
|Total Norm: 5.7788e+05 |Residual: 5.6774e+05 |A: 1.0778e+05| Relative Norm : 5.7041e+01
Iteration: 7
|Total Norm: 1.4257e+05 |Residual: 1.3636e+05 |A: 4.1638e+04| Relative Norm : 1.4073e+01
Iteration: 8
|Total Norm: 5.7970e+06 |Residual: 5.7957e+06 |A: 1.2281e+05| Relative Norm : 5.7221e+02
Iteration: 9
|Total Norm: 4.6416e+08 |Residual: 4.6415e+08 |A: 2.7185e+06| Relative Norm : 4.5816e+04
Arc-Length Step 172 :
Iteration: 0
|Total Norm: 3.5720e+03 |Residual: 3.5720e+03 |A: 0.0000e+00| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 6.8825e+01 |Residual: 6.7000e+01 |A: 1.5742e+01| Relative Norm : 1.9268e-02
Iteration: 2
|Total Norm: 2.1795e+02 |Residual: 1.8915e+02 |A: 1.0829e+02| Relative Norm : 6.1017e-02
Iteration: 3
|Total Norm: 2.5316e+01 |Residual: 2.4002e+01 |A: 8.0489e+00| Relative Norm : 7.0873e-03
Iteration: 4
|Total Norm: 1.7043e+00 |Residual: 1.0795e+00 |A: 1.3188e+00| Relative Norm : 4.7712e-04
Iteration: 5
|Total Norm: 7.3760e-03 |Residual: 7.0168e-03 |A: 2.2737e-03| Relative Norm : 2.0649e-06
Iteration: 6
|Total Norm: 8.5750e-08 |Residual: 8.4565e-08 |A: 1.4208e-08| Relative Norm : 2.4006e-11
Arc-Length Step 173 :
Iteration: 0
|Total Norm: 2.8889e+03 |Residual: 2.8889e+03 |A: 1.4206e-08| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 4.9041e+01 |Residual: 4.8570e+01 |A: 6.7786e+00| Relative Norm : 1.6976e-02
Iteration: 2
|Total Norm: 6.2016e+01 |Residual: 5.0043e+01 |A: 3.6628e+01| Relative Norm : 2.1467e-02
Iteration: 3
|Total Norm: 2.8446e+00 |Residual: 2.6633e+00 |A: 9.9952e-01| Relative Norm : 9.8468e-04
Iteration: 4
|Total Norm: 1.8110e-02 |Residual: 1.7756e-02 |A: 3.5664e-03| Relative Norm : 6.2690e-06
Iteration: 5
|Total Norm: 6.2190e-07 |Residual: 4.0577e-07 |A: 4.7129e-07| Relative Norm : 2.1527e-10
Arc-Length Step 174 :
Iteration: 0
|Total Norm: 7.8488e+03 |Residual: 7.8488e+03 |A: 1.8851e-06| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.9984e+02 |Residual: 2.4628e+02 |A: 1.7103e+02| Relative Norm : 3.8203e-02
Iteration: 2
|Total Norm: 2.1055e+02 |Residual: 2.0854e+02 |A: 2.9026e+01| Relative Norm : 2.6826e-02
Iteration: 3
|Total Norm: 5.6493e+00 |Residual: 5.6203e+00 |A: 5.7255e-01| Relative Norm : 7.1977e-04
Iteration: 4
|Total Norm: 1.1796e+00 |Residual: 1.1782e+00 |A: 5.8150e-02| Relative Norm : 1.5029e-04
Iteration: 5
|Total Norm: 1.5056e-04 |Residual: 1.5038e-04 |A: 7.4574e-06| Relative Norm : 1.9183e-08
Iteration: 6
|Total Norm: 2.0374e-09 |Residual: 2.0278e-09 |A: 1.9804e-10| Relative Norm : 2.5959e-13
Arc-Length Step 175 :
Iteration: 0
|Total Norm: 7.4978e+03 |Residual: 7.4978e+03 |A: 1.9759e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 4.6710e+02 |Residual: 2.3091e+02 |A: 4.0604e+02| Relative Norm : 6.2299e-02
Iteration: 2
|Total Norm: 4.0852e+02 |Residual: 3.9530e+02 |A: 1.0308e+02| Relative Norm : 5.4485e-02
Iteration: 3
|Total Norm: 4.2868e+02 |Residual: 4.2806e+02 |A: 2.3147e+01| Relative Norm : 5.7175e-02
Iteration: 4
|Total Norm: 1.4196e+03 |Residual: 1.4059e+03 |A: 1.9677e+02| Relative Norm : 1.8934e-01
Iteration: 5
|Total Norm: 4.4087e+02 |Residual: 4.1197e+02 |A: 1.5700e+02| Relative Norm : 5.8801e-02
Iteration: 6
|Total Norm: 1.5222e+04 |Residual: 1.5125e+04 |A: 1.7095e+03| Relative Norm : 2.0302e+00
Iteration: 7
|Total Norm: 7.5096e+03 |Residual: 6.6201e+03 |A: 3.5451e+03| Relative Norm : 1.0016e+00
Iteration: 8
|Total Norm: 2.0537e+04 |Residual: 1.9970e+04 |A: 4.7908e+03| Relative Norm : 2.7391e+00
Iteration: 9
|Total Norm: 5.0183e+06 |Residual: 5.0128e+06 |A: 2.3527e+05| Relative Norm : 6.6931e+02
Arc-Length Step 175 :
Iteration: 0
|Total Norm: 2.6533e+03 |Residual: 2.6533e+03 |A: 4.9567e-11| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 3.7034e+01 |Residual: 3.3910e+01 |A: 1.4889e+01| Relative Norm : 1.3958e-02
Iteration: 2
|Total Norm: 2.2132e+01 |Residual: 2.2082e+01 |A: 1.4930e+00| Relative Norm : 8.3416e-03
Iteration: 3
|Total Norm: 8.0097e-03 |Residual: 7.6437e-03 |A: 2.3935e-03| Relative Norm : 3.0188e-06
Iteration: 4
|Total Norm: 4.9880e-06 |Residual: 4.9823e-06 |A: 2.3898e-07| Relative Norm : 1.8800e-09
Iteration: 5
|Total Norm: 4.0891e-10 |Residual: 4.0891e-10 |A: 1.7053e-13| Relative Norm : 1.5411e-13
Arc-Length Step 176 :
Iteration: 0
|Total Norm: 1.2360e+03 |Residual: 1.2360e+03 |A: -2.2737e-13| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.2023e+01 |Residual: 1.1457e+01 |A: 3.6454e+00| Relative Norm : 9.7278e-03
Iteration: 2
|Total Norm: 7.1834e+00 |Residual: 7.1801e+00 |A: 2.1790e-01| Relative Norm : 5.8119e-03
Iteration: 3
|Total Norm: 5.7673e-04 |Residual: 5.7378e-04 |A: 5.8254e-05| Relative Norm : 4.6662e-07
Iteration: 4
|Total Norm: 4.1865e-08 |Residual: 4.1791e-08 |A: 2.4820e-09| Relative Norm : 3.3872e-11
Arc-Length Step 177 :
Iteration: 0
|Total Norm: 3.2311e+03 |Residual: 3.2311e+03 |A: 9.9183e-09| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.3006e+02 |Residual: 6.4499e+01 |A: 1.1294e+02| Relative Norm : 4.0253e-02
Iteration: 2
|Total Norm: 4.1964e+01 |Residual: 2.5656e+01 |A: 3.3207e+01| Relative Norm : 1.2987e-02
Iteration: 3
|Total Norm: 3.0135e-01 |Residual: 1.9945e-01 |A: 2.2590e-01| Relative Norm : 9.3264e-05
Iteration: 4
|Total Norm: 1.1175e-04 |Residual: 9.4687e-05 |A: 5.9346e-05| Relative Norm : 3.4585e-08
Iteration: 5
|Total Norm: 4.3767e-10 |Residual: 4.3766e-10 |A: 1.3642e-12| Relative Norm : 1.3545e-13
Arc-Length Step 178 :
Iteration: 0
|Total Norm: 3.4820e+03 |Residual: 3.4820e+03 |A: -4.5475e-13| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 3.9617e+02 |Residual: 1.5705e+02 |A: 3.6371e+02| Relative Norm : 1.1378e-01
Iteration: 2
|Total Norm: 2.4372e+02 |Residual: 1.1943e+02 |A: 2.1245e+02| Relative Norm : 6.9992e-02
Iteration: 3
|Total Norm: 1.5499e+01 |Residual: 1.2428e+01 |A: 9.2607e+00| Relative Norm : 4.4512e-03
Iteration: 4
|Total Norm: 1.0148e+00 |Residual: 9.9981e-01 |A: 1.7362e-01| Relative Norm : 2.9143e-04
Iteration: 5
|Total Norm: 4.8884e-04 |Residual: 4.8456e-04 |A: 6.4511e-05| Relative Norm : 1.4039e-07
Iteration: 6
|Total Norm: 3.5123e-09 |Residual: 3.5067e-09 |A: 1.9850e-10| Relative Norm : 1.0087e-12
Arc-Length Step 179 :
Iteration: 0
|Total Norm: 2.6471e+03 |Residual: 2.6471e+03 |A: 2.0214e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.9626e+02 |Residual: 1.1079e+02 |A: 1.6200e+02| Relative Norm : 7.4143e-02
Iteration: 2
|Total Norm: 1.1007e+02 |Residual: 6.9761e+01 |A: 8.5144e+01| Relative Norm : 4.1583e-02
Iteration: 3
|Total Norm: 3.0159e+00 |Residual: 2.4910e+00 |A: 1.7003e+00| Relative Norm : 1.1393e-03
Iteration: 4
|Total Norm: 5.9052e-02 |Residual: 5.8322e-02 |A: 9.2604e-03| Relative Norm : 2.2308e-05
Iteration: 5
|Total Norm: 1.3205e-06 |Residual: 1.3099e-06 |A: 1.6751e-07| Relative Norm : 4.9886e-10
Iteration: 6
|Total Norm: 5.0669e-10 |Residual: 5.0669e-10 |A: -2.2737e-13| Relative Norm : 1.9141e-13
Arc-Length Step 180 :
Iteration: 0
|Total Norm: 2.0951e+03 |Residual: 2.0951e+03 |A: 4.5475e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 8.9440e+01 |Residual: 6.4578e+01 |A: 6.1880e+01| Relative Norm : 4.2691e-02
Iteration: 2
|Total Norm: 3.8902e+01 |Residual: 2.9918e+01 |A: 2.4866e+01| Relative Norm : 1.8569e-02
Iteration: 3
|Total Norm: 2.8765e-01 |Residual: 2.4326e-01 |A: 1.5352e-01| Relative Norm : 1.3730e-04
Iteration: 4
|Total Norm: 9.1607e-04 |Residual: 9.0709e-04 |A: 1.2795e-04| Relative Norm : 4.3725e-07
Iteration: 5
|Total Norm: 5.6250e-10 |Residual: 5.6194e-10 |A: 2.5011e-11| Relative Norm : 2.6849e-13
Arc-Length Step 181 :
Iteration: 0
|Total Norm: 1.7108e+03 |Residual: 1.7108e+03 |A: 2.3419e-11| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 4.6939e+01 |Residual: 3.9005e+01 |A: 2.6114e+01| Relative Norm : 2.7436e-02
Iteration: 2
|Total Norm: 1.6603e+01 |Residual: 1.4687e+01 |A: 7.7414e+00| Relative Norm : 9.7043e-03
Iteration: 3
|Total Norm: 3.5982e-02 |Residual: 3.2318e-02 |A: 1.5818e-02| Relative Norm : 2.1032e-05
Iteration: 4
|Total Norm: 2.6759e-05 |Residual: 2.6588e-05 |A: 3.0147e-06| Relative Norm : 1.5641e-08
Iteration: 5
|Total Norm: 5.3367e-10 |Residual: 5.3367e-10 |A: -2.2737e-13| Relative Norm : 3.1193e-13
Arc-Length Step 182 :
Iteration: 0
|Total Norm: 1.4339e+03 |Residual: 1.4339e+03 |A: -9.0949e-13| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.8600e+01 |Residual: 2.5743e+01 |A: 1.2460e+01| Relative Norm : 1.9946e-02
Iteration: 2
|Total Norm: 9.1261e+00 |Residual: 8.7071e+00 |A: 2.7335e+00| Relative Norm : 6.3646e-03
Iteration: 3
|Total Norm: 6.9966e-03 |Residual: 6.6501e-03 |A: 2.1747e-03| Relative Norm : 4.8795e-06
Iteration: 4
|Total Norm: 1.7759e-06 |Residual: 1.7696e-06 |A: 1.4931e-07| Relative Norm : 1.2385e-09
Iteration: 5
|Total Norm: 5.5668e-10 |Residual: 5.5668e-10 |A: 2.2737e-13| Relative Norm : 3.8823e-13
Arc-Length Step 183 :
Iteration: 0
|Total Norm: 1.2288e+03 |Residual: 1.2288e+03 |A: 9.0949e-13| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.0518e+01 |Residual: 1.9442e+01 |A: 6.5586e+00| Relative Norm : 1.6698e-02
Iteration: 2
|Total Norm: 6.5412e+00 |Residual: 6.4476e+00 |A: 1.1025e+00| Relative Norm : 5.3233e-03
Iteration: 3
|Total Norm: 2.3772e-03 |Residual: 2.3391e-03 |A: 4.2373e-04| Relative Norm : 1.9346e-06
Iteration: 4
|Total Norm: 2.9730e-07 |Residual: 2.9676e-07 |A: 1.7781e-08| Relative Norm : 2.4194e-10
Arc-Length Step 184 :
Iteration: 0
|Total Norm: 1.0735e+03 |Residual: 1.0735e+03 |A: 1.7783e-08| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.1725e+01 |Residual: 2.1387e+01 |A: 3.8136e+00| Relative Norm : 2.0238e-02
Iteration: 2
|Total Norm: 7.7017e+00 |Residual: 7.6735e+00 |A: 6.5824e-01| Relative Norm : 7.1747e-03
Iteration: 3
|Total Norm: 2.6984e-03 |Residual: 2.6906e-03 |A: 2.0442e-04| Relative Norm : 2.5137e-06
Iteration: 4
|Total Norm: 4.0252e-07 |Residual: 4.0213e-07 |A: 1.7822e-08| Relative Norm : 3.7498e-10
Arc-Length Step 185 :
Iteration: 0
|Total Norm: 9.5358e+02 |Residual: 9.5358e+02 |A: 1.7824e-08| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.9129e+02 |Residual: 1.9050e+02 |A: 1.7381e+01| Relative Norm : 2.0060e-01
Iteration: 2
|Total Norm: 5.2118e+02 |Residual: 5.1939e+02 |A: 4.3075e+01| Relative Norm : 5.4655e-01
Iteration: 3
|Total Norm: 1.1455e+03 |Residual: 1.1408e+03 |A: 1.0339e+02| Relative Norm : 1.2013e+00
Iteration: 4
|Total Norm: 8.7038e+02 |Residual: 8.6771e+02 |A: 6.8084e+01| Relative Norm : 9.1275e-01
Iteration: 5
|Total Norm: 3.3408e+03 |Residual: 3.3392e+03 |A: 1.0542e+02| Relative Norm : 3.5035e+00
Iteration: 6
|Total Norm: 1.0326e+03 |Residual: 1.0196e+03 |A: 1.6330e+02| Relative Norm : 1.0829e+00
Iteration: 7
|Total Norm: 1.2958e+04 |Residual: 1.2741e+04 |A: 2.3575e+03| Relative Norm : 1.3588e+01
Iteration: 8
|Total Norm: 6.2758e+03 |Residual: 5.1205e+03 |A: 3.6284e+03| Relative Norm : 6.5813e+00
Iteration: 9
|Total Norm: 5.4591e+06 |Residual: 5.4563e+06 |A: 1.7636e+05| Relative Norm : 5.7249e+03
Arc-Length Step 185 :
Iteration: 0
|Total Norm: 3.5278e+02 |Residual: 3.5278e+02 |A: 4.4580e-09| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 5.9631e+00 |Residual: 5.9488e+00 |A: 4.1264e-01| Relative Norm : 1.6903e-02
Iteration: 2
|Total Norm: 1.8383e+00 |Residual: 1.8346e+00 |A: 1.1530e-01| Relative Norm : 5.2108e-03
Iteration: 3
|Total Norm: 2.3894e-04 |Residual: 2.3836e-04 |A: 1.6574e-05| Relative Norm : 6.7729e-07
Iteration: 4
|Total Norm: 3.3954e-09 |Residual: 3.3901e-09 |A: 1.8872e-10| Relative Norm : 9.6246e-12
Arc-Length Step 186 :
Iteration: 0
|Total Norm: 2.1638e+02 |Residual: 2.1638e+02 |A: 1.8946e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 8.7631e-01 |Residual: 8.7270e-01 |A: 7.9506e-02| Relative Norm : 4.0498e-03
Iteration: 2
|Total Norm: 3.6801e-02 |Residual: 3.6684e-02 |A: 2.9380e-03| Relative Norm : 1.7008e-04
Iteration: 3
|Total Norm: 5.7069e-08 |Residual: 5.6541e-08 |A: 7.7463e-09| Relative Norm : 2.6374e-10
Arc-Length Step 187 :
Iteration: 0
|Total Norm: 6.2536e+02 |Residual: 6.2536e+02 |A: 3.0972e-08| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 7.4675e+00 |Residual: 7.4260e+00 |A: 7.8603e-01| Relative Norm : 1.1941e-02
Iteration: 2
|Total Norm: 3.8288e+00 |Residual: 3.8200e+00 |A: 2.5856e-01| Relative Norm : 6.1225e-03
Iteration: 3
|Total Norm: 4.9429e-04 |Residual: 4.9254e-04 |A: 4.1543e-05| Relative Norm : 7.9040e-07
Iteration: 4
|Total Norm: 2.2923e-08 |Residual: 2.2839e-08 |A: 1.9613e-09| Relative Norm : 3.6655e-11
Arc-Length Step 188 :
Iteration: 0
|Total Norm: 7.8494e+02 |Residual: 7.8494e+02 |A: 1.9638e-09| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 8.0992e+00 |Residual: 8.0182e+00 |A: 1.1427e+00| Relative Norm : 1.0318e-02
Iteration: 2
|Total Norm: 3.6171e+00 |Residual: 3.6046e+00 |A: 3.0055e-01| Relative Norm : 4.6081e-03
Iteration: 3
|Total Norm: 5.9099e-04 |Residual: 5.8873e-04 |A: 5.1653e-05| Relative Norm : 7.5291e-07
Iteration: 4
|Total Norm: 2.6260e-08 |Residual: 2.6143e-08 |A: 2.4781e-09| Relative Norm : 3.3454e-11
Arc-Length Step 189 :
Iteration: 0
|Total Norm: 7.2502e+02 |Residual: 7.2502e+02 |A: 2.4772e-09| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 6.4862e+00 |Residual: 6.4419e+00 |A: 7.5710e-01| Relative Norm : 8.9463e-03
Iteration: 2
|Total Norm: 2.6699e+00 |Residual: 2.6612e+00 |A: 2.1590e-01| Relative Norm : 3.6826e-03
Iteration: 3
|Total Norm: 2.6144e-04 |Residual: 2.6037e-04 |A: 2.3639e-05| Relative Norm : 3.6060e-07
Iteration: 4
|Total Norm: 5.9067e-09 |Residual: 5.8809e-09 |A: 5.5115e-10| Relative Norm : 8.1470e-12
Arc-Length Step 190 :
Iteration: 0
|Total Norm: 6.7655e+02 |Residual: 6.7655e+02 |A: 5.5206e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 5.7219e+00 |Residual: 5.6976e+00 |A: 5.2622e-01| Relative Norm : 8.4575e-03
Iteration: 2
|Total Norm: 2.2600e+00 |Residual: 2.2527e+00 |A: 1.8082e-01| Relative Norm : 3.3405e-03
Iteration: 3
|Total Norm: 1.6412e-04 |Residual: 1.6341e-04 |A: 1.5276e-05| Relative Norm : 2.4259e-07
Iteration: 4
|Total Norm: 2.4682e-09 |Residual: 2.4572e-09 |A: 2.3283e-10| Relative Norm : 3.6482e-12
Arc-Length Step 191 :
Iteration: 0
|Total Norm: 6.3715e+02 |Residual: 6.3715e+02 |A: 2.3033e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 5.3462e+00 |Residual: 5.3325e+00 |A: 3.8196e-01| Relative Norm : 8.3908e-03
Iteration: 2
|Total Norm: 2.0679e+00 |Residual: 2.0611e+00 |A: 1.6707e-01| Relative Norm : 3.2455e-03
Iteration: 3
|Total Norm: 1.2666e-04 |Residual: 1.2607e-04 |A: 1.2208e-05| Relative Norm : 1.9880e-07
Iteration: 4
|Total Norm: 1.6413e-09 |Residual: 1.6350e-09 |A: 1.4370e-10| Relative Norm : 2.5760e-12
Arc-Length Step 192 :
Iteration: 0
|Total Norm: 6.0506e+02 |Residual: 6.0506e+02 |A: 1.4347e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 5.2155e+00 |Residual: 5.2073e+00 |A: 2.9289e-01| Relative Norm : 8.6198e-03
Iteration: 2
|Total Norm: 2.0064e+00 |Residual: 1.9995e+00 |A: 1.6631e-01| Relative Norm : 3.3161e-03
Iteration: 3
|Total Norm: 1.1451e-04 |Residual: 1.1393e-04 |A: 1.1500e-05| Relative Norm : 1.8925e-07
Iteration: 4
|Total Norm: 1.4427e-09 |Residual: 1.4378e-09 |A: 1.1937e-10| Relative Norm : 2.3844e-12
Arc-Length Step 193 :
Iteration: 0
|Total Norm: 5.7898e+02 |Residual: 5.7898e+02 |A: 1.1983e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 5.2866e+00 |Residual: 5.2810e+00 |A: 2.4328e-01| Relative Norm : 9.1309e-03
Iteration: 2
|Total Norm: 2.0572e+00 |Residual: 2.0495e+00 |A: 1.7685e-01| Relative Norm : 3.5531e-03
Iteration: 3
|Total Norm: 1.2000e-04 |Residual: 1.1933e-04 |A: 1.2587e-05| Relative Norm : 2.0725e-07
Iteration: 4
|Total Norm: 1.5082e-09 |Residual: 1.5025e-09 |A: 1.3051e-10| Relative Norm : 2.6049e-12
Arc-Length Step 194 :
Iteration: 0
|Total Norm: 5.5793e+02 |Residual: 5.5793e+02 |A: 1.3188e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 5.5801e+00 |Residual: 5.5755e+00 |A: 2.2722e-01| Relative Norm : 1.0002e-02
Iteration: 2
|Total Norm: 2.2461e+00 |Residual: 2.2371e+00 |A: 2.0163e-01| Relative Norm : 4.0259e-03
Iteration: 3
|Total Norm: 1.4843e-04 |Residual: 1.4754e-04 |A: 1.6210e-05| Relative Norm : 2.6604e-07
Iteration: 4
|Total Norm: 2.1970e-09 |Residual: 2.1883e-09 |A: 1.9600e-10| Relative Norm : 3.9379e-12
Arc-Length Step 195 :
Iteration: 0
|Total Norm: 5.4115e+02 |Residual: 5.4115e+02 |A: 1.9531e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 6.2133e+00 |Residual: 6.2082e+00 |A: 2.4993e-01| Relative Norm : 1.1482e-02
Iteration: 2
|Total Norm: 2.6770e+00 |Residual: 2.6651e+00 |A: 2.5188e-01| Relative Norm : 4.9469e-03
Iteration: 3
|Total Norm: 2.3072e-04 |Residual: 2.2926e-04 |A: 2.5962e-05| Relative Norm : 4.2636e-07
Iteration: 4
|Total Norm: 4.7555e-09 |Residual: 4.7337e-09 |A: 4.5520e-10| Relative Norm : 8.7878e-12
Arc-Length Step 196 :
Iteration: 0
|Total Norm: 5.2809e+02 |Residual: 5.2809e+02 |A: 4.5384e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 7.6036e+00 |Residual: 7.5958e+00 |A: 3.4615e-01| Relative Norm : 1.4398e-02
Iteration: 2
|Total Norm: 3.7260e+00 |Residual: 3.7078e+00 |A: 3.6790e-01| Relative Norm : 7.0557e-03
Iteration: 3
|Total Norm: 5.3850e-04 |Residual: 5.3502e-04 |A: 6.1081e-05| Relative Norm : 1.0197e-06
Iteration: 4
|Total Norm: 2.3173e-08 |Residual: 2.3062e-08 |A: 2.2710e-09| Relative Norm : 4.3882e-11
Arc-Length Step 197 :
Iteration: 0
|Total Norm: 5.1832e+02 |Residual: 5.1832e+02 |A: 2.2708e-09| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.2074e+01 |Residual: 1.2051e+01 |A: 7.4320e-01| Relative Norm : 2.3294e-02
Iteration: 2
|Total Norm: 7.7128e+00 |Residual: 7.6715e+00 |A: 7.9745e-01| Relative Norm : 1.4880e-02
Iteration: 3
|Total Norm: 3.6574e-03 |Residual: 3.6353e-03 |A: 4.0149e-04| Relative Norm : 7.0562e-06
Iteration: 4
|Total Norm: 8.1189e-07 |Residual: 8.0786e-07 |A: 8.0743e-08| Relative Norm : 1.5664e-09
Arc-Length Step 198 :
Iteration: 0
|Total Norm: 5.1155e+02 |Residual: 5.1155e+02 |A: 8.0744e-08| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.6996e+02 |Residual: 2.6845e+02 |A: 2.8516e+01| Relative Norm : 5.2773e-01
Iteration: 2
|Total Norm: 1.8288e+03 |Residual: 1.8187e+03 |A: 1.9209e+02| Relative Norm : 3.5750e+00
Iteration: 3
|Total Norm: 1.4513e+02 |Residual: 1.4390e+02 |A: 1.8872e+01| Relative Norm : 2.8372e-01
Iteration: 4
|Total Norm: 2.0430e+03 |Residual: 2.0319e+03 |A: 2.1237e+02| Relative Norm : 3.9938e+00
Iteration: 5
|Total Norm: 5.7249e+01 |Residual: 5.6038e+01 |A: 1.1713e+01| Relative Norm : 1.1191e-01
Iteration: 6
|Total Norm: 1.8125e+02 |Residual: 1.8013e+02 |A: 2.0172e+01| Relative Norm : 3.5432e-01
Iteration: 7
|Total Norm: 2.1210e+00 |Residual: 2.1096e+00 |A: 2.1903e-01| Relative Norm : 4.1462e-03
Iteration: 8
|Total Norm: 2.6133e-01 |Residual: 2.5993e-01 |A: 2.7059e-02| Relative Norm : 5.1086e-04
Iteration: 9
|Total Norm: 4.3953e-06 |Residual: 4.3707e-06 |A: 4.6432e-07| Relative Norm : 8.5922e-09
Arc-Length Step 198 :
Iteration: 0
|Total Norm: 1.9091e+02 |Residual: 1.9091e+02 |A: 2.0186e-08| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.9429e-01 |Residual: 1.9428e-01 |A: 1.5626e-03| Relative Norm : 1.0177e-03
Iteration: 2
|Total Norm: 2.9544e-04 |Residual: 2.9473e-04 |A: 2.0576e-05| Relative Norm : 1.5475e-06
Iteration: 3
|Total Norm: 9.6527e-10 |Residual: 9.6527e-10 |A: 9.0949e-13| Relative Norm : 5.0561e-12
Arc-Length Step 199 :
Iteration: 0
|Total Norm: 1.2630e+02 |Residual: 1.2630e+02 |A: 6.8212e-13| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 8.3531e-02 |Residual: 8.3529e-02 |A: 6.5933e-04| Relative Norm : 6.6139e-04
Iteration: 2
|Total Norm: 2.5905e-05 |Residual: 2.5878e-05 |A: 1.1828e-06| Relative Norm : 2.0511e-07
Iteration: 3
|Total Norm: 8.3642e-10 |Residual: 8.3642e-10 |A: 5.6843e-14| Relative Norm : 6.6226e-12
Arc-Length Step 200 :
Iteration: 0
|Total Norm: 3.7927e+02 |Residual: 3.7927e+02 |A: 1.5916e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 7.5462e-01 |Residual: 7.5459e-01 |A: 7.2813e-03| Relative Norm : 1.9897e-03
Iteration: 2
|Total Norm: 3.6738e-03 |Residual: 3.6677e-03 |A: 2.1058e-04| Relative Norm : 9.6864e-06
Iteration: 3
|Total Norm: 1.4092e-09 |Residual: 1.4056e-09 |A: 1.0141e-10| Relative Norm : 3.7156e-12
Arc-Length Step 201 :
Iteration: 0
|Total Norm: 5.0614e+02 |Residual: 5.0614e+02 |A: 1.0141e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.4525e+00 |Residual: 1.4523e+00 |A: 2.1971e-02| Relative Norm : 2.8698e-03
Iteration: 2
|Total Norm: 7.4077e-03 |Residual: 7.1838e-03 |A: 1.8076e-03| Relative Norm : 1.4636e-05
Iteration: 3
|Total Norm: 6.2346e-09 |Residual: 6.1288e-09 |A: 1.1435e-09| Relative Norm : 1.2318e-11
Arc-Length Step 202 :
Iteration: 0
|Total Norm: 5.0728e+02 |Residual: 5.0728e+02 |A: 1.1432e-09| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.5733e+00 |Residual: 2.5721e+00 |A: 7.9856e-02| Relative Norm : 5.0728e-03
Iteration: 2
|Total Norm: 2.4019e-01 |Residual: 2.3736e-01 |A: 3.6775e-02| Relative Norm : 4.7349e-04
Iteration: 3
|Total Norm: 1.3900e-06 |Residual: 1.3451e-06 |A: 3.5018e-07| Relative Norm : 2.7400e-09
Iteration: 4
|Total Norm: 7.6395e-10 |Residual: 7.6395e-10 |A: 0.0000e+00| Relative Norm : 1.5060e-12
Arc-Length Step 203 :
Iteration: 0
|Total Norm: 5.1094e+02 |Residual: 5.1094e+02 |A: -9.0949e-13| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 3.5782e+00 |Residual: 3.5745e+00 |A: 1.6261e-01| Relative Norm : 7.0031e-03
Iteration: 2
|Total Norm: 5.4704e-01 |Residual: 5.4037e-01 |A: 8.5161e-02| Relative Norm : 1.0707e-03
Iteration: 3
|Total Norm: 7.3206e-06 |Residual: 7.0729e-06 |A: 1.8883e-06| Relative Norm : 1.4328e-08
Iteration: 4
|Total Norm: 8.6299e-10 |Residual: 8.6299e-10 |A: 4.5475e-13| Relative Norm : 1.6890e-12
Arc-Length Step 204 :
Iteration: 0
|Total Norm: 5.1715e+02 |Residual: 5.1715e+02 |A: 2.2737e-13| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 4.5312e+00 |Residual: 4.5232e+00 |A: 2.6993e-01| Relative Norm : 8.7619e-03
Iteration: 2
|Total Norm: 8.8527e-01 |Residual: 8.7337e-01 |A: 1.4467e-01| Relative Norm : 1.7118e-03
Iteration: 3
|Total Norm: 2.1340e-05 |Residual: 2.0601e-05 |A: 5.5664e-06| Relative Norm : 4.1264e-08
Iteration: 4
|Total Norm: 9.8110e-10 |Residual: 9.8110e-10 |A: 3.6380e-12| Relative Norm : 1.8971e-12
Arc-Length Step 205 :
Iteration: 0
|Total Norm: 5.2602e+02 |Residual: 5.2602e+02 |A: 5.9117e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 5.5668e+00 |Residual: 5.5514e+00 |A: 4.1417e-01| Relative Norm : 1.0583e-02
Iteration: 2
|Total Norm: 1.2919e+00 |Residual: 1.2724e+00 |A: 2.2374e-01| Relative Norm : 2.4560e-03
Iteration: 3
|Total Norm: 5.1595e-05 |Residual: 4.9757e-05 |A: 1.3646e-05| Relative Norm : 9.8086e-08
Iteration: 4
|Total Norm: 1.0721e-09 |Residual: 1.0719e-09 |A: 1.8872e-11| Relative Norm : 2.0382e-12
Arc-Length Step 206 :
Iteration: 0
|Total Norm: 5.3767e+02 |Residual: 5.3767e+02 |A: 1.8645e-11| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 6.8040e+00 |Residual: 6.7761e+00 |A: 6.1600e-01| Relative Norm : 1.2655e-02
Iteration: 2
|Total Norm: 1.8283e+00 |Residual: 1.7970e+00 |A: 3.3695e-01| Relative Norm : 3.4004e-03
Iteration: 3
|Total Norm: 1.1887e-04 |Residual: 1.1453e-04 |A: 3.1850e-05| Relative Norm : 2.2109e-07
Iteration: 4
|Total Norm: 1.6262e-09 |Residual: 1.6235e-09 |A: 9.3678e-11| Relative Norm : 3.0246e-12
Arc-Length Step 207 :
Iteration: 0
|Total Norm: 5.5233e+02 |Residual: 5.5233e+02 |A: 9.2541e-11| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 8.3904e+00 |Residual: 8.3409e+00 |A: 9.1021e-01| Relative Norm : 1.5191e-02
Iteration: 2
|Total Norm: 2.5950e+00 |Residual: 2.5445e+00 |A: 5.0978e-01| Relative Norm : 4.6983e-03
Iteration: 3
|Total Norm: 2.8005e-04 |Residual: 2.6966e-04 |A: 7.5575e-05| Relative Norm : 5.0704e-07
Iteration: 4
|Total Norm: 4.3345e-09 |Residual: 4.3082e-09 |A: 4.7703e-10| Relative Norm : 7.8477e-12
Arc-Length Step 208 :
Iteration: 0
|Total Norm: 5.7026e+02 |Residual: 5.7026e+02 |A: 4.7294e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.0558e+01 |Residual: 1.0470e+01 |A: 1.3594e+00| Relative Norm : 1.8515e-02
Iteration: 2
|Total Norm: 3.7765e+00 |Residual: 3.6928e+00 |A: 7.9067e-01| Relative Norm : 6.6225e-03
Iteration: 3
|Total Norm: 7.0993e-04 |Residual: 6.8380e-04 |A: 1.9085e-04| Relative Norm : 1.2449e-06
Iteration: 4
|Total Norm: 2.3489e-08 |Residual: 2.3325e-08 |A: 2.7699e-09| Relative Norm : 4.1190e-11
Arc-Length Step 209 :
Iteration: 0
|Total Norm: 5.9183e+02 |Residual: 5.9183e+02 |A: 2.7683e-09| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.3735e+01 |Residual: 1.3576e+01 |A: 2.0861e+00| Relative Norm : 2.3208e-02
Iteration: 2
|Total Norm: 5.7523e+00 |Residual: 5.6079e+00 |A: 1.2806e+00| Relative Norm : 9.7195e-03
Iteration: 3
|Total Norm: 2.0402e-03 |Residual: 1.9682e-03 |A: 5.3716e-04| Relative Norm : 3.4472e-06
Iteration: 4
|Total Norm: 1.6530e-07 |Residual: 1.6406e-07 |A: 2.0202e-08| Relative Norm : 2.7930e-10
Arc-Length Step 210 :
Iteration: 0
|Total Norm: 6.1747e+02 |Residual: 6.1747e+02 |A: 2.0200e-08| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.8828e+01 |Residual: 1.8526e+01 |A: 3.3571e+00| Relative Norm : 3.0491e-02
Iteration: 2
|Total Norm: 9.4130e+00 |Residual: 9.1483e+00 |A: 2.2168e+00| Relative Norm : 1.5244e-02
Iteration: 3
|Total Norm: 7.1343e-03 |Residual: 6.9044e-03 |A: 1.7965e-03| Relative Norm : 1.1554e-05
Iteration: 4
|Total Norm: 1.6542e-06 |Residual: 1.6408e-06 |A: 2.1031e-07| Relative Norm : 2.6790e-09
Iteration: 5
|Total Norm: 1.1130e-09 |Residual: 1.1130e-09 |A: 0.0000e+00| Relative Norm : 1.8025e-12
Arc-Length Step 211 :
Iteration: 0
|Total Norm: 6.4773e+02 |Residual: 6.4773e+02 |A: 3.4106e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.8120e+01 |Residual: 2.7506e+01 |A: 5.8466e+00| Relative Norm : 4.3413e-02
Iteration: 2
|Total Norm: 1.7275e+01 |Residual: 1.6741e+01 |A: 4.2615e+00| Relative Norm : 2.6670e-02
Iteration: 3
|Total Norm: 3.4245e-02 |Residual: 3.3299e-02 |A: 7.9964e-03| Relative Norm : 5.2870e-05
Iteration: 4
|Total Norm: 2.8908e-05 |Residual: 2.8650e-05 |A: 3.8556e-06| Relative Norm : 4.4630e-08
Iteration: 5
|Total Norm: 8.8380e-10 |Residual: 8.8380e-10 |A: 0.0000e+00| Relative Norm : 1.3644e-12
Arc-Length Step 212 :
Iteration: 0
|Total Norm: 6.8328e+02 |Residual: 6.8328e+02 |A: -2.2737e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 4.8950e+01 |Residual: 4.7534e+01 |A: 1.1692e+01| Relative Norm : 7.1640e-02
Iteration: 2
|Total Norm: 3.8987e+01 |Residual: 3.7714e+01 |A: 9.8819e+00| Relative Norm : 5.7059e-02
Iteration: 3
|Total Norm: 2.9300e-01 |Residual: 2.8654e-01 |A: 6.1173e-02| Relative Norm : 4.2881e-04
Iteration: 4
|Total Norm: 1.3807e-03 |Residual: 1.3669e-03 |A: 1.9469e-04| Relative Norm : 2.0207e-06
Iteration: 5
|Total Norm: 1.1161e-09 |Residual: 1.1149e-09 |A: 5.1841e-11| Relative Norm : 1.6334e-12
Arc-Length Step 213 :
Iteration: 0
|Total Norm: 7.2493e+02 |Residual: 7.2493e+02 |A: 5.3433e-11| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.1679e+02 |Residual: 1.1261e+02 |A: 3.0953e+01| Relative Norm : 1.6110e-01
Iteration: 2
|Total Norm: 1.4724e+02 |Residual: 1.4265e+02 |A: 3.6475e+01| Relative Norm : 2.0311e-01
Iteration: 3
|Total Norm: 1.1759e+01 |Residual: 1.1574e+01 |A: 2.0780e+00| Relative Norm : 1.6221e-02
Iteration: 4
|Total Norm: 9.2761e-01 |Residual: 9.1729e-01 |A: 1.3797e-01| Relative Norm : 1.2796e-03
Iteration: 5
|Total Norm: 4.7263e-04 |Residual: 4.6812e-04 |A: 6.5152e-05| Relative Norm : 6.5196e-07
Iteration: 6
|Total Norm: 1.9173e-09 |Residual: 1.9057e-09 |A: 2.1009e-10| Relative Norm : 2.6447e-12
Arc-Length Step 214 :
Iteration: 0
|Total Norm: 7.7370e+02 |Residual: 7.7370e+02 |A: 2.1146e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 6.8908e+02 |Residual: 6.6291e+02 |A: 1.8809e+02| Relative Norm : 8.9063e-01
Iteration: 2
|Total Norm: 1.2496e+04 |Residual: 1.2337e+04 |A: 1.9852e+03| Relative Norm : 1.6150e+01
Iteration: 3
|Total Norm: 5.4133e+03 |Residual: 2.0983e+03 |A: 4.9901e+03| Relative Norm : 6.9967e+00
Iteration: 4
|Total Norm: 6.8231e+04 |Residual: 6.7822e+04 |A: 7.4558e+03| Relative Norm : 8.8188e+01
Iteration: 5
|Total Norm: 1.6974e+04 |Residual: 1.6825e+04 |A: 2.2416e+03| Relative Norm : 2.1938e+01
Iteration: 6
|Total Norm: 6.4770e+06 |Residual: 6.4490e+06 |A: 6.0212e+05| Relative Norm : 8.3716e+03
Iteration: 7
|Total Norm: 1.8744e+07 |Residual: 1.8740e+07 |A: 3.9292e+05| Relative Norm : 2.4226e+04
Iteration: 8
|Total Norm: 2.0839e+06 |Residual: 2.0777e+06 |A: 1.6068e+05| Relative Norm : 2.6934e+03
Iteration: 9
|Total Norm: 1.4147e+07 |Residual: 1.4146e+07 |A: 1.1052e+05| Relative Norm : 1.8285e+04
Arc-Length Step 214 :
Iteration: 0
|Total Norm: 2.8865e+02 |Residual: 2.8865e+02 |A: 5.3774e-11| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.2464e+00 |Residual: 1.2390e+00 |A: 1.3529e-01| Relative Norm : 4.3180e-03
Iteration: 2
|Total Norm: 1.8884e-02 |Residual: 1.5031e-02 |A: 1.1432e-02| Relative Norm : 6.5423e-05
Iteration: 3
|Total Norm: 1.1049e-07 |Residual: 2.3762e-08 |A: 1.0791e-07| Relative Norm : 3.8279e-10
Arc-Length Step 215 :
Iteration: 0
|Total Norm: 2.0252e+02 |Residual: 2.0252e+02 |A: 1.0791e-07| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 5.6376e-01 |Residual: 5.6109e-01 |A: 5.4771e-02| Relative Norm : 2.7838e-03
Iteration: 2
|Total Norm: 3.5591e-03 |Residual: 2.6862e-03 |A: 2.3349e-03| Relative Norm : 1.7575e-05
Iteration: 3
|Total Norm: 4.7480e-09 |Residual: 1.5339e-09 |A: 4.4934e-09| Relative Norm : 2.3445e-11
Arc-Length Step 216 :
Iteration: 0
|Total Norm: 6.3267e+02 |Residual: 6.3267e+02 |A: 1.7971e-08| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.3626e+01 |Residual: 1.3245e+01 |A: 3.1996e+00| Relative Norm : 2.1537e-02
Iteration: 2
|Total Norm: 3.2785e+00 |Residual: 2.8388e+00 |A: 1.6401e+00| Relative Norm : 5.1820e-03
Iteration: 3
|Total Norm: 7.3626e-04 |Residual: 3.8843e-04 |A: 6.2547e-04| Relative Norm : 1.1637e-06
Iteration: 4
|Total Norm: 3.4935e-09 |Residual: 3.4704e-09 |A: 4.0109e-10| Relative Norm : 5.5219e-12
Arc-Length Step 217 :
Iteration: 0
|Total Norm: 8.9783e+02 |Residual: 8.9783e+02 |A: 4.0563e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.7429e+02 |Residual: 2.6862e+02 |A: 5.5479e+01| Relative Norm : 3.0551e-01
Iteration: 2
|Total Norm: 1.1290e+03 |Residual: 1.1035e+03 |A: 2.3870e+02| Relative Norm : 1.2575e+00
Iteration: 3
|Total Norm: 3.0825e+02 |Residual: 3.0262e+02 |A: 5.8636e+01| Relative Norm : 3.4333e-01
Iteration: 4
|Total Norm: 5.0020e+03 |Residual: 4.9448e+03 |A: 7.5400e+02| Relative Norm : 5.5712e+00
Iteration: 5
|Total Norm: 4.6910e+02 |Residual: 3.5542e+02 |A: 3.0615e+02| Relative Norm : 5.2247e-01
Iteration: 6
|Total Norm: 3.8400e+03 |Residual: 3.7723e+03 |A: 7.1805e+02| Relative Norm : 4.2769e+00
Iteration: 7
|Total Norm: 4.5175e+06 |Residual: 4.5095e+06 |A: 2.6794e+05| Relative Norm : 5.0315e+03
Iteration: 8
|Total Norm: 6.2445e+06 |Residual: 6.2438e+06 |A: 9.1252e+04| Relative Norm : 6.9551e+03
Iteration: 9
|Total Norm: 8.2408e+06 |Residual: 8.2407e+06 |A: 3.9960e+04| Relative Norm : 9.1785e+03
Arc-Length Step 217 :
Iteration: 0
|Total Norm: 3.3454e+02 |Residual: 3.3454e+02 |A: 9.9078e-11| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.8771e+00 |Residual: 1.8645e+00 |A: 2.1757e-01| Relative Norm : 5.6110e-03
Iteration: 2
|Total Norm: 4.4484e-02 |Residual: 3.2289e-02 |A: 3.0598e-02| Relative Norm : 1.3297e-04
Iteration: 3
|Total Norm: 7.9841e-07 |Residual: 2.0594e-07 |A: 7.7139e-07| Relative Norm : 2.3865e-09
Arc-Length Step 218 :
Iteration: 0
|Total Norm: 2.3684e+02 |Residual: 2.3684e+02 |A: 7.7139e-07| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 8.3787e-01 |Residual: 8.3414e-01 |A: 7.8980e-02| Relative Norm : 3.5377e-03
Iteration: 2
|Total Norm: 8.3492e-03 |Residual: 5.6793e-03 |A: 6.1201e-03| Relative Norm : 3.5253e-05
Iteration: 3
|Total Norm: 3.2026e-08 |Residual: 8.7546e-09 |A: 3.0806e-08| Relative Norm : 1.3522e-10
Arc-Length Step 219 :
Iteration: 0
|Total Norm: 7.4560e+02 |Residual: 7.4560e+02 |A: 1.2322e-07| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 3.5456e+01 |Residual: 3.3207e+01 |A: 1.2427e+01| Relative Norm : 4.7554e-02
Iteration: 2
|Total Norm: 1.7653e+01 |Residual: 1.4948e+01 |A: 9.3903e+00| Relative Norm : 2.3676e-02
Iteration: 3
|Total Norm: 3.3130e-02 |Residual: 2.2872e-02 |A: 2.3969e-02| Relative Norm : 4.4434e-05
Iteration: 4
|Total Norm: 9.1135e-06 |Residual: 9.0000e-06 |A: 1.4337e-06| Relative Norm : 1.2223e-08
Iteration: 5
|Total Norm: 1.0683e-09 |Residual: 1.0683e-09 |A: 0.0000e+00| Relative Norm : 1.4328e-12
Arc-Length Step 220 :
Iteration: 0
|Total Norm: 1.0701e+03 |Residual: 1.0701e+03 |A: 1.1369e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 9.8752e+01 |Residual: 9.8398e+01 |A: 8.3598e+00| Relative Norm : 9.2283e-02
Iteration: 2
|Total Norm: 1.2308e+02 |Residual: 1.2203e+02 |A: 1.6074e+01| Relative Norm : 1.1502e-01
Iteration: 3
|Total Norm: 4.3684e+00 |Residual: 4.2812e+00 |A: 8.6845e-01| Relative Norm : 4.0822e-03
Iteration: 4
|Total Norm: 1.6569e-01 |Residual: 1.6203e-01 |A: 3.4665e-02| Relative Norm : 1.5484e-04
Iteration: 5
|Total Norm: 1.0304e-05 |Residual: 1.0145e-05 |A: 1.8055e-06| Relative Norm : 9.6293e-09
Iteration: 6
|Total Norm: 1.1420e-09 |Residual: 1.1420e-09 |A: 2.2737e-13| Relative Norm : 1.0672e-12
Arc-Length Step 221 :
Iteration: 0
|Total Norm: 1.1815e+03 |Residual: 1.1815e+03 |A: -3.4106e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.1866e+02 |Residual: 1.1850e+02 |A: 6.3336e+00| Relative Norm : 1.0044e-01
Iteration: 2
|Total Norm: 1.4207e+02 |Residual: 1.4160e+02 |A: 1.1505e+01| Relative Norm : 1.2025e-01
Iteration: 3
|Total Norm: 6.1628e+00 |Residual: 6.0609e+00 |A: 1.1161e+00| Relative Norm : 5.2162e-03
Iteration: 4
|Total Norm: 2.5933e-01 |Residual: 2.5448e-01 |A: 4.9899e-02| Relative Norm : 2.1950e-04
Iteration: 5
|Total Norm: 3.0564e-05 |Residual: 3.0247e-05 |A: 4.3945e-06| Relative Norm : 2.5870e-08
Iteration: 6
|Total Norm: 1.3148e-09 |Residual: 1.3148e-09 |A: 9.0949e-13| Relative Norm : 1.1129e-12
Arc-Length Step 222 :
Iteration: 0
|Total Norm: 1.3159e+03 |Residual: 1.3159e+03 |A: 4.0927e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.3634e+02 |Residual: 2.3596e+02 |A: 1.3565e+01| Relative Norm : 1.7961e-01
Iteration: 2
|Total Norm: 3.8384e+02 |Residual: 3.8286e+02 |A: 2.7351e+01| Relative Norm : 2.9169e-01
Iteration: 3
|Total Norm: 1.8652e+02 |Residual: 1.8429e+02 |A: 2.8758e+01| Relative Norm : 1.4174e-01
Iteration: 4
|Total Norm: 1.1752e+02 |Residual: 1.1628e+02 |A: 1.7034e+01| Relative Norm : 8.9305e-02
Iteration: 5
|Total Norm: 1.9127e+01 |Residual: 1.8930e+01 |A: 2.7388e+00| Relative Norm : 1.4535e-02
Iteration: 6
|Total Norm: 8.3428e-01 |Residual: 8.1784e-01 |A: 1.6483e-01| Relative Norm : 6.3400e-04
Iteration: 7
|Total Norm: 9.0017e-04 |Residual: 8.7783e-04 |A: 1.9930e-04| Relative Norm : 6.8407e-07
Iteration: 8
|Total Norm: 2.1936e-09 |Residual: 2.1605e-09 |A: 3.7971e-10| Relative Norm : 1.6670e-12
Arc-Length Step 223 :
Iteration: 0
|Total Norm: 1.4812e+03 |Residual: 1.4812e+03 |A: 3.7517e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.5638e+03 |Residual: 2.5510e+03 |A: 2.5634e+02| Relative Norm : 1.7309e+00
Iteration: 2
|Total Norm: 4.8417e+03 |Residual: 4.6260e+03 |A: 1.4290e+03| Relative Norm : 3.2687e+00
Iteration: 3
|Total Norm: 1.9510e+04 |Residual: 1.9221e+04 |A: 3.3459e+03| Relative Norm : 1.3172e+01
Iteration: 4
|Total Norm: 1.4213e+05 |Residual: 1.3929e+05 |A: 2.8266e+04| Relative Norm : 9.5951e+01
Iteration: 5
|Total Norm: 7.9388e+06 |Residual: 7.9141e+06 |A: 6.2674e+05| Relative Norm : 5.3596e+03
Iteration: 6
|Total Norm: 3.4020e+07 |Residual: 3.3974e+07 |A: 1.7582e+06| Relative Norm : 2.2967e+04
Iteration: 7
|Total Norm: 1.2595e+07 |Residual: 1.1766e+07 |A: 4.4933e+06| Relative Norm : 8.5029e+03
Iteration: 8
|Total Norm: 1.4171e+07 |Residual: 1.4091e+07 |A: 1.5075e+06| Relative Norm : 9.5671e+03
Iteration: 9
|Total Norm: 1.7622e+07 |Residual: 1.7612e+07 |A: 5.9058e+05| Relative Norm : 1.1896e+04
Arc-Length Step 223 :
Iteration: 0
|Total Norm: 5.4875e+02 |Residual: 5.4875e+02 |A: 9.2427e-11| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 6.3972e+00 |Residual: 6.3535e+00 |A: 7.4642e-01| Relative Norm : 1.1658e-02
Iteration: 2
|Total Norm: 7.4488e-01 |Residual: 4.5637e-01 |A: 5.8870e-01| Relative Norm : 1.3574e-03
Iteration: 3
|Total Norm: 3.1730e-04 |Residual: 1.4049e-04 |A: 2.8450e-04| Relative Norm : 5.7822e-07
Iteration: 4
|Total Norm: 1.1077e-09 |Residual: 1.1040e-09 |A: 8.9358e-11| Relative Norm : 2.0185e-12
Arc-Length Step 224 :
Iteration: 0
|Total Norm: 4.0105e+02 |Residual: 4.0105e+02 |A: 8.9130e-11| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.5898e+00 |Residual: 2.5878e+00 |A: 1.0137e-01| Relative Norm : 6.4576e-03
Iteration: 2
|Total Norm: 1.2687e-01 |Residual: 8.0794e-02 |A: 9.7816e-02| Relative Norm : 3.1634e-04
Iteration: 3
|Total Norm: 8.8747e-06 |Residual: 4.1615e-06 |A: 7.8385e-06| Relative Norm : 2.2129e-08
Iteration: 4
|Total Norm: 1.2036e-09 |Residual: 1.2036e-09 |A: 5.6843e-14| Relative Norm : 3.0010e-12
Arc-Length Step 225 :
Iteration: 0
|Total Norm: 1.3031e+03 |Residual: 1.3031e+03 |A: 2.5011e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 6.3177e+01 |Residual: 6.2565e+01 |A: 8.7747e+00| Relative Norm : 4.8483e-02
Iteration: 2
|Total Norm: 6.1089e+01 |Residual: 6.0503e+01 |A: 8.4402e+00| Relative Norm : 4.6880e-02
Iteration: 3
|Total Norm: 4.6322e-01 |Residual: 4.4484e-01 |A: 1.2919e-01| Relative Norm : 3.5548e-04
Iteration: 4
|Total Norm: 2.7132e-03 |Residual: 2.5572e-03 |A: 9.0670e-04| Relative Norm : 2.0821e-06
Iteration: 5
|Total Norm: 2.0160e-09 |Residual: 1.9602e-09 |A: 4.7112e-10| Relative Norm : 1.5471e-12
Arc-Length Step 226 :
Iteration: 0
|Total Norm: 1.9681e+03 |Residual: 1.9681e+03 |A: 4.6975e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.2118e+02 |Residual: 1.1939e+02 |A: 2.0724e+01| Relative Norm : 6.1571e-02
Iteration: 2
|Total Norm: 7.8167e+01 |Residual: 7.7173e+01 |A: 1.2425e+01| Relative Norm : 3.9718e-02
Iteration: 3
|Total Norm: 1.5607e+00 |Residual: 1.5540e+00 |A: 1.4531e-01| Relative Norm : 7.9304e-04
Iteration: 4
|Total Norm: 1.1956e-02 |Residual: 1.0163e-02 |A: 6.2968e-03| Relative Norm : 6.0748e-06
Iteration: 5
|Total Norm: 3.0973e-08 |Residual: 2.5539e-08 |A: 1.7525e-08| Relative Norm : 1.5738e-11
Arc-Length Step 227 :
Iteration: 0
|Total Norm: 2.3644e+03 |Residual: 2.3644e+03 |A: 1.7518e-08| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 6.9715e+01 |Residual: 6.9362e+01 |A: 7.0076e+00| Relative Norm : 2.9486e-02
Iteration: 2
|Total Norm: 2.8624e+01 |Residual: 2.8182e+01 |A: 5.0096e+00| Relative Norm : 1.2106e-02
Iteration: 3
|Total Norm: 5.2141e-02 |Residual: 5.0719e-02 |A: 1.2093e-02| Relative Norm : 2.2052e-05
Iteration: 4
|Total Norm: 4.6962e-05 |Residual: 3.6376e-05 |A: 2.9703e-05| Relative Norm : 1.9862e-08
Iteration: 5
|Total Norm: 1.0528e-09 |Residual: 1.0528e-09 |A: 0.0000e+00| Relative Norm : 4.4527e-13
Arc-Length Step 228 :
Iteration: 0
|Total Norm: 3.0023e+03 |Residual: 3.0023e+03 |A: 5.9117e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.3747e+02 |Residual: 1.3590e+02 |A: 2.0663e+01| Relative Norm : 4.5787e-02
Iteration: 2
|Total Norm: 1.6814e+02 |Residual: 1.3248e+02 |A: 1.0354e+02| Relative Norm : 5.6003e-02
Iteration: 3
|Total Norm: 3.0487e+00 |Residual: 2.0867e+00 |A: 2.2226e+00| Relative Norm : 1.0155e-03
Iteration: 4
|Total Norm: 4.7892e-02 |Residual: 3.9473e-02 |A: 2.7121e-02| Relative Norm : 1.5952e-05
Iteration: 5
|Total Norm: 6.1292e-07 |Residual: 5.6737e-07 |A: 2.3187e-07| Relative Norm : 2.0415e-10
Arc-Length Step 229 :
Iteration: 0
|Total Norm: 4.2273e+03 |Residual: 4.2273e+03 |A: 2.3187e-07| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 6.0648e+02 |Residual: 4.0987e+02 |A: 4.4702e+02| Relative Norm : 1.4347e-01
Iteration: 2
|Total Norm: 7.6609e+02 |Residual: 7.5077e+02 |A: 1.5247e+02| Relative Norm : 1.8123e-01
Iteration: 3
|Total Norm: 1.4552e+02 |Residual: 1.1668e+02 |A: 8.6953e+01| Relative Norm : 3.4424e-02
Iteration: 4
|Total Norm: 8.6588e+01 |Residual: 7.0798e+01 |A: 4.9851e+01| Relative Norm : 2.0483e-02
Iteration: 5
|Total Norm: 1.5412e+01 |Residual: 1.5394e+01 |A: 7.3733e-01| Relative Norm : 3.6458e-03
Iteration: 6
|Total Norm: 3.5997e-02 |Residual: 3.5145e-02 |A: 7.7892e-03| Relative Norm : 8.5155e-06
Iteration: 7
|Total Norm: 2.1651e-05 |Residual: 1.8444e-05 |A: 1.1339e-05| Relative Norm : 5.1217e-09
Iteration: 8
|Total Norm: 9.5483e-10 |Residual: 9.5483e-10 |A: 0.0000e+00| Relative Norm : 2.2587e-13
Arc-Length Step 230 :
Iteration: 0
|Total Norm: 7.0932e+03 |Residual: 7.0932e+03 |A: 4.5475e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 4.1795e+03 |Residual: 3.9790e+03 |A: 1.2787e+03| Relative Norm : 5.8922e-01
Iteration: 2
|Total Norm: 2.8446e+03 |Residual: 2.5511e+03 |A: 1.2585e+03| Relative Norm : 4.0103e-01
Iteration: 3
|Total Norm: 3.3675e+04 |Residual: 3.2291e+04 |A: 9.5525e+03| Relative Norm : 4.7474e+00
Iteration: 4
|Total Norm: 1.4812e+05 |Residual: 1.3506e+05 |A: 6.0813e+04| Relative Norm : 2.0882e+01
Iteration: 5
|Total Norm: 4.3069e+05 |Residual: 3.1690e+05 |A: 2.9166e+05| Relative Norm : 6.0718e+01
Iteration: 6
|Total Norm: 6.3507e+05 |Residual: 6.0241e+05 |A: 2.0106e+05| Relative Norm : 8.9532e+01
Iteration: 7
|Total Norm: 1.1098e+08 |Residual: 1.1098e+08 |A: 3.7808e+05| Relative Norm : 1.5646e+04
Iteration: 8
|Total Norm: 6.1774e+10 |Residual: 6.1767e+10 |A: 9.3599e+08| Relative Norm : 8.7089e+06
Iteration: 9
|Total Norm: 3.1257e+09 |Residual: 2.9307e+09 |A: 1.0865e+09| Relative Norm : 4.4065e+05
Arc-Length Step 230 :
Iteration: 0
|Total Norm: 2.5675e+03 |Residual: 2.5675e+03 |A: 1.0800e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 4.9094e+02 |Residual: 4.8236e+02 |A: 9.1373e+01| Relative Norm : 1.9121e-01
Iteration: 2
|Total Norm: 1.4101e+03 |Residual: 1.3578e+03 |A: 3.8044e+02| Relative Norm : 5.4919e-01
Iteration: 3
|Total Norm: 4.6584e+03 |Residual: 4.1995e+03 |A: 2.0161e+03| Relative Norm : 1.8143e+00
Iteration: 4
|Total Norm: 4.8766e+03 |Residual: 7.2591e+02 |A: 4.8223e+03| Relative Norm : 1.8993e+00
Iteration: 5
|Total Norm: 2.0275e+03 |Residual: 1.5398e+03 |A: 1.3190e+03| Relative Norm : 7.8966e-01
Iteration: 6
|Total Norm: 3.9721e+04 |Residual: 3.9071e+04 |A: 7.1546e+03| Relative Norm : 1.5470e+01
Iteration: 7
|Total Norm: 4.6565e+05 |Residual: 7.0071e+04 |A: 4.6035e+05| Relative Norm : 1.8136e+02
Iteration: 8
|Total Norm: 3.9560e+05 |Residual: 3.7775e+05 |A: 1.1750e+05| Relative Norm : 1.5408e+02
Iteration: 9
|Total Norm: 9.2964e+04 |Residual: 8.6275e+04 |A: 3.4624e+04| Relative Norm : 3.6207e+01
Arc-Length Step 230 :
Iteration: 0
|Total Norm: 4.7158e+02 |Residual: 4.7158e+02 |A: -6.3949e-13| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 3.5549e+00 |Residual: 3.5026e+00 |A: 6.0736e-01| Relative Norm : 7.5382e-03
Iteration: 2
|Total Norm: 8.0191e-01 |Residual: 6.4124e-01 |A: 4.8154e-01| Relative Norm : 1.7005e-03
Iteration: 3
|Total Norm: 1.0707e-02 |Residual: 1.0289e-02 |A: 2.9610e-03| Relative Norm : 2.2704e-05
Iteration: 4
|Total Norm: 4.9540e-07 |Residual: 4.8168e-07 |A: 1.1577e-07| Relative Norm : 1.0505e-09
Arc-Length Step 231 :
Iteration: 0
|Total Norm: 1.3781e+02 |Residual: 1.3781e+02 |A: 1.1577e-07| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 3.4948e-01 |Residual: 3.2489e-01 |A: 1.2876e-01| Relative Norm : 2.5359e-03
Iteration: 2
|Total Norm: 5.3273e-03 |Residual: 3.4354e-03 |A: 4.0716e-03| Relative Norm : 3.8656e-05
Iteration: 3
|Total Norm: 8.4141e-07 |Residual: 8.1290e-07 |A: 2.1719e-07| Relative Norm : 6.1055e-09
Arc-Length Step 232 :
Iteration: 0
|Total Norm: 4.4092e+02 |Residual: 4.4092e+02 |A: 8.6875e-07| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.5362e+00 |Residual: 2.3988e+00 |A: 8.2354e-01| Relative Norm : 5.7521e-03
Iteration: 2
|Total Norm: 2.9631e-01 |Residual: 1.9038e-01 |A: 2.2706e-01| Relative Norm : 6.7204e-04
Iteration: 3
|Total Norm: 6.9514e-04 |Residual: 6.7427e-04 |A: 1.6903e-04| Relative Norm : 1.5766e-06
Iteration: 4
|Total Norm: 1.4196e-09 |Residual: 1.4163e-09 |A: 9.5895e-11| Relative Norm : 3.2196e-12
Arc-Length Step 233 :
Iteration: 0
|Total Norm: 1.9353e+03 |Residual: 1.9353e+03 |A: 3.8665e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 3.6218e+01 |Residual: 3.5628e+01 |A: 6.5091e+00| Relative Norm : 1.8714e-02
Iteration: 2
|Total Norm: 1.5492e+01 |Residual: 8.6702e+00 |A: 1.2839e+01| Relative Norm : 8.0049e-03
Iteration: 3
|Total Norm: 5.1601e-01 |Residual: 4.9874e-01 |A: 1.3239e-01| Relative Norm : 2.6663e-04
Iteration: 4
|Total Norm: 1.5820e-04 |Residual: 1.5021e-04 |A: 4.9647e-05| Relative Norm : 8.1744e-08
Iteration: 5
|Total Norm: 1.0645e-09 |Residual: 1.0587e-09 |A: 1.1073e-10| Relative Norm : 5.5001e-13
Arc-Length Step 234 :
Iteration: 0
|Total Norm: 8.6819e+03 |Residual: 8.6819e+03 |A: 4.4133e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 4.5875e+02 |Residual: 3.8902e+02 |A: 2.4313e+02| Relative Norm : 5.2840e-02
Iteration: 2
|Total Norm: 6.1668e+02 |Residual: 5.9642e+02 |A: 1.5677e+02| Relative Norm : 7.1030e-02
Iteration: 3
|Total Norm: 2.3875e+05 |Residual: 2.3802e+05 |A: 1.8636e+04| Relative Norm : 2.7499e+01
Iteration: 4
|Total Norm: 1.3496e+06 |Residual: 1.3394e+06 |A: 1.6569e+05| Relative Norm : 1.5545e+02
Iteration: 5
|Total Norm: 6.1870e+06 |Residual: 6.0861e+06 |A: 1.1128e+06| Relative Norm : 7.1263e+02
Iteration: 6
|Total Norm: 1.2734e+08 |Residual: 1.2731e+08 |A: 2.5973e+06| Relative Norm : 1.4667e+04
Iteration: 7
|Total Norm: 4.0170e+10 |Residual: 2.9238e+10 |A: 2.7545e+10| Relative Norm : 4.6268e+06
Iteration: 8
|Total Norm: 1.0216e+10 |Residual: 7.5233e+09 |A: 6.9116e+09| Relative Norm : 1.1767e+06
Iteration: 9
|Total Norm: 8.5914e+10 |Residual: 8.5882e+10 |A: 2.3515e+09| Relative Norm : 9.8958e+06
Arc-Length Step 234 :
Iteration: 0
|Total Norm: 2.7572e+03 |Residual: 2.7572e+03 |A: 1.1022e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 4.9316e+01 |Residual: 4.8029e+01 |A: 1.1190e+01| Relative Norm : 1.7886e-02
Iteration: 2
|Total Norm: 4.0207e+01 |Residual: 3.3553e+01 |A: 2.2154e+01| Relative Norm : 1.4582e-02
Iteration: 3
|Total Norm: 1.2237e+00 |Residual: 1.1590e+00 |A: 3.9287e-01| Relative Norm : 4.4384e-04
Iteration: 4
|Total Norm: 9.3618e-04 |Residual: 5.9023e-04 |A: 7.2668e-04| Relative Norm : 3.3954e-07
Iteration: 5
|Total Norm: 2.5367e-09 |Residual: 1.4744e-09 |A: 2.0642e-09| Relative Norm : 9.2003e-13
Arc-Length Step 235 :
Iteration: 0
|Total Norm: 2.3826e+03 |Residual: 2.3826e+03 |A: 2.0638e-09| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 4.8697e+01 |Residual: 4.6944e+01 |A: 1.2948e+01| Relative Norm : 2.0438e-02
Iteration: 2
|Total Norm: 5.0096e+01 |Residual: 4.9600e+01 |A: 7.0371e+00| Relative Norm : 2.1025e-02
Iteration: 3
|Total Norm: 1.2530e-01 |Residual: 1.1424e-01 |A: 5.1485e-02| Relative Norm : 5.2589e-05
Iteration: 4
|Total Norm: 2.0473e-04 |Residual: 2.0415e-04 |A: 1.5465e-05| Relative Norm : 8.5927e-08
Iteration: 5
|Total Norm: 1.3235e-09 |Residual: 1.3235e-09 |A: 2.2737e-13| Relative Norm : 5.5547e-13
Arc-Length Step 236 :
Iteration: 0
|Total Norm: 5.7146e+03 |Residual: 5.7146e+03 |A: 8.4128e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.1676e+02 |Residual: 1.6013e+02 |A: 1.4608e+02| Relative Norm : 3.7930e-02
Iteration: 2
|Total Norm: 1.2731e+02 |Residual: 1.2669e+02 |A: 1.2481e+01| Relative Norm : 2.2278e-02
Iteration: 3
|Total Norm: 1.1902e+00 |Residual: 1.1860e+00 |A: 1.0045e-01| Relative Norm : 2.0828e-04
Iteration: 4
|Total Norm: 7.7612e-02 |Residual: 7.7246e-02 |A: 7.5295e-03| Relative Norm : 1.3581e-05
Iteration: 5
|Total Norm: 2.0895e-07 |Residual: 2.0712e-07 |A: 2.7590e-08| Relative Norm : 3.6564e-11
Arc-Length Step 237 :
Iteration: 0
|Total Norm: 5.2501e+03 |Residual: 5.2501e+03 |A: 2.7587e-08| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.1567e+03 |Residual: 3.2826e+02 |A: 1.1091e+03| Relative Norm : 2.2032e-01
Iteration: 2
|Total Norm: 9.6729e+02 |Residual: 5.9682e+02 |A: 7.6121e+02| Relative Norm : 1.8424e-01
Iteration: 3
|Total Norm: 5.9852e+03 |Residual: 5.9528e+03 |A: 6.2174e+02| Relative Norm : 1.1400e+00
Iteration: 4
|Total Norm: 3.8245e+02 |Residual: 3.7259e+02 |A: 8.6266e+01| Relative Norm : 7.2847e-02
Iteration: 5
|Total Norm: 9.5011e+03 |Residual: 9.4673e+03 |A: 8.0039e+02| Relative Norm : 1.8097e+00
Iteration: 6
|Total Norm: 3.8582e+08 |Residual: 3.5478e+08 |A: 1.5162e+08| Relative Norm : 7.3489e+04
Iteration: 7
|Total Norm: 1.9481e+08 |Residual: 1.9069e+08 |A: 3.9836e+07| Relative Norm : 3.7105e+04
Iteration: 8
|Total Norm: 2.0342e+10 |Residual: 2.0341e+10 |A: 1.9595e+08| Relative Norm : 3.8746e+06
Iteration: 9
|Total Norm: 8.7092e+09 |Residual: 8.7084e+09 |A: 1.2071e+08| Relative Norm : 1.6589e+06
Arc-Length Step 237 :
Iteration: 0
|Total Norm: 1.9002e+03 |Residual: 1.9002e+03 |A: 6.8959e-09| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.8074e+01 |Residual: 2.4439e+01 |A: 1.3816e+01| Relative Norm : 1.4775e-02
Iteration: 2
|Total Norm: 2.5569e+01 |Residual: 2.5559e+01 |A: 7.0903e-01| Relative Norm : 1.3456e-02
Iteration: 3
|Total Norm: 1.1378e-02 |Residual: 1.1347e-02 |A: 8.3858e-04| Relative Norm : 5.9881e-06
Iteration: 4
|Total Norm: 1.4197e-05 |Residual: 1.4182e-05 |A: 6.3529e-07| Relative Norm : 7.4713e-09
Iteration: 5
|Total Norm: 1.0874e-09 |Residual: 1.0874e-09 |A: -1.1369e-13| Relative Norm : 5.7228e-13
Arc-Length Step 238 :
Iteration: 0
|Total Norm: 8.8522e+02 |Residual: 8.8522e+02 |A: -1.9327e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.6199e+01 |Residual: 1.6171e+01 |A: 9.4822e-01| Relative Norm : 1.8299e-02
Iteration: 2
|Total Norm: 1.7340e+01 |Residual: 1.7321e+01 |A: 8.2754e-01| Relative Norm : 1.9589e-02
Iteration: 3
|Total Norm: 4.3043e-03 |Residual: 4.2452e-03 |A: 7.1101e-04| Relative Norm : 4.8624e-06
Iteration: 4
|Total Norm: 1.8061e-06 |Residual: 1.8049e-06 |A: 6.6755e-08| Relative Norm : 2.0403e-09
Iteration: 5
|Total Norm: 1.0582e-09 |Residual: 1.0582e-09 |A: -5.6843e-14| Relative Norm : 1.1954e-12
Arc-Length Step 239 :
Iteration: 0
|Total Norm: 2.2503e+03 |Residual: 2.2503e+03 |A: 2.7285e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 7.4322e+01 |Residual: 6.0972e+01 |A: 4.2498e+01| Relative Norm : 3.3028e-02
Iteration: 2
|Total Norm: 4.5114e+01 |Residual: 4.4144e+01 |A: 9.3039e+00| Relative Norm : 2.0048e-02
Iteration: 3
|Total Norm: 1.4630e-01 |Residual: 1.4406e-01 |A: 2.5495e-02| Relative Norm : 6.5013e-05
Iteration: 4
|Total Norm: 8.1707e-04 |Residual: 8.1682e-04 |A: 2.0349e-05| Relative Norm : 3.6310e-07
Iteration: 5
|Total Norm: 1.1400e-09 |Residual: 1.1400e-09 |A: 1.3642e-12| Relative Norm : 5.0661e-13
Arc-Length Step 240 :
Iteration: 0
|Total Norm: 2.3773e+03 |Residual: 2.3773e+03 |A: 4.5475e-13| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.0282e+02 |Residual: 8.3080e+01 |A: 6.0572e+01| Relative Norm : 4.3250e-02
Iteration: 2
|Total Norm: 6.1141e+01 |Residual: 5.8109e+01 |A: 1.9014e+01| Relative Norm : 2.5719e-02
Iteration: 3
|Total Norm: 4.5304e-01 |Residual: 4.3928e-01 |A: 1.1081e-01| Relative Norm : 1.9057e-04
Iteration: 4
|Total Norm: 3.9490e-03 |Residual: 3.9456e-03 |A: 1.6360e-04| Relative Norm : 1.6612e-06
Iteration: 5
|Total Norm: 2.3160e-09 |Residual: 2.3145e-09 |A: 8.5493e-11| Relative Norm : 9.7424e-13
Arc-Length Step 241 :
Iteration: 0
|Total Norm: 1.7985e+03 |Residual: 1.7985e+03 |A: 9.3451e-11| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 9.3428e+01 |Residual: 9.1883e+01 |A: 1.6922e+01| Relative Norm : 5.1947e-02
Iteration: 2
|Total Norm: 7.0916e+01 |Residual: 7.0801e+01 |A: 4.0311e+00| Relative Norm : 3.9430e-02
Iteration: 3
|Total Norm: 5.3185e-01 |Residual: 5.3159e-01 |A: 1.6730e-02| Relative Norm : 2.9572e-04
Iteration: 4
|Total Norm: 6.7040e-03 |Residual: 6.7025e-03 |A: 1.4202e-04| Relative Norm : 3.7275e-06
Iteration: 5
|Total Norm: 5.4836e-09 |Residual: 5.4823e-09 |A: 1.2324e-10| Relative Norm : 3.0490e-12
Arc-Length Step 242 :
Iteration: 0
|Total Norm: 1.4271e+03 |Residual: 1.4271e+03 |A: 1.1687e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 4.0067e+01 |Residual: 3.8541e+01 |A: 1.0950e+01| Relative Norm : 2.8076e-02
Iteration: 2
|Total Norm: 3.1846e+01 |Residual: 3.1742e+01 |A: 2.5667e+00| Relative Norm : 2.2316e-02
Iteration: 3
|Total Norm: 9.9033e-02 |Residual: 9.8726e-02 |A: 7.7955e-03| Relative Norm : 6.9396e-05
Iteration: 4
|Total Norm: 2.8066e-04 |Residual: 2.8009e-04 |A: 1.7744e-05| Relative Norm : 1.9667e-07
Iteration: 5
|Total Norm: 9.9881e-10 |Residual: 9.9881e-10 |A: 4.5475e-13| Relative Norm : 6.9990e-13
Arc-Length Step 243 :
Iteration: 0
|Total Norm: 1.1732e+03 |Residual: 1.1732e+03 |A: -6.5938e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.3115e+01 |Residual: 2.2542e+01 |A: 5.1133e+00| Relative Norm : 1.9702e-02
Iteration: 2
|Total Norm: 1.7354e+01 |Residual: 1.7330e+01 |A: 9.0387e-01| Relative Norm : 1.4791e-02
Iteration: 3
|Total Norm: 1.5362e-02 |Residual: 1.5326e-02 |A: 1.0497e-03| Relative Norm : 1.3094e-05
Iteration: 4
|Total Norm: 1.1499e-05 |Residual: 1.1480e-05 |A: 6.5800e-07| Relative Norm : 9.8012e-09
Iteration: 5
|Total Norm: 1.2466e-09 |Residual: 1.2466e-09 |A: 0.0000e+00| Relative Norm : 1.0626e-12
Arc-Length Step 244 :
Iteration: 0
|Total Norm: 9.9143e+02 |Residual: 9.9143e+02 |A: -3.6380e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.9789e+01 |Residual: 1.9569e+01 |A: 2.9453e+00| Relative Norm : 1.9960e-02
Iteration: 2
|Total Norm: 1.5800e+01 |Residual: 1.5787e+01 |A: 6.3948e-01| Relative Norm : 1.5936e-02
Iteration: 3
|Total Norm: 1.0727e-02 |Residual: 1.0709e-02 |A: 6.3270e-04| Relative Norm : 1.0820e-05
Iteration: 4
|Total Norm: 6.3639e-06 |Residual: 6.3546e-06 |A: 3.4456e-07| Relative Norm : 6.4189e-09
Iteration: 5
|Total Norm: 1.2647e-09 |Residual: 1.2647e-09 |A: 0.0000e+00| Relative Norm : 1.2756e-12
Arc-Length Step 245 :
Iteration: 0
|Total Norm: 8.5642e+02 |Residual: 8.5642e+02 |A: 1.5916e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.1798e+01 |Residual: 2.1706e+01 |A: 2.0026e+00| Relative Norm : 2.5452e-02
Iteration: 2
|Total Norm: 1.9324e+01 |Residual: 1.9310e+01 |A: 7.3712e-01| Relative Norm : 2.2564e-02
Iteration: 3
|Total Norm: 1.8777e-02 |Residual: 1.8749e-02 |A: 1.0240e-03| Relative Norm : 2.1925e-05
Iteration: 4
|Total Norm: 1.7628e-05 |Residual: 1.7604e-05 |A: 9.2840e-07| Relative Norm : 2.0583e-08
Iteration: 5
|Total Norm: 1.2375e-09 |Residual: 1.2375e-09 |A: 2.2737e-13| Relative Norm : 1.4449e-12
Arc-Length Step 246 :
Iteration: 0
|Total Norm: 7.5324e+02 |Residual: 7.5324e+02 |A: -1.5916e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 3.4713e+01 |Residual: 3.4659e+01 |A: 1.9343e+00| Relative Norm : 4.6084e-02
Iteration: 2
|Total Norm: 3.6767e+01 |Residual: 3.6738e+01 |A: 1.4618e+00| Relative Norm : 4.8811e-02
Iteration: 3
|Total Norm: 1.2593e-01 |Residual: 1.2575e-01 |A: 6.7299e-03| Relative Norm : 1.6718e-04
Iteration: 4
|Total Norm: 4.9953e-04 |Residual: 4.9885e-04 |A: 2.5950e-05| Relative Norm : 6.6317e-07
Iteration: 5
|Total Norm: 9.4114e-10 |Residual: 9.4113e-10 |A: 1.3642e-12| Relative Norm : 1.2494e-12
Arc-Length Step 247 :
Iteration: 0
|Total Norm: 6.7252e+02 |Residual: 6.7252e+02 |A: 1.1369e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.7994e+02 |Residual: 1.7978e+02 |A: 7.6384e+00| Relative Norm : 2.6756e-01
Iteration: 2
|Total Norm: 4.1296e+02 |Residual: 4.1253e+02 |A: 1.8719e+01| Relative Norm : 6.1404e-01
Iteration: 3
|Total Norm: 8.9412e+02 |Residual: 8.9287e+02 |A: 4.7281e+01| Relative Norm : 1.3295e+00
Iteration: 4
|Total Norm: 1.1799e+03 |Residual: 1.1773e+03 |A: 7.7535e+01| Relative Norm : 1.7544e+00
Iteration: 5
|Total Norm: 2.3185e+03 |Residual: 2.3085e+03 |A: 2.1493e+02| Relative Norm : 3.4475e+00
Iteration: 6
|Total Norm: 1.8253e+03 |Residual: 1.7750e+03 |A: 4.2537e+02| Relative Norm : 2.7141e+00
Iteration: 7
|Total Norm: 1.4270e+05 |Residual: 1.4190e+05 |A: 1.5094e+04| Relative Norm : 2.1218e+02
Iteration: 8
|Total Norm: 4.2098e+05 |Residual: 4.2087e+05 |A: 9.4799e+03| Relative Norm : 6.2596e+02
Iteration: 9
|Total Norm: 1.9782e+05 |Residual: 1.9777e+05 |A: 4.4773e+03| Relative Norm : 2.9414e+02
Arc-Length Step 247 :
Iteration: 0
|Total Norm: 2.5021e+02 |Residual: 2.5021e+02 |A: 3.9790e-13| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.0364e+00 |Residual: 1.0303e+00 |A: 1.1243e-01| Relative Norm : 4.1423e-03
Iteration: 2
|Total Norm: 3.5799e-02 |Residual: 3.5718e-02 |A: 2.3966e-03| Relative Norm : 1.4308e-04
Iteration: 3
|Total Norm: 4.4977e-08 |Residual: 4.4669e-08 |A: 5.2487e-09| Relative Norm : 1.7976e-10
Arc-Length Step 248 :
Iteration: 0
|Total Norm: 1.5407e+02 |Residual: 1.5407e+02 |A: 5.2514e-09| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 3.2422e-01 |Residual: 3.2218e-01 |A: 3.6243e-02| Relative Norm : 2.1043e-03
Iteration: 2
|Total Norm: 3.0819e-03 |Residual: 3.0731e-03 |A: 2.3375e-04| Relative Norm : 2.0003e-05
Iteration: 3
|Total Norm: 1.2114e-09 |Residual: 1.2104e-09 |A: 4.8431e-11| Relative Norm : 7.8624e-12
Arc-Length Step 249 :
Iteration: 0
|Total Norm: 4.4380e+02 |Residual: 4.4380e+02 |A: 2.0100e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 5.5111e+00 |Residual: 5.4961e+00 |A: 4.0645e-01| Relative Norm : 1.2418e-02
Iteration: 2
|Total Norm: 1.1541e+00 |Residual: 1.1526e+00 |A: 5.9345e-02| Relative Norm : 2.6005e-03
Iteration: 3
|Total Norm: 5.1185e-05 |Residual: 5.1154e-05 |A: 1.7828e-06| Relative Norm : 1.1533e-07
Iteration: 4
|Total Norm: 1.3790e-09 |Residual: 1.3790e-09 |A: 6.5938e-12| Relative Norm : 3.1073e-12
Arc-Length Step 250 :
Iteration: 0
|Total Norm: 5.5605e+02 |Residual: 5.5605e+02 |A: 6.5938e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.3146e+01 |Residual: 2.3113e+01 |A: 1.2477e+00| Relative Norm : 4.1627e-02
Iteration: 2
|Total Norm: 1.4152e+01 |Residual: 1.4135e+01 |A: 6.7859e-01| Relative Norm : 2.5450e-02
Iteration: 3
|Total Norm: 1.9513e-02 |Residual: 1.9496e-02 |A: 8.1562e-04| Relative Norm : 3.5092e-05
Iteration: 4
|Total Norm: 1.0986e-05 |Residual: 1.0971e-05 |A: 5.7851e-07| Relative Norm : 1.9757e-08
Iteration: 5
|Total Norm: 9.6077e-10 |Residual: 9.6077e-10 |A: 0.0000e+00| Relative Norm : 1.7279e-12
Arc-Length Step 251 :
Iteration: 0
|Total Norm: 5.1328e+02 |Residual: 5.1328e+02 |A: -3.8654e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 9.8492e+00 |Residual: 9.8330e+00 |A: 5.6536e-01| Relative Norm : 1.9189e-02
Iteration: 2
|Total Norm: 3.5849e+00 |Residual: 3.5802e+00 |A: 1.8327e-01| Relative Norm : 6.9843e-03
Iteration: 3
|Total Norm: 6.1168e-04 |Residual: 6.1119e-04 |A: 2.4508e-05| Relative Norm : 1.1917e-06
Iteration: 4
|Total Norm: 1.7873e-08 |Residual: 1.7847e-08 |A: 9.5315e-10| Relative Norm : 3.4820e-11
Arc-Length Step 252 :
Iteration: 0
|Total Norm: 4.7781e+02 |Residual: 4.7781e+02 |A: 9.5133e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 5.7878e+00 |Residual: 5.7779e+00 |A: 3.3934e-01| Relative Norm : 1.2113e-02
Iteration: 2
|Total Norm: 1.3672e+00 |Residual: 1.3652e+00 |A: 7.4025e-02| Relative Norm : 2.8614e-03
Iteration: 3
|Total Norm: 6.1356e-05 |Residual: 6.1301e-05 |A: 2.5859e-06| Relative Norm : 1.2841e-07
Iteration: 4
|Total Norm: 1.0723e-09 |Residual: 1.0722e-09 |A: 1.1823e-11| Relative Norm : 2.2441e-12
Arc-Length Step 253 :
Iteration: 0
|Total Norm: 4.4815e+02 |Residual: 4.4815e+02 |A: 1.4097e-11| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 3.8929e+00 |Residual: 3.8864e+00 |A: 2.2616e-01| Relative Norm : 8.6868e-03
Iteration: 2
|Total Norm: 6.3268e-01 |Residual: 6.3165e-01 |A: 3.6059e-02| Relative Norm : 1.4118e-03
Iteration: 3
|Total Norm: 1.0482e-05 |Residual: 1.0471e-05 |A: 4.8585e-07| Relative Norm : 2.3390e-08
Iteration: 4
|Total Norm: 1.0243e-09 |Residual: 1.0243e-09 |A: 2.2737e-13| Relative Norm : 2.2857e-12
Arc-Length Step 254 :
Iteration: 0
|Total Norm: 4.2316e+02 |Residual: 4.2316e+02 |A: -2.5011e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.8164e+00 |Residual: 2.8120e+00 |A: 1.5820e-01| Relative Norm : 6.6557e-03
Iteration: 2
|Total Norm: 3.2831e-01 |Residual: 3.2772e-01 |A: 1.9595e-02| Relative Norm : 7.7585e-04
Iteration: 3
|Total Norm: 2.4354e-06 |Residual: 2.4321e-06 |A: 1.2564e-07| Relative Norm : 5.7553e-09
Iteration: 4
|Total Norm: 8.3764e-10 |Residual: 8.3764e-10 |A: 0.0000e+00| Relative Norm : 1.9795e-12
Arc-Length Step 255 :
Iteration: 0
|Total Norm: 4.0200e+02 |Residual: 4.0200e+02 |A: 9.0949e-13| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.1328e+00 |Residual: 2.1298e+00 |A: 1.1339e-01| Relative Norm : 5.3055e-03
Iteration: 2
|Total Norm: 1.8371e-01 |Residual: 1.8336e-01 |A: 1.1430e-02| Relative Norm : 4.5700e-04
Iteration: 3
|Total Norm: 6.9145e-07 |Residual: 6.9032e-07 |A: 3.9535e-08| Relative Norm : 1.7200e-09
Arc-Length Step 256 :
Iteration: 0
|Total Norm: 3.8402e+02 |Residual: 3.8402e+02 |A: 3.9534e-08| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.6667e+00 |Residual: 1.6647e+00 |A: 8.2188e-02| Relative Norm : 4.3402e-03
Iteration: 2
|Total Norm: 1.0831e-01 |Residual: 1.0809e-01 |A: 6.9956e-03| Relative Norm : 2.8205e-04
Iteration: 3
|Total Norm: 2.2610e-07 |Residual: 2.2566e-07 |A: 1.4150e-08| Relative Norm : 5.8877e-10
Arc-Length Step 257 :
Iteration: 0
|Total Norm: 3.6872e+02 |Residual: 3.6872e+02 |A: 1.4148e-08| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.3330e+00 |Residual: 1.3317e+00 |A: 5.9727e-02| Relative Norm : 3.6152e-03
Iteration: 2
|Total Norm: 6.6239e-02 |Residual: 6.6091e-02 |A: 4.4227e-03| Relative Norm : 1.7964e-04
Iteration: 3
|Total Norm: 8.1937e-08 |Residual: 8.1751e-08 |A: 5.5256e-09| Relative Norm : 2.2222e-10
Arc-Length Step 258 :
Iteration: 0
|Total Norm: 3.5570e+02 |Residual: 3.5570e+02 |A: 5.5265e-09| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.0855e+00 |Residual: 1.0846e+00 |A: 4.3211e-02| Relative Norm : 3.0517e-03
Iteration: 2
|Total Norm: 4.1525e-02 |Residual: 4.1426e-02 |A: 2.8538e-03| Relative Norm : 1.1674e-04
Iteration: 3
|Total Norm: 3.2028e-08 |Residual: 3.1946e-08 |A: 2.2878e-09| Relative Norm : 9.0041e-11
Arc-Length Step 259 :
Iteration: 0
|Total Norm: 3.4464e+02 |Residual: 3.4464e+02 |A: 2.2869e-09| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 8.9718e-01 |Residual: 8.9665e-01 |A: 3.0914e-02| Relative Norm : 2.6032e-03
Iteration: 2
|Total Norm: 2.6420e-02 |Residual: 2.6355e-02 |A: 1.8594e-03| Relative Norm : 7.6660e-05
Iteration: 3
|Total Norm: 1.3351e-08 |Residual: 1.3314e-08 |A: 9.8271e-10| Relative Norm : 3.8737e-11
Arc-Length Step 260 :
Iteration: 0
|Total Norm: 3.3530e+02 |Residual: 3.3530e+02 |A: 9.8362e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 7.5145e-01 |Residual: 7.5114e-01 |A: 2.1717e-02| Relative Norm : 2.2411e-03
Iteration: 2
|Total Norm: 1.6901e-02 |Residual: 1.6858e-02 |A: 1.2102e-03| Relative Norm : 5.0407e-05
Iteration: 3
|Total Norm: 5.7885e-09 |Residual: 5.7725e-09 |A: 4.3019e-10| Relative Norm : 1.7264e-11
Arc-Length Step 261 :
Iteration: 0
|Total Norm: 3.2747e+02 |Residual: 3.2747e+02 |A: 4.3087e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 6.3775e-01 |Residual: 6.3757e-01 |A: 1.4864e-02| Relative Norm : 1.9475e-03
Iteration: 2
|Total Norm: 1.0762e-02 |Residual: 1.0734e-02 |A: 7.7706e-04| Relative Norm : 3.2865e-05
Iteration: 3
|Total Norm: 2.6693e-09 |Residual: 2.6626e-09 |A: 1.8849e-10| Relative Norm : 8.1513e-12
Arc-Length Step 262 :
Iteration: 0
|Total Norm: 3.2099e+02 |Residual: 3.2099e+02 |A: 1.8827e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 5.4928e-01 |Residual: 5.4919e-01 |A: 9.8363e-03| Relative Norm : 1.7112e-03
Iteration: 2
|Total Norm: 6.7405e-03 |Residual: 6.7231e-03 |A: 4.8412e-04| Relative Norm : 2.0999e-05
Iteration: 3
|Total Norm: 1.4021e-09 |Residual: 1.3998e-09 |A: 8.1172e-11| Relative Norm : 4.3682e-12
Arc-Length Step 263 :
Iteration: 0
|Total Norm: 3.1574e+02 |Residual: 3.1574e+02 |A: 8.0718e-11| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 4.8176e-01 |Residual: 4.8172e-01 |A: 6.2688e-03| Relative Norm : 1.5258e-03
Iteration: 2
|Total Norm: 4.0864e-03 |Residual: 4.0764e-03 |A: 2.8546e-04| Relative Norm : 1.2942e-05
Iteration: 3
|Total Norm: 8.7121e-10 |Residual: 8.7053e-10 |A: 3.4561e-11| Relative Norm : 2.7593e-12
Arc-Length Step 264 :
Iteration: 0
|Total Norm: 3.1161e+02 |Residual: 3.1161e+02 |A: 3.4788e-11| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 4.3256e-01 |Residual: 4.3254e-01 |A: 3.9077e-03| Relative Norm : 1.3881e-03
Iteration: 2
|Total Norm: 2.3422e-03 |Residual: 2.3372e-03 |A: 1.5267e-04| Relative Norm : 7.5162e-06
Iteration: 3
|Total Norm: 9.4519e-10 |Residual: 9.4508e-10 |A: 1.4097e-11| Relative Norm : 3.0332e-12
Arc-Length Step 265 :
Iteration: 0
|Total Norm: 3.0854e+02 |Residual: 3.0854e+02 |A: 1.3870e-11| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 4.0011e-01 |Residual: 4.0010e-01 |A: 2.5785e-03| Relative Norm : 1.2968e-03
Iteration: 2
|Total Norm: 1.2214e-03 |Residual: 1.2195e-03 |A: 6.8023e-05| Relative Norm : 3.9585e-06
Iteration: 3
|Total Norm: 8.3238e-10 |Residual: 8.3236e-10 |A: 5.6843e-12| Relative Norm : 2.6978e-12
Arc-Length Step 266 :
Iteration: 0
|Total Norm: 3.0645e+02 |Residual: 3.0645e+02 |A: 5.6843e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 3.8333e-01 |Residual: 3.8332e-01 |A: 2.1668e-03| Relative Norm : 1.2509e-03
Iteration: 2
|Total Norm: 5.4141e-04 |Residual: 5.4102e-04 |A: 2.0675e-05| Relative Norm : 1.7668e-06
Iteration: 3
|Total Norm: 8.3784e-10 |Residual: 8.3783e-10 |A: 2.2737e-12| Relative Norm : 2.7340e-12
Arc-Length Step 267 :
Iteration: 0
|Total Norm: 3.0530e+02 |Residual: 3.0530e+02 |A: 2.2737e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 3.8118e-01 |Residual: 3.8117e-01 |A: 2.6064e-03| Relative Norm : 1.2485e-03
Iteration: 2
|Total Norm: 1.8048e-04 |Residual: 1.8043e-04 |A: 4.4669e-06| Relative Norm : 5.9116e-07
Iteration: 3
|Total Norm: 6.7308e-10 |Residual: 6.7308e-10 |A: 2.2737e-13| Relative Norm : 2.2047e-12
Arc-Length Step 268 :
Iteration: 0
|Total Norm: 3.0507e+02 |Residual: 3.0507e+02 |A: 1.1369e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 3.9244e-01 |Residual: 3.9242e-01 |A: 3.8715e-03| Relative Norm : 1.2864e-03
Iteration: 2
|Total Norm: 6.2078e-05 |Residual: 5.9782e-05 |A: 1.6727e-05| Relative Norm : 2.0349e-07
Iteration: 3
|Total Norm: 5.8997e-10 |Residual: 5.8997e-10 |A: 2.2737e-13| Relative Norm : 1.9339e-12
Arc-Length Step 269 :
Iteration: 0
|Total Norm: 3.0575e+02 |Residual: 3.0575e+02 |A: -9.0949e-13| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 4.1583e-01 |Residual: 4.1579e-01 |A: 5.9731e-03| Relative Norm : 1.3600e-03
Iteration: 2
|Total Norm: 2.1538e-04 |Residual: 2.0751e-04 |A: 5.7700e-05| Relative Norm : 7.0443e-07
Iteration: 3
|Total Norm: 7.5558e-10 |Residual: 7.5558e-10 |A: 9.0949e-13| Relative Norm : 2.4712e-12
Arc-Length Step 270 :
Iteration: 0
|Total Norm: 3.0733e+02 |Residual: 3.0733e+02 |A: 2.5011e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 4.5025e-01 |Residual: 4.5016e-01 |A: 8.9578e-03| Relative Norm : 1.4650e-03
Iteration: 2
|Total Norm: 5.5061e-04 |Residual: 5.3494e-04 |A: 1.3043e-04| Relative Norm : 1.7916e-06
Iteration: 3
|Total Norm: 5.2175e-10 |Residual: 5.2172e-10 |A: 5.4570e-12| Relative Norm : 1.6977e-12
Arc-Length Step 271 :
Iteration: 0
|Total Norm: 3.0982e+02 |Residual: 3.0982e+02 |A: 5.9117e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 4.9502e-01 |Residual: 4.9485e-01 |A: 1.2910e-02| Relative Norm : 1.5977e-03
Iteration: 2
|Total Norm: 1.0770e-03 |Residual: 1.0497e-03 |A: 2.4106e-04| Relative Norm : 3.4763e-06
Iteration: 3
|Total Norm: 6.6487e-10 |Residual: 6.6467e-10 |A: 1.6144e-11| Relative Norm : 2.1460e-12
Arc-Length Step 272 :
Iteration: 0
|Total Norm: 3.1326e+02 |Residual: 3.1326e+02 |A: 1.7508e-11| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 5.5001e-01 |Residual: 5.4972e-01 |A: 1.7954e-02| Relative Norm : 1.7558e-03
Iteration: 2
|Total Norm: 1.8168e-03 |Residual: 1.7724e-03 |A: 3.9953e-04| Relative Norm : 5.7998e-06
Iteration: 3
|Total Norm: 6.9128e-10 |Residual: 6.8997e-10 |A: 4.2519e-11| Relative Norm : 2.2067e-12
Arc-Length Step 273 :
Iteration: 0
|Total Norm: 3.1768e+02 |Residual: 3.1768e+02 |A: 4.0927e-11| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 6.1568e-01 |Residual: 6.1520e-01 |A: 2.4265e-02| Relative Norm : 1.9381e-03
Iteration: 2
|Total Norm: 2.8066e-03 |Residual: 2.7371e-03 |A: 6.2092e-04| Relative Norm : 8.8349e-06
Iteration: 3
|Total Norm: 8.2048e-10 |Residual: 8.1464e-10 |A: 9.7771e-11| Relative Norm : 2.5828e-12
Arc-Length Step 274 :
Iteration: 0
|Total Norm: 3.2313e+02 |Residual: 3.2313e+02 |A: 1.0027e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 6.9309e-01 |Residual: 6.9235e-01 |A: 3.2076e-02| Relative Norm : 2.1449e-03
Iteration: 2
|Total Norm: 4.1036e-03 |Residual: 3.9974e-03 |A: 9.2742e-04| Relative Norm : 1.2700e-05
Iteration: 3
|Total Norm: 9.2522e-10 |Residual: 9.0067e-10 |A: 2.1168e-10| Relative Norm : 2.8633e-12
Arc-Length Step 275 :
Iteration: 0
|Total Norm: 3.2968e+02 |Residual: 3.2968e+02 |A: 2.1123e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 7.8392e-01 |Residual: 7.8281e-01 |A: 4.1696e-02| Relative Norm : 2.3778e-03
Iteration: 2
|Total Norm: 5.7923e-03 |Residual: 5.6324e-03 |A: 1.3517e-03| Relative Norm : 1.7569e-05
Iteration: 3
|Total Norm: 1.3247e-09 |Residual: 1.2499e-09 |A: 4.3883e-10| Relative Norm : 4.0180e-12
Arc-Length Step 276 :
Iteration: 0
|Total Norm: 3.3743e+02 |Residual: 3.3743e+02 |A: 4.3951e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 8.9053e-01 |Residual: 8.8892e-01 |A: 5.3529e-02| Relative Norm : 2.6392e-03
Iteration: 2
|Total Norm: 7.9950e-03 |Residual: 7.7557e-03 |A: 1.9417e-03| Relative Norm : 2.3694e-05
Iteration: 3
|Total Norm: 2.1180e-09 |Residual: 1.9230e-09 |A: 8.8789e-10| Relative Norm : 6.2771e-12
Arc-Length Step 277 :
Iteration: 0
|Total Norm: 3.4646e+02 |Residual: 3.4646e+02 |A: 8.8789e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.0161e+00 |Residual: 1.0138e+00 |A: 6.8110e-02| Relative Norm : 2.9328e-03
Iteration: 2
|Total Norm: 1.0888e-02 |Residual: 1.0530e-02 |A: 2.7691e-03| Relative Norm : 3.1425e-05
Iteration: 3
|Total Norm: 3.5284e-09 |Residual: 3.0473e-09 |A: 1.7787e-09| Relative Norm : 1.0184e-11
Arc-Length Step 278 :
Iteration: 0
|Total Norm: 3.5693e+02 |Residual: 3.5693e+02 |A: 1.7785e-09| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.1648e+00 |Residual: 1.1616e+00 |A: 8.6146e-02| Relative Norm : 3.2635e-03
Iteration: 2
|Total Norm: 1.4725e-02 |Residual: 1.4188e-02 |A: 3.9417e-03| Relative Norm : 4.1256e-05
Iteration: 3
|Total Norm: 6.2086e-09 |Residual: 5.0864e-09 |A: 3.5602e-09| Relative Norm : 1.7395e-11
Arc-Length Step 279 :
Iteration: 0
|Total Norm: 3.6897e+02 |Residual: 3.6897e+02 |A: 3.5604e-09| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.3422e+00 |Residual: 1.3378e+00 |A: 1.0858e-01| Relative Norm : 3.6376e-03
Iteration: 2
|Total Norm: 1.9882e-02 |Residual: 1.9070e-02 |A: 5.6248e-03| Relative Norm : 5.3885e-05
Iteration: 3
|Total Norm: 1.1448e-08 |Residual: 8.9174e-09 |A: 7.1786e-09| Relative Norm : 3.1026e-11
Arc-Length Step 280 :
Iteration: 0
|Total Norm: 3.8278e+02 |Residual: 3.8278e+02 |A: 7.1780e-09| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.5553e+00 |Residual: 1.5493e+00 |A: 1.3669e-01| Relative Norm : 4.0632e-03
Iteration: 2
|Total Norm: 2.6915e-02 |Residual: 2.5675e-02 |A: 8.0756e-03| Relative Norm : 7.0315e-05
Iteration: 3
|Total Norm: 2.1482e-08 |Residual: 1.5687e-08 |A: 1.4676e-08| Relative Norm : 5.6120e-11
Arc-Length Step 281 :
Iteration: 0
|Total Norm: 3.9858e+02 |Residual: 3.9858e+02 |A: 1.4678e-08| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.8138e+00 |Residual: 1.8056e+00 |A: 1.7223e-01| Relative Norm : 4.5506e-03
Iteration: 2
|Total Norm: 3.6673e-02 |Residual: 3.4756e-02 |A: 1.1702e-02| Relative Norm : 9.2008e-05
Iteration: 3
|Total Norm: 4.1221e-08 |Residual: 2.7608e-08 |A: 3.0610e-08| Relative Norm : 1.0342e-10
Arc-Length Step 282 :
Iteration: 0
|Total Norm: 4.1665e+02 |Residual: 4.1665e+02 |A: 3.0607e-08| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.1303e+00 |Residual: 2.1192e+00 |A: 2.1764e-01| Relative Norm : 5.1130e-03
Iteration: 2
|Total Norm: 5.0477e-02 |Residual: 4.7468e-02 |A: 1.7168e-02| Relative Norm : 1.2115e-04
Iteration: 3
|Total Norm: 8.2625e-08 |Residual: 5.0355e-08 |A: 6.5509e-08| Relative Norm : 1.9831e-10
Arc-Length Step 283 :
Iteration: 0
|Total Norm: 4.3730e+02 |Residual: 4.3730e+02 |A: 6.5503e-08| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.5223e+00 |Residual: 2.5071e+00 |A: 2.7644e-01| Relative Norm : 5.7680e-03
Iteration: 2
|Total Norm: 7.0438e-02 |Residual: 6.5632e-02 |A: 2.5572e-02| Relative Norm : 1.6108e-04
Iteration: 3
|Total Norm: 1.7257e-07 |Residual: 9.4063e-08 |A: 1.4468e-07| Relative Norm : 3.9463e-10
Arc-Length Step 284 :
Iteration: 0
|Total Norm: 4.6092e+02 |Residual: 4.6092e+02 |A: 1.4468e-07| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 3.0138e+00 |Residual: 2.9930e+00 |A: 3.5374e-01| Relative Norm : 6.5387e-03
Iteration: 2
|Total Norm: 1.0004e-01 |Residual: 9.2209e-02 |A: 3.8791e-02| Relative Norm : 2.1704e-04
Iteration: 3
|Total Norm: 3.7844e-07 |Residual: 1.8212e-07 |A: 3.3174e-07| Relative Norm : 8.2106e-10
Arc-Length Step 285 :
Iteration: 0
|Total Norm: 4.8798e+02 |Residual: 4.8798e+02 |A: 3.3174e-07| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 3.6388e+00 |Residual: 3.6100e+00 |A: 4.5732e-01| Relative Norm : 7.4570e-03
Iteration: 2
|Total Norm: 1.4520e-01 |Residual: 1.3217e-01 |A: 6.0122e-02| Relative Norm : 2.9756e-04
Iteration: 3
|Total Norm: 8.7617e-07 |Residual: 3.6856e-07 |A: 7.9488e-07| Relative Norm : 1.7955e-09
Arc-Length Step 286 :
Iteration: 0
|Total Norm: 5.1903e+02 |Residual: 5.1903e+02 |A: 7.9488e-07| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 4.4470e+00 |Residual: 4.4065e+00 |A: 5.9937e-01| Relative Norm : 8.5679e-03
Iteration: 2
|Total Norm: 2.1644e-01 |Residual: 1.9420e-01 |A: 9.5565e-02| Relative Norm : 4.1701e-04
Iteration: 3
|Total Norm: 2.1549e-06 |Residual: 7.8848e-07 |A: 2.0055e-06| Relative Norm : 4.1518e-09
Iteration: 4
|Total Norm: 6.3502e-10 |Residual: 6.3502e-10 |A: 0.0000e+00| Relative Norm : 1.2235e-12
Arc-Length Step 287 :
Iteration: 0
|Total Norm: 5.5477e+02 |Residual: 5.5477e+02 |A: 6.1391e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 5.5135e+00 |Residual: 5.4552e+00 |A: 8.0003e-01| Relative Norm : 9.9384e-03
Iteration: 2
|Total Norm: 3.3329e-01 |Residual: 2.9426e-01 |A: 1.5650e-01| Relative Norm : 6.0077e-04
Iteration: 3
|Total Norm: 5.6751e-06 |Residual: 1.8118e-06 |A: 5.3781e-06| Relative Norm : 1.0230e-08
Iteration: 4
|Total Norm: 5.6659e-10 |Residual: 5.6659e-10 |A: 2.2737e-13| Relative Norm : 1.0213e-12
Arc-Length Step 288 :
Iteration: 0
|Total Norm: 5.9601e+02 |Residual: 5.9601e+02 |A: 4.0927e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 6.9573e+00 |Residual: 6.8707e+00 |A: 1.0945e+00| Relative Norm : 1.1673e-02
Iteration: 2
|Total Norm: 5.3404e-01 |Residual: 4.6330e-01 |A: 2.6562e-01| Relative Norm : 8.9602e-04
Iteration: 3
|Total Norm: 1.6177e-05 |Residual: 4.5664e-06 |A: 1.5519e-05| Relative Norm : 2.7141e-08
Iteration: 4
|Total Norm: 4.8281e-10 |Residual: 4.8281e-10 |A: 2.2737e-13| Relative Norm : 8.1006e-13
Arc-Length Step 289 :
Iteration: 0
|Total Norm: 6.4377e+02 |Residual: 6.4377e+02 |A: 1.8190e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 8.9796e+00 |Residual: 8.8450e+00 |A: 1.5490e+00| Relative Norm : 1.3948e-02
Iteration: 2
|Total Norm: 8.9926e-01 |Residual: 7.6595e-01 |A: 4.7115e-01| Relative Norm : 1.3969e-03
Iteration: 3
|Total Norm: 5.0725e-05 |Residual: 1.2993e-05 |A: 4.9033e-05| Relative Norm : 7.8794e-08
Iteration: 4
|Total Norm: 4.5027e-10 |Residual: 4.5027e-10 |A: 4.5475e-13| Relative Norm : 6.9942e-13
Arc-Length Step 290 :
Iteration: 0
|Total Norm: 6.9926e+02 |Residual: 6.9926e+02 |A: 0.0000e+00| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.1953e+01 |Residual: 1.1729e+01 |A: 2.3020e+00| Relative Norm : 1.7094e-02
Iteration: 2
|Total Norm: 1.6144e+00 |Residual: 1.3504e+00 |A: 8.8469e-01| Relative Norm : 2.3087e-03
Iteration: 3
|Total Norm: 1.7964e-04 |Residual: 4.3443e-05 |A: 1.7431e-04| Relative Norm : 2.5690e-07
Iteration: 4
|Total Norm: 4.6578e-10 |Residual: 4.6573e-10 |A: 7.0486e-12| Relative Norm : 6.6611e-13
Arc-Length Step 291 :
Iteration: 0
|Total Norm: 7.6401e+02 |Residual: 7.6401e+02 |A: 7.2760e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.6667e+01 |Residual: 1.6255e+01 |A: 3.6831e+00| Relative Norm : 2.1815e-02
Iteration: 2
|Total Norm: 3.1636e+00 |Residual: 2.6033e+00 |A: 1.7975e+00| Relative Norm : 4.1407e-03
Iteration: 3
|Total Norm: 7.5335e-04 |Residual: 1.8216e-04 |A: 7.3100e-04| Relative Norm : 9.8605e-07
Iteration: 4
|Total Norm: 6.0607e-10 |Residual: 5.9341e-10 |A: 1.2324e-10| Relative Norm : 7.9328e-13
Arc-Length Step 292 :
Iteration: 0
|Total Norm: 8.3987e+02 |Residual: 8.3987e+02 |A: 1.1551e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.5173e+01 |Residual: 2.4278e+01 |A: 6.6515e+00| Relative Norm : 2.9972e-02
Iteration: 2
|Total Norm: 7.0804e+00 |Residual: 5.7531e+00 |A: 4.1272e+00| Relative Norm : 8.4303e-03
Iteration: 3
|Total Norm: 4.1277e-03 |Residual: 1.0983e-03 |A: 3.9789e-03| Relative Norm : 4.9147e-06
Iteration: 4
|Total Norm: 1.7909e-08 |Residual: 1.7444e-08 |A: 4.0523e-09| Relative Norm : 2.1323e-11
Arc-Length Step 293 :
Iteration: 0
|Total Norm: 9.2919e+02 |Residual: 9.2919e+02 |A: 4.0538e-09| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 4.5007e+01 |Residual: 4.2408e+01 |A: 1.5071e+01| Relative Norm : 4.8436e-02
Iteration: 2
|Total Norm: 2.0188e+01 |Residual: 1.6298e+01 |A: 1.1914e+01| Relative Norm : 2.1727e-02
Iteration: 3
|Total Norm: 3.8399e-02 |Residual: 1.3730e-02 |A: 3.5861e-02| Relative Norm : 4.1325e-05
Iteration: 4
|Total Norm: 2.8792e-06 |Residual: 2.8243e-06 |A: 5.5998e-07| Relative Norm : 3.0986e-09
Iteration: 5
|Total Norm: 4.3666e-10 |Residual: 4.3666e-10 |A: -2.2737e-13| Relative Norm : 4.6993e-13
Arc-Length Step 294 :
Iteration: 0
|Total Norm: 1.0349e+03 |Residual: 1.0349e+03 |A: -3.8654e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.3282e+02 |Residual: 1.1867e+02 |A: 5.9657e+01| Relative Norm : 1.2834e-01
Iteration: 2
|Total Norm: 1.1230e+02 |Residual: 9.1008e+01 |A: 6.5802e+01| Relative Norm : 1.0851e-01
Iteration: 3
|Total Norm: 1.9972e+00 |Residual: 1.3582e+00 |A: 1.4643e+00| Relative Norm : 1.9298e-03
Iteration: 4
|Total Norm: 1.5493e-02 |Residual: 1.5063e-02 |A: 3.6227e-03| Relative Norm : 1.4970e-05
Iteration: 5
|Total Norm: 3.3805e-08 |Residual: 3.2550e-08 |A: 9.1247e-09| Relative Norm : 3.2664e-11
Arc-Length Step 295 :
Iteration: 0
|Total Norm: 1.1611e+03 |Residual: 1.1611e+03 |A: 9.1215e-09| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.7972e+05 |Residual: 1.3803e+05 |A: 1.1509e+05| Relative Norm : 1.5478e+02
Iteration: 2
|Total Norm: 6.4466e+05 |Residual: 6.3040e+05 |A: 1.3489e+05| Relative Norm : 5.5523e+02
Iteration: 3
|Total Norm: 1.6251e+05 |Residual: 1.5738e+05 |A: 4.0526e+04| Relative Norm : 1.3996e+02
Iteration: 4
|Total Norm: 4.0049e+05 |Residual: 3.9716e+05 |A: 5.1596e+04| Relative Norm : 3.4493e+02
Iteration: 5
|Total Norm: 6.0600e+06 |Residual: 3.5201e+06 |A: 4.9328e+06| Relative Norm : 5.2193e+03
Iteration: 6
|Total Norm: 9.4027e+07 |Residual: 9.3904e+07 |A: 4.8113e+06| Relative Norm : 8.0982e+04
Iteration: 7
|Total Norm: 2.4593e+08 |Residual: 2.4591e+08 |A: 2.9318e+06| Relative Norm : 2.1181e+05
Iteration: 8
|Total Norm: 6.5484e+07 |Residual: 6.5249e+07 |A: 5.5492e+06| Relative Norm : 5.6399e+04
Iteration: 9
|Total Norm: 7.0703e+08 |Residual: 7.0691e+08 |A: 1.3116e+07| Relative Norm : 6.0894e+05
Arc-Length Step 295 :
Iteration: 0
|Total Norm: 4.3345e+02 |Residual: 4.3345e+02 |A: 2.2805e-09| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.8049e+00 |Residual: 2.8011e+00 |A: 1.4621e-01| Relative Norm : 6.4711e-03
Iteration: 2
|Total Norm: 1.0178e-01 |Residual: 7.2091e-02 |A: 7.1851e-02| Relative Norm : 2.3482e-04
Iteration: 3
|Total Norm: 4.5104e-06 |Residual: 1.5286e-06 |A: 4.2435e-06| Relative Norm : 1.0406e-08
Iteration: 4
|Total Norm: 3.3861e-10 |Residual: 3.3861e-10 |A: 0.0000e+00| Relative Norm : 7.8121e-13
Arc-Length Step 296 :
Iteration: 0
|Total Norm: 3.1599e+02 |Residual: 3.1599e+02 |A: 3.5811e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.2805e+00 |Residual: 1.2802e+00 |A: 2.7047e-02| Relative Norm : 4.0525e-03
Iteration: 2
|Total Norm: 2.2087e-02 |Residual: 1.6045e-02 |A: 1.5179e-02| Relative Norm : 6.9898e-05
Iteration: 3
|Total Norm: 2.0243e-07 |Residual: 7.2725e-08 |A: 1.8892e-07| Relative Norm : 6.4063e-10
Arc-Length Step 297 :
Iteration: 0
|Total Norm: 1.0134e+03 |Residual: 1.0134e+03 |A: 7.5564e-07| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 6.6618e+01 |Residual: 6.1535e+01 |A: 2.5524e+01| Relative Norm : 6.5739e-02
Iteration: 2
|Total Norm: 4.5020e+01 |Residual: 3.3891e+01 |A: 2.9635e+01| Relative Norm : 4.4426e-02
Iteration: 3
|Total Norm: 2.3377e-01 |Residual: 5.3650e-02 |A: 2.2753e-01| Relative Norm : 2.3068e-04
Iteration: 4
|Total Norm: 5.6943e-05 |Residual: 5.5071e-05 |A: 1.4479e-05| Relative Norm : 5.6191e-08
Iteration: 5
|Total Norm: 3.8545e-10 |Residual: 3.8545e-10 |A: 0.0000e+00| Relative Norm : 3.8036e-13
Arc-Length Step 298 :
Iteration: 0
|Total Norm: 1.4992e+03 |Residual: 1.4992e+03 |A: -1.8190e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 4.9401e+01 |Residual: 4.6368e+01 |A: 1.7043e+01| Relative Norm : 3.2951e-02
Iteration: 2
|Total Norm: 4.1313e+01 |Residual: 3.9285e+01 |A: 1.2786e+01| Relative Norm : 2.7556e-02
Iteration: 3
|Total Norm: 1.4286e-01 |Residual: 1.3299e-01 |A: 5.2179e-02| Relative Norm : 9.5292e-05
Iteration: 4
|Total Norm: 2.5773e-04 |Residual: 2.3501e-04 |A: 1.0581e-04| Relative Norm : 1.7191e-07
Iteration: 5
|Total Norm: 3.3169e-10 |Residual: 3.3167e-10 |A: 3.1832e-12| Relative Norm : 2.2124e-13
Arc-Length Step 299 :
Iteration: 0
|Total Norm: 1.7340e+03 |Residual: 1.7340e+03 |A: 1.0004e-11| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 3.7599e+01 |Residual: 3.6798e+01 |A: 7.7200e+00| Relative Norm : 2.1683e-02
Iteration: 2
|Total Norm: 2.3551e+01 |Residual: 2.3475e+01 |A: 1.8874e+00| Relative Norm : 1.3582e-02
Iteration: 3
|Total Norm: 1.3902e-02 |Residual: 1.3194e-02 |A: 4.3777e-03| Relative Norm : 8.0171e-06
Iteration: 4
|Total Norm: 3.6982e-06 |Residual: 3.4592e-06 |A: 1.3079e-06| Relative Norm : 2.1328e-09
Iteration: 5
|Total Norm: 3.6475e-10 |Residual: 3.6475e-10 |A: 0.0000e+00| Relative Norm : 2.1035e-13
Arc-Length Step 300 :
Iteration: 0
|Total Norm: 2.0465e+03 |Residual: 2.0465e+03 |A: 9.3223e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 4.4341e+01 |Residual: 4.4131e+01 |A: 4.3091e+00| Relative Norm : 2.1667e-02
Iteration: 2
|Total Norm: 3.1142e+01 |Residual: 3.1108e+01 |A: 1.4399e+00| Relative Norm : 1.5217e-02
Iteration: 3
|Total Norm: 1.6263e-02 |Residual: 1.5609e-02 |A: 4.5623e-03| Relative Norm : 7.9465e-06
Iteration: 4
|Total Norm: 1.4037e-06 |Residual: 1.3935e-06 |A: 1.6866e-07| Relative Norm : 6.8590e-10
Iteration: 5
|Total Norm: 3.6190e-10 |Residual: 3.6190e-10 |A: 0.0000e+00| Relative Norm : 1.7684e-13
Arc-Length Step 301 :
Iteration: 0
|Total Norm: 2.5056e+03 |Residual: 2.5056e+03 |A: -5.9117e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 6.9865e+01 |Residual: 6.9820e+01 |A: 2.4880e+00| Relative Norm : 2.7884e-02
Iteration: 2
|Total Norm: 7.6605e+01 |Residual: 7.5275e+01 |A: 1.4212e+01| Relative Norm : 3.0574e-02
Iteration: 3
|Total Norm: 1.3152e-01 |Residual: 1.1451e-01 |A: 6.4684e-02| Relative Norm : 5.2489e-05
Iteration: 4
|Total Norm: 1.1920e-04 |Residual: 1.1815e-04 |A: 1.5754e-05| Relative Norm : 4.7572e-08
Iteration: 5
|Total Norm: 3.2649e-10 |Residual: 3.2649e-10 |A: 9.0949e-13| Relative Norm : 1.3031e-13
Arc-Length Step 302 :
Iteration: 0
|Total Norm: 3.2972e+03 |Residual: 3.2972e+03 |A: -4.7748e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 6.1890e+02 |Residual: 6.1802e+02 |A: 3.2930e+01| Relative Norm : 1.8770e-01
Iteration: 2
|Total Norm: 1.5636e+03 |Residual: 1.5545e+03 |A: 1.6836e+02| Relative Norm : 4.7421e-01
Iteration: 3
|Total Norm: 2.2220e+03 |Residual: 1.9280e+03 |A: 1.1047e+03| Relative Norm : 6.7390e-01
Iteration: 4
|Total Norm: 9.3185e+04 |Residual: 9.3089e+04 |A: 4.2269e+03| Relative Norm : 2.8262e+01
Iteration: 5
|Total Norm: 2.8313e+05 |Residual: 4.9502e+04 |A: 2.7877e+05| Relative Norm : 8.5869e+01
Iteration: 6
|Total Norm: 1.9226e+05 |Residual: 1.6256e+05 |A: 1.0265e+05| Relative Norm : 5.8309e+01
Iteration: 7
|Total Norm: 4.8527e+05 |Residual: 4.7951e+05 |A: 7.4575e+04| Relative Norm : 1.4718e+02
Iteration: 8
|Total Norm: 1.3126e+07 |Residual: 1.3124e+07 |A: 2.2476e+05| Relative Norm : 3.9808e+03
Iteration: 9
|Total Norm: 3.0793e+06 |Residual: 2.9048e+06 |A: 1.0220e+06| Relative Norm : 9.3392e+02
Arc-Length Step 302 :
Iteration: 0
|Total Norm: 1.2199e+03 |Residual: 1.2199e+03 |A: 2.6148e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.3219e+01 |Residual: 1.3129e+01 |A: 1.5327e+00| Relative Norm : 1.0836e-02
Iteration: 2
|Total Norm: 7.6696e+00 |Residual: 7.0850e+00 |A: 2.9371e+00| Relative Norm : 6.2873e-03
Iteration: 3
|Total Norm: 9.1767e-03 |Residual: 5.7201e-03 |A: 7.1759e-03| Relative Norm : 7.5228e-06
Iteration: 4
|Total Norm: 3.6522e-07 |Residual: 3.3790e-07 |A: 1.3862e-07| Relative Norm : 2.9940e-10
Arc-Length Step 303 :
Iteration: 0
|Total Norm: 1.0667e+03 |Residual: 1.0667e+03 |A: 1.3862e-07| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.1523e+01 |Residual: 1.1452e+01 |A: 1.2843e+00| Relative Norm : 1.0802e-02
Iteration: 2
|Total Norm: 7.6033e+00 |Residual: 6.8953e+00 |A: 3.2040e+00| Relative Norm : 7.1276e-03
Iteration: 3
|Total Norm: 1.3568e-02 |Residual: 1.0585e-02 |A: 8.4892e-03| Relative Norm : 1.2719e-05
Iteration: 4
|Total Norm: 1.0425e-06 |Residual: 1.0017e-06 |A: 2.8894e-07| Relative Norm : 9.7729e-10
Iteration: 5
|Total Norm: 3.0452e-10 |Residual: 3.0452e-10 |A: 5.6843e-14| Relative Norm : 2.8547e-13
Arc-Length Step 304 :
Iteration: 0
|Total Norm: 4.1936e+03 |Residual: 4.1936e+03 |A: -3.4561e-11| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.2155e+02 |Residual: 1.1973e+02 |A: 2.0985e+01| Relative Norm : 2.8985e-02
Iteration: 2
|Total Norm: 4.0062e+02 |Residual: 3.8048e+02 |A: 1.2544e+02| Relative Norm : 9.5530e-02
Iteration: 3
|Total Norm: 8.3891e+00 |Residual: 6.1079e+00 |A: 5.7506e+00| Relative Norm : 2.0004e-03
Iteration: 4
|Total Norm: 9.1286e-01 |Residual: 6.9365e-01 |A: 5.9343e-01| Relative Norm : 2.1768e-04
Iteration: 5
|Total Norm: 3.9340e-04 |Residual: 3.8539e-04 |A: 7.8994e-05| Relative Norm : 9.3809e-08
Iteration: 6
|Total Norm: 4.1712e-10 |Residual: 4.1285e-10 |A: 5.9572e-11| Relative Norm : 9.9466e-14
Arc-Length Step 305 :
Iteration: 0
|Total Norm: 9.6741e+03 |Residual: 9.6741e+03 |A: 6.2300e-11| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 7.2903e+03 |Residual: 7.0880e+03 |A: 1.7055e+03| Relative Norm : 7.5358e-01
Iteration: 2
|Total Norm: 1.0533e+05 |Residual: 1.0478e+05 |A: 1.0813e+04| Relative Norm : 1.0888e+01
Iteration: 3
|Total Norm: 5.2507e+05 |Residual: 5.0332e+05 |A: 1.4956e+05| Relative Norm : 5.4276e+01
Iteration: 4
|Total Norm: 4.2918e+08 |Residual: 4.2898e+08 |A: 1.2895e+07| Relative Norm : 4.4363e+04
Iteration: 5
|Total Norm: 7.2575e+12 |Residual: 7.2455e+12 |A: 4.1735e+11| Relative Norm : 7.5019e+08
Iteration: 6
|Total Norm: 1.7237e+12 |Residual: 1.7191e+12 |A: 1.2582e+11| Relative Norm : 1.7817e+08
Iteration: 7
|Total Norm: 2.7688e+11 |Residual: 2.7483e+11 |A: 3.3634e+10| Relative Norm : 2.8621e+07
Iteration: 8
|Total Norm: 2.5345e+11 |Residual: 2.5239e+11 |A: 2.3209e+10| Relative Norm : 2.6199e+07
Iteration: 9
|Total Norm: 7.8163e+11 |Residual: 7.8151e+11 |A: 1.3452e+10| Relative Norm : 8.0796e+07
Arc-Length Step 305 :
Iteration: 0
|Total Norm: 3.5070e+03 |Residual: 3.5070e+03 |A: 1.8986e-11| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.3935e+02 |Residual: 1.3451e+02 |A: 3.6395e+01| Relative Norm : 3.9735e-02
Iteration: 2
|Total Norm: 1.4846e+02 |Residual: 1.3090e+02 |A: 7.0031e+01| Relative Norm : 4.2331e-02
Iteration: 3
|Total Norm: 1.9331e+01 |Residual: 1.9048e+01 |A: 3.2975e+00| Relative Norm : 5.5121e-03
Iteration: 4
|Total Norm: 3.7121e-01 |Residual: 1.3130e-01 |A: 3.4722e-01| Relative Norm : 1.0585e-04
Iteration: 5
|Total Norm: 6.2817e-04 |Residual: 6.2032e-04 |A: 9.9002e-05| Relative Norm : 1.7912e-07
Iteration: 6
|Total Norm: 3.9315e-10 |Residual: 3.9302e-10 |A: 1.0004e-11| Relative Norm : 1.1210e-13
Arc-Length Step 306 :
Iteration: 0
|Total Norm: 2.8326e+03 |Residual: 2.8326e+03 |A: 1.1767e-11| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 8.4772e+01 |Residual: 8.2305e+01 |A: 2.0300e+01| Relative Norm : 2.9927e-02
Iteration: 2
|Total Norm: 5.4561e+01 |Residual: 5.2639e+01 |A: 1.4352e+01| Relative Norm : 1.9262e-02
Iteration: 3
|Total Norm: 3.8613e-01 |Residual: 3.4102e-01 |A: 1.8112e-01| Relative Norm : 1.3632e-04
Iteration: 4
|Total Norm: 7.5088e-04 |Residual: 6.2264e-04 |A: 4.1969e-04| Relative Norm : 2.6509e-07
Iteration: 5
|Total Norm: 1.0327e-09 |Residual: 1.0213e-09 |A: 1.5268e-10| Relative Norm : 3.6458e-13
Arc-Length Step 307 :
Iteration: 0
|Total Norm: 6.8077e+03 |Residual: 6.8077e+03 |A: 6.1186e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 3.4474e+02 |Residual: 1.6349e+02 |A: 3.0351e+02| Relative Norm : 5.0640e-02
Iteration: 2
|Total Norm: 2.3713e+02 |Residual: 2.3564e+02 |A: 2.6545e+01| Relative Norm : 3.4833e-02
Iteration: 3
|Total Norm: 2.4435e+00 |Residual: 2.4251e+00 |A: 2.9974e-01| Relative Norm : 3.5894e-04
Iteration: 4
|Total Norm: 3.1983e-01 |Residual: 3.1862e-01 |A: 2.7882e-02| Relative Norm : 4.6981e-05
Iteration: 5
|Total Norm: 1.7652e-06 |Residual: 1.7472e-06 |A: 2.5168e-07| Relative Norm : 2.5930e-10
Iteration: 6
|Total Norm: 3.8797e-10 |Residual: 3.8797e-10 |A: 0.0000e+00| Relative Norm : 5.6991e-14
Arc-Length Step 308 :
Iteration: 0
|Total Norm: 5.5035e+03 |Residual: 5.5035e+03 |A: 6.8212e-13| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.5010e+03 |Residual: 6.3874e+02 |A: 1.3583e+03| Relative Norm : 2.7273e-01
Iteration: 2
|Total Norm: 4.8506e+03 |Residual: 4.4610e+03 |A: 1.9046e+03| Relative Norm : 8.8135e-01
Iteration: 3
|Total Norm: 5.2449e+03 |Residual: 4.8104e+03 |A: 2.0902e+03| Relative Norm : 9.5301e-01
Iteration: 4
|Total Norm: 3.8879e+04 |Residual: 3.8277e+04 |A: 6.8167e+03| Relative Norm : 7.0644e+00
Iteration: 5
|Total Norm: 2.6105e+06 |Residual: 7.0037e+04 |A: 2.6095e+06| Relative Norm : 4.7433e+02
Iteration: 6
|Total Norm: 7.0810e+05 |Residual: 1.9640e+05 |A: 6.8032e+05| Relative Norm : 1.2866e+02
Iteration: 7
|Total Norm: 3.5121e+06 |Residual: 3.5040e+06 |A: 2.3780e+05| Relative Norm : 6.3815e+02
Iteration: 8
|Total Norm: 7.3666e+05 |Residual: 7.3091e+05 |A: 9.1840e+04| Relative Norm : 1.3385e+02
Iteration: 9
|Total Norm: 8.2293e+07 |Residual: 8.2286e+07 |A: 1.0945e+06| Relative Norm : 1.4953e+04
Arc-Length Step 308 :
Iteration: 0
|Total Norm: 2.0063e+03 |Residual: 2.0063e+03 |A: -1.6485e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 3.7393e+01 |Residual: 3.5619e+01 |A: 1.1380e+01| Relative Norm : 1.8638e-02
Iteration: 2
|Total Norm: 5.4789e+01 |Residual: 5.4781e+01 |A: 9.7625e-01| Relative Norm : 2.7309e-02
Iteration: 3
|Total Norm: 4.0109e-02 |Residual: 4.0061e-02 |A: 1.9723e-03| Relative Norm : 1.9992e-05
Iteration: 4
|Total Norm: 1.4714e-04 |Residual: 1.4699e-04 |A: 6.4606e-06| Relative Norm : 7.3338e-08
Iteration: 5
|Total Norm: 3.3781e-10 |Residual: 3.3781e-10 |A: 0.0000e+00| Relative Norm : 1.6838e-13
Arc-Length Step 309 :
Iteration: 0
|Total Norm: 8.4503e+02 |Residual: 8.4503e+02 |A: -7.9581e-13| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 5.6158e+01 |Residual: 5.6145e+01 |A: 1.2042e+00| Relative Norm : 6.6456e-02
Iteration: 2
|Total Norm: 8.7959e+01 |Residual: 8.7699e+01 |A: 6.7541e+00| Relative Norm : 1.0409e-01
Iteration: 3
|Total Norm: 5.6690e-01 |Residual: 5.6276e-01 |A: 6.8417e-02| Relative Norm : 6.7086e-04
Iteration: 4
|Total Norm: 1.2323e-02 |Residual: 1.2309e-02 |A: 5.8978e-04| Relative Norm : 1.4583e-05
Iteration: 5
|Total Norm: 6.0704e-09 |Residual: 6.0495e-09 |A: 5.0369e-10| Relative Norm : 7.1836e-12
Arc-Length Step 310 :
Iteration: 0
|Total Norm: 2.0502e+03 |Residual: 2.0502e+03 |A: 2.0113e-09| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 6.4894e+01 |Residual: 6.1646e+01 |A: 2.0272e+01| Relative Norm : 3.1652e-02
Iteration: 2
|Total Norm: 7.2252e+01 |Residual: 7.2205e+01 |A: 2.6211e+00| Relative Norm : 3.5241e-02
Iteration: 3
|Total Norm: 3.1464e-01 |Residual: 3.1428e-01 |A: 1.5018e-02| Relative Norm : 1.5347e-04
Iteration: 4
|Total Norm: 3.3994e-03 |Residual: 3.3978e-03 |A: 1.0427e-04| Relative Norm : 1.6581e-06
Iteration: 5
|Total Norm: 7.0228e-10 |Residual: 7.0201e-10 |A: 1.9554e-11| Relative Norm : 3.4254e-13
Arc-Length Step 311 :
Iteration: 0
|Total Norm: 2.0778e+03 |Residual: 2.0778e+03 |A: 1.5461e-11| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 8.3704e+01 |Residual: 8.0011e+01 |A: 2.4591e+01| Relative Norm : 4.0284e-02
Iteration: 2
|Total Norm: 8.7890e+01 |Residual: 8.7744e+01 |A: 5.0656e+00| Relative Norm : 4.2298e-02
Iteration: 3
|Total Norm: 7.7535e-01 |Residual: 7.7397e-01 |A: 4.6182e-02| Relative Norm : 3.7315e-04
Iteration: 4
|Total Norm: 1.1751e-02 |Residual: 1.1743e-02 |A: 4.2928e-04| Relative Norm : 5.6554e-06
Iteration: 5
|Total Norm: 1.2542e-08 |Residual: 1.2533e-08 |A: 4.7612e-10| Relative Norm : 6.0360e-12
Arc-Length Step 312 :
Iteration: 0
|Total Norm: 1.5248e+03 |Residual: 1.5248e+03 |A: 4.7521e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 4.3465e+01 |Residual: 4.2830e+01 |A: 7.4039e+00| Relative Norm : 2.8506e-02
Iteration: 2
|Total Norm: 4.7369e+01 |Residual: 4.7356e+01 |A: 1.1099e+00| Relative Norm : 3.1067e-02
Iteration: 3
|Total Norm: 1.0014e-01 |Residual: 1.0005e-01 |A: 4.2504e-03| Relative Norm : 6.5673e-05
Iteration: 4
|Total Norm: 3.8657e-04 |Residual: 3.8637e-04 |A: 1.2274e-05| Relative Norm : 2.5353e-07
Iteration: 5
|Total Norm: 4.2843e-10 |Residual: 4.2843e-10 |A: 2.2737e-13| Relative Norm : 2.8099e-13
Arc-Length Step 313 :
Iteration: 0
|Total Norm: 1.1892e+03 |Residual: 1.1892e+03 |A: -8.1855e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 4.4599e+01 |Residual: 4.4483e+01 |A: 3.2175e+00| Relative Norm : 3.7505e-02
Iteration: 2
|Total Norm: 5.4005e+01 |Residual: 5.3991e+01 |A: 1.2245e+00| Relative Norm : 4.5414e-02
Iteration: 3
|Total Norm: 1.5896e-01 |Residual: 1.5886e-01 |A: 5.6127e-03| Relative Norm : 1.3368e-04
Iteration: 4
|Total Norm: 8.3182e-04 |Residual: 8.3142e-04 |A: 2.5629e-05| Relative Norm : 6.9950e-07
Iteration: 5
|Total Norm: 4.5974e-10 |Residual: 4.5974e-10 |A: 9.0949e-13| Relative Norm : 3.8661e-13
Arc-Length Step 314 :
Iteration: 0
|Total Norm: 9.6716e+02 |Residual: 9.6716e+02 |A: -2.2737e-13| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.0959e+02 |Residual: 1.0955e+02 |A: 2.9160e+00| Relative Norm : 1.1331e-01
Iteration: 2
|Total Norm: 1.7342e+02 |Residual: 1.7335e+02 |A: 4.8117e+00| Relative Norm : 1.7931e-01
Iteration: 3
|Total Norm: 6.9646e+00 |Residual: 6.9609e+00 |A: 2.2965e-01| Relative Norm : 7.2011e-03
Iteration: 4
|Total Norm: 4.6516e-01 |Residual: 4.6494e-01 |A: 1.4166e-02| Relative Norm : 4.8095e-04
Iteration: 5
|Total Norm: 4.7566e-05 |Residual: 4.7540e-05 |A: 1.5769e-06| Relative Norm : 4.9181e-08
Iteration: 6
|Total Norm: 4.8964e-10 |Residual: 4.8964e-10 |A: 6.8212e-13| Relative Norm : 5.0627e-13
Arc-Length Step 315 :
Iteration: 0
|Total Norm: 8.1113e+02 |Residual: 8.1113e+02 |A: 4.0927e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.5343e+03 |Residual: 2.5327e+03 |A: 9.0724e+01| Relative Norm : 3.1244e+00
Iteration: 2
|Total Norm: 2.1540e+04 |Residual: 2.1464e+04 |A: 1.8073e+03| Relative Norm : 2.6556e+01
Iteration: 3
|Total Norm: 3.5782e+03 |Residual: 3.4572e+03 |A: 9.2275e+02| Relative Norm : 4.4114e+00
Iteration: 4
|Total Norm: 9.8931e+04 |Residual: 9.8736e+04 |A: 6.2079e+03| Relative Norm : 1.2197e+02
Iteration: 5
|Total Norm: 4.4338e+05 |Residual: 4.4335e+05 |A: 5.3211e+03| Relative Norm : 5.4662e+02
Iteration: 6
|Total Norm: 1.4888e+05 |Residual: 1.1862e+05 |A: 8.9973e+04| Relative Norm : 1.8354e+02
Iteration: 7
|Total Norm: 1.8477e+05 |Residual: 1.7958e+05 |A: 4.3511e+04| Relative Norm : 2.2779e+02
Iteration: 8
|Total Norm: 5.2657e+06 |Residual: 5.2655e+06 |A: 4.3217e+04| Relative Norm : 6.4918e+03
Iteration: 9
|Total Norm: 5.2545e+07 |Residual: 4.6823e+07 |A: 2.3847e+07| Relative Norm : 6.4780e+04
Arc-Length Step 315 :
Iteration: 0
|Total Norm: 3.0174e+02 |Residual: 3.0174e+02 |A: 2.7853e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.8673e+00 |Residual: 1.8502e+00 |A: 2.5198e-01| Relative Norm : 6.1882e-03
Iteration: 2
|Total Norm: 8.8839e-02 |Residual: 8.8636e-02 |A: 6.0093e-03| Relative Norm : 2.9442e-04
Iteration: 3
|Total Norm: 3.6187e-07 |Residual: 3.6022e-07 |A: 3.4542e-08| Relative Norm : 1.1993e-09
Arc-Length Step 316 :
Iteration: 0
|Total Norm: 1.7849e+02 |Residual: 1.7849e+02 |A: 3.4543e-08| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 5.3088e-01 |Residual: 5.2558e-01 |A: 7.4819e-02| Relative Norm : 2.9743e-03
Iteration: 2
|Total Norm: 6.6563e-03 |Residual: 6.6371e-03 |A: 5.0480e-04| Relative Norm : 3.7293e-05
Iteration: 3
|Total Norm: 1.8065e-09 |Residual: 1.7916e-09 |A: 2.3130e-10| Relative Norm : 1.0121e-11
Arc-Length Step 317 :
Iteration: 0
|Total Norm: 5.0215e+02 |Residual: 5.0215e+02 |A: 9.1063e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 7.3734e+00 |Residual: 7.3334e+00 |A: 7.6621e-01| Relative Norm : 1.4684e-02
Iteration: 2
|Total Norm: 1.3487e+00 |Residual: 1.3472e+00 |A: 6.3151e-02| Relative Norm : 2.6858e-03
Iteration: 3
|Total Norm: 8.5799e-05 |Residual: 8.5770e-05 |A: 2.2585e-06| Relative Norm : 1.7086e-07
Iteration: 4
|Total Norm: 5.8469e-10 |Residual: 5.8465e-10 |A: 6.8212e-12| Relative Norm : 1.1644e-12
Arc-Length Step 318 :
Iteration: 0
|Total Norm: 6.0924e+02 |Residual: 6.0924e+02 |A: 1.2051e-11| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.5263e+01 |Residual: 1.5212e+01 |A: 1.2443e+00| Relative Norm : 2.5053e-02
Iteration: 2
|Total Norm: 5.1573e+00 |Residual: 5.1533e+00 |A: 2.0299e-01| Relative Norm : 8.4651e-03
Iteration: 3
|Total Norm: 1.6406e-03 |Residual: 1.6401e-03 |A: 4.0969e-05| Relative Norm : 2.6928e-06
Iteration: 4
|Total Norm: 6.9475e-08 |Residual: 6.9438e-08 |A: 2.2455e-09| Relative Norm : 1.1403e-10
Arc-Length Step 319 :
Iteration: 0
|Total Norm: 5.4108e+02 |Residual: 5.4108e+02 |A: 2.2410e-09| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 8.0667e+00 |Residual: 8.0334e+00 |A: 7.3221e-01| Relative Norm : 1.4908e-02
Iteration: 2
|Total Norm: 1.6389e+00 |Residual: 1.6374e+00 |A: 6.8840e-02| Relative Norm : 3.0289e-03
Iteration: 3
|Total Norm: 1.1173e-04 |Residual: 1.1169e-04 |A: 2.8889e-06| Relative Norm : 2.0649e-07
Iteration: 4
|Total Norm: 6.5710e-10 |Residual: 6.5696e-10 |A: 1.3870e-11| Relative Norm : 1.2144e-12
Arc-Length Step 320 :
Iteration: 0
|Total Norm: 4.8664e+02 |Residual: 4.8664e+02 |A: 1.6826e-11| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 5.0850e+00 |Residual: 5.0619e+00 |A: 4.8431e-01| Relative Norm : 1.0449e-02
Iteration: 2
|Total Norm: 6.7295e-01 |Residual: 6.7230e-01 |A: 2.9658e-02| Relative Norm : 1.3829e-03
Iteration: 3
|Total Norm: 1.4915e-05 |Residual: 1.4909e-05 |A: 4.1337e-07| Relative Norm : 3.0649e-08
Iteration: 4
|Total Norm: 6.1273e-10 |Residual: 6.1273e-10 |A: 4.5475e-13| Relative Norm : 1.2591e-12
Arc-Length Step 321 :
Iteration: 0
|Total Norm: 4.4235e+02 |Residual: 4.4235e+02 |A: -4.3201e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 3.5148e+00 |Residual: 3.4983e+00 |A: 3.4037e-01| Relative Norm : 7.9456e-03
Iteration: 2
|Total Norm: 3.2108e-01 |Residual: 3.2074e-01 |A: 1.4690e-02| Relative Norm : 7.2583e-04
Iteration: 3
|Total Norm: 2.9023e-06 |Residual: 2.9010e-06 |A: 8.7116e-08| Relative Norm : 6.5610e-09
Iteration: 4
|Total Norm: 6.7946e-10 |Residual: 6.7946e-10 |A: 4.5475e-13| Relative Norm : 1.5360e-12
Arc-Length Step 322 :
Iteration: 0
|Total Norm: 4.0580e+02 |Residual: 4.0580e+02 |A: 2.0464e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.5724e+00 |Residual: 2.5604e+00 |A: 2.4843e-01| Relative Norm : 6.3391e-03
Iteration: 2
|Total Norm: 1.6947e-01 |Residual: 1.6928e-01 |A: 7.9940e-03| Relative Norm : 4.1763e-04
Iteration: 3
|Total Norm: 7.2164e-07 |Residual: 7.2126e-07 |A: 2.3457e-08| Relative Norm : 1.7783e-09
Arc-Length Step 323 :
Iteration: 0
|Total Norm: 3.7523e+02 |Residual: 3.7523e+02 |A: 2.3461e-08| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.9584e+00 |Residual: 1.9496e+00 |A: 1.8613e-01| Relative Norm : 5.2193e-03
Iteration: 2
|Total Norm: 9.6278e-02 |Residual: 9.6165e-02 |A: 4.6608e-03| Relative Norm : 2.5658e-04
Iteration: 3
|Total Norm: 2.1346e-07 |Residual: 2.1333e-07 |A: 7.4892e-09| Relative Norm : 5.6888e-10
Arc-Length Step 324 :
Iteration: 0
|Total Norm: 3.4940e+02 |Residual: 3.4940e+02 |A: 7.4917e-09| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.5352e+00 |Residual: 1.5286e+00 |A: 1.4215e-01| Relative Norm : 4.3937e-03
Iteration: 2
|Total Norm: 5.7864e-02 |Residual: 5.7793e-02 |A: 2.8658e-03| Relative Norm : 1.6561e-04
Iteration: 3
|Total Norm: 7.2039e-08 |Residual: 7.1988e-08 |A: 2.7130e-09| Relative Norm : 2.0618e-10
Arc-Length Step 325 :
Iteration: 0
|Total Norm: 3.2737e+02 |Residual: 3.2737e+02 |A: 2.7103e-09| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.2309e+00 |Residual: 1.2260e+00 |A: 1.1015e-01| Relative Norm : 3.7601e-03
Iteration: 2
|Total Norm: 3.6361e-02 |Residual: 3.6314e-02 |A: 1.8383e-03| Relative Norm : 1.1107e-04
Iteration: 3
|Total Norm: 2.7003e-08 |Residual: 2.6981e-08 |A: 1.0837e-09| Relative Norm : 8.2484e-11
Arc-Length Step 326 :
Iteration: 0
|Total Norm: 3.0844e+02 |Residual: 3.0844e+02 |A: 1.0834e-09| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.0052e+00 |Residual: 1.0014e+00 |A: 8.6317e-02| Relative Norm : 3.2588e-03
Iteration: 2
|Total Norm: 2.3688e-02 |Residual: 2.3657e-02 |A: 1.2207e-03| Relative Norm : 7.6800e-05
Iteration: 3
|Total Norm: 1.1119e-08 |Residual: 1.1109e-08 |A: 4.6748e-10| Relative Norm : 3.6049e-11
Arc-Length Step 327 :
Iteration: 0
|Total Norm: 2.9206e+02 |Residual: 2.9206e+02 |A: 4.6521e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 8.3321e-01 |Residual: 8.3041e-01 |A: 6.8217e-02| Relative Norm : 2.8529e-03
Iteration: 2
|Total Norm: 1.5897e-02 |Residual: 1.5875e-02 |A: 8.3395e-04| Relative Norm : 5.4431e-05
Iteration: 3
|Total Norm: 4.7818e-09 |Residual: 4.7770e-09 |A: 2.1487e-10| Relative Norm : 1.6373e-11
Arc-Length Step 328 :
Iteration: 0
|Total Norm: 2.7780e+02 |Residual: 2.7780e+02 |A: 2.0964e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 6.9948e-01 |Residual: 6.9737e-01 |A: 5.4257e-02| Relative Norm : 2.5179e-03
Iteration: 2
|Total Norm: 1.0934e-02 |Residual: 1.0919e-02 |A: 5.8339e-04| Relative Norm : 3.9361e-05
Iteration: 3
|Total Norm: 2.3017e-09 |Residual: 2.2993e-09 |A: 1.0459e-10| Relative Norm : 8.2853e-12
Arc-Length Step 329 :
Iteration: 0
|Total Norm: 2.6534e+02 |Residual: 2.6534e+02 |A: 1.0687e-10| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 5.9361e-01 |Residual: 5.9203e-01 |A: 4.3347e-02| Relative Norm : 2.2372e-03
Iteration: 2
|Total Norm: 7.6772e-03 |Residual: 7.6659e-03 |A: 4.1622e-04| Relative Norm : 2.8934e-05
Iteration: 3
|Total Norm: 1.3040e-09 |Residual: 1.3029e-09 |A: 5.2978e-11| Relative Norm : 4.9145e-12
Arc-Length Step 330 :
Iteration: 0
|Total Norm: 2.5440e+02 |Residual: 2.5440e+02 |A: 4.6612e-11| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 5.0854e-01 |Residual: 5.0735e-01 |A: 3.4727e-02| Relative Norm : 1.9990e-03
Iteration: 2
|Total Norm: 5.4834e-03 |Residual: 5.4750e-03 |A: 3.0181e-04| Relative Norm : 2.1554e-05
Iteration: 3
|Total Norm: 8.9863e-10 |Residual: 8.9818e-10 |A: 2.8194e-11| Relative Norm : 3.5323e-12
Arc-Length Step 331 :
Iteration: 0
|Total Norm: 2.4477e+02 |Residual: 2.4477e+02 |A: 2.6603e-11| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 4.3929e-01 |Residual: 4.3841e-01 |A: 2.7852e-02| Relative Norm : 1.7947e-03
Iteration: 2
|Total Norm: 3.9723e-03 |Residual: 3.9661e-03 |A: 2.2177e-04| Relative Norm : 1.6228e-05
Iteration: 3
|Total Norm: 6.1096e-10 |Residual: 6.1078e-10 |A: 1.5007e-11| Relative Norm : 2.4961e-12
Arc-Length Step 332 :
Iteration: 0
|Total Norm: 2.3628e+02 |Residual: 2.3628e+02 |A: 1.5916e-11| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 3.8230e-01 |Residual: 3.8165e-01 |A: 2.2326e-02| Relative Norm : 1.6180e-03
Iteration: 2
|Total Norm: 2.9109e-03 |Residual: 2.9063e-03 |A: 1.6466e-04| Relative Norm : 1.2320e-05
Iteration: 3
|Total Norm: 7.3080e-10 |Residual: 7.3075e-10 |A: 8.4128e-12| Relative Norm : 3.0930e-12
Arc-Length Step 333 :
Iteration: 0
|Total Norm: 2.2877e+02 |Residual: 2.2877e+02 |A: 1.0232e-11| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 3.3494e-01 |Residual: 3.3446e-01 |A: 1.7857e-02| Relative Norm : 1.4641e-03
Iteration: 2
|Total Norm: 2.1526e-03 |Residual: 2.1491e-03 |A: 1.2321e-04| Relative Norm : 9.4093e-06
Iteration: 3
|Total Norm: 6.1694e-10 |Residual: 6.1693e-10 |A: 4.7748e-12| Relative Norm : 2.6967e-12
Arc-Length Step 334 :
Iteration: 0
|Total Norm: 2.2214e+02 |Residual: 2.2214e+02 |A: 5.2296e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.9528e-01 |Residual: 2.9493e-01 |A: 1.4225e-02| Relative Norm : 1.3292e-03
Iteration: 2
|Total Norm: 1.6026e-03 |Residual: 1.5999e-03 |A: 9.2669e-05| Relative Norm : 7.2143e-06
Iteration: 3
|Total Norm: 5.2768e-10 |Residual: 5.2768e-10 |A: 2.5011e-12| Relative Norm : 2.3755e-12
Arc-Length Step 335 :
Iteration: 0
|Total Norm: 2.1627e+02 |Residual: 2.1627e+02 |A: 3.4106e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.6184e-01 |Residual: 2.6160e-01 |A: 1.1263e-02| Relative Norm : 1.2107e-03
Iteration: 2
|Total Norm: 1.1984e-03 |Residual: 1.1964e-03 |A: 6.9863e-05| Relative Norm : 5.5411e-06
Iteration: 3
|Total Norm: 5.2376e-10 |Residual: 5.2376e-10 |A: 1.5916e-12| Relative Norm : 2.4218e-12
Arc-Length Step 336 :
Iteration: 0
|Total Norm: 2.1110e+02 |Residual: 2.1110e+02 |A: 3.1832e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.3352e-01 |Residual: 2.3335e-01 |A: 8.8434e-03| Relative Norm : 1.1062e-03
Iteration: 2
|Total Norm: 8.9799e-04 |Residual: 8.9644e-04 |A: 5.2638e-05| Relative Norm : 4.2539e-06
Iteration: 3
|Total Norm: 6.7212e-10 |Residual: 6.7212e-10 |A: 9.0949e-13| Relative Norm : 3.1839e-12
Arc-Length Step 337 :
Iteration: 0
|Total Norm: 2.0654e+02 |Residual: 2.0654e+02 |A: 3.8654e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 2.0946e-01 |Residual: 2.0935e-01 |A: 6.8676e-03| Relative Norm : 1.0141e-03
Iteration: 2
|Total Norm: 6.7252e-04 |Residual: 6.7136e-04 |A: 3.9499e-05| Relative Norm : 3.2561e-06
Iteration: 3
|Total Norm: 5.8503e-10 |Residual: 5.8503e-10 |A: 9.0949e-13| Relative Norm : 2.8325e-12
Arc-Length Step 338 :
Iteration: 0
|Total Norm: 2.0255e+02 |Residual: 2.0255e+02 |A: -6.8212e-13| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.8902e-01 |Residual: 1.8895e-01 |A: 5.2583e-03| Relative Norm : 9.3320e-04
Iteration: 2
|Total Norm: 5.0195e-04 |Residual: 5.0109e-04 |A: 2.9400e-05| Relative Norm : 2.4782e-06
Iteration: 3
|Total Norm: 6.3145e-10 |Residual: 6.3145e-10 |A: 0.0000e+00| Relative Norm : 3.1175e-12
Arc-Length Step 339 :
Iteration: 0
|Total Norm: 1.9907e+02 |Residual: 1.9907e+02 |A: 0.0000e+00| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.7169e-01 |Residual: 1.7164e-01 |A: 3.9555e-03| Relative Norm : 8.6247e-04
Iteration: 2
|Total Norm: 3.7210e-04 |Residual: 3.7147e-04 |A: 2.1594e-05| Relative Norm : 1.8692e-06
Iteration: 3
|Total Norm: 7.0605e-10 |Residual: 7.0605e-10 |A: 0.0000e+00| Relative Norm : 3.5468e-12
Arc-Length Step 340 :
Iteration: 0
|Total Norm: 1.9605e+02 |Residual: 1.9605e+02 |A: 0.0000e+00| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.5709e-01 |Residual: 1.5707e-01 |A: 2.9118e-03| Relative Norm : 8.0128e-04
Iteration: 2
|Total Norm: 2.7286e-04 |Residual: 2.7241e-04 |A: 1.5545e-05| Relative Norm : 1.3917e-06
Iteration: 3
|Total Norm: 6.2293e-10 |Residual: 6.2293e-10 |A: -2.2737e-13| Relative Norm : 3.1774e-12
Arc-Length Step 341 :
Iteration: 0
|Total Norm: 1.9348e+02 |Residual: 1.9348e+02 |A: -6.8212e-13| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.4496e-01 |Residual: 1.4495e-01 |A: 2.0900e-03| Relative Norm : 7.4923e-04
Iteration: 2
|Total Norm: 1.9689e-04 |Residual: 1.9659e-04 |A: 1.0865e-05| Relative Norm : 1.0176e-06
Iteration: 3
|Total Norm: 6.3638e-10 |Residual: 6.3638e-10 |A: -2.2737e-13| Relative Norm : 3.2891e-12
Arc-Length Step 342 :
Iteration: 0
|Total Norm: 1.9131e+02 |Residual: 1.9131e+02 |A: -9.0949e-13| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.3508e-01 |Residual: 1.3508e-01 |A: 1.4610e-03| Relative Norm : 7.0609e-04
Iteration: 2
|Total Norm: 1.3885e-04 |Residual: 1.3866e-04 |A: 7.2702e-06| Relative Norm : 7.2578e-07
Iteration: 3
|Total Norm: 6.6578e-10 |Residual: 6.6578e-10 |A: 0.0000e+00| Relative Norm : 3.4801e-12
Arc-Length Step 343 :
Iteration: 0
|Total Norm: 1.8953e+02 |Residual: 1.8953e+02 |A: -6.8212e-13| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.2732e-01 |Residual: 1.2731e-01 |A: 1.0024e-03| Relative Norm : 6.7177e-04
Iteration: 2
|Total Norm: 9.4809e-05 |Residual: 9.4699e-05 |A: 4.5559e-06| Relative Norm : 5.0024e-07
Iteration: 3
|Total Norm: 6.2348e-10 |Residual: 6.2348e-10 |A: 2.2737e-13| Relative Norm : 3.2896e-12
Arc-Length Step 344 :
Iteration: 0
|Total Norm: 1.8811e+02 |Residual: 1.8811e+02 |A: 1.1369e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.2156e-01 |Residual: 1.2156e-01 |A: 6.9684e-04| Relative Norm : 6.4624e-04
Iteration: 2
|Total Norm: 6.1857e-05 |Residual: 6.1803e-05 |A: 2.5753e-06| Relative Norm : 3.2884e-07
Iteration: 3
|Total Norm: 7.6448e-10 |Residual: 7.6448e-10 |A: 0.0000e+00| Relative Norm : 4.0641e-12
Arc-Length Step 345 :
Iteration: 0
|Total Norm: 1.8704e+02 |Residual: 1.8704e+02 |A: -4.5475e-13| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.1774e-01 |Residual: 1.1774e-01 |A: 5.3161e-04| Relative Norm : 6.2952e-04
Iteration: 2
|Total Norm: 3.7828e-05 |Residual: 3.7808e-05 |A: 1.2266e-06| Relative Norm : 2.0225e-07
Iteration: 3
|Total Norm: 8.9137e-10 |Residual: 8.9137e-10 |A: 0.0000e+00| Relative Norm : 4.7657e-12
Arc-Length Step 346 :
Iteration: 0
|Total Norm: 1.8631e+02 |Residual: 1.8631e+02 |A: 4.5475e-13| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.1579e-01 |Residual: 1.1579e-01 |A: 4.9779e-04| Relative Norm : 6.2153e-04
Iteration: 2
|Total Norm: 2.1089e-05 |Residual: 2.1084e-05 |A: 4.4424e-07| Relative Norm : 1.1319e-07
Iteration: 3
|Total Norm: 8.0101e-10 |Residual: 8.0101e-10 |A: 0.0000e+00| Relative Norm : 4.2994e-12
Arc-Length Step 347 :
Iteration: 0
|Total Norm: 1.8590e+02 |Residual: 1.8590e+02 |A: 0.0000e+00| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.1566e-01 |Residual: 1.1565e-01 |A: 5.8983e-04| Relative Norm : 6.2214e-04
Iteration: 2
|Total Norm: 1.0333e-05 |Residual: 1.0331e-05 |A: 1.9318e-07| Relative Norm : 5.5585e-08
Iteration: 3
|Total Norm: 8.9422e-10 |Residual: 8.9422e-10 |A: 0.0000e+00| Relative Norm : 4.8102e-12
Arc-Length Step 348 :
Iteration: 0
|Total Norm: 1.8582e+02 |Residual: 1.8582e+02 |A: -6.8212e-13| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.1727e-01 |Residual: 1.1726e-01 |A: 8.0522e-04| Relative Norm : 6.3108e-04
Iteration: 2
|Total Norm: 4.4839e-06 |Residual: 4.4596e-06 |A: 4.6600e-07| Relative Norm : 2.4131e-08
Iteration: 3
|Total Norm: 9.7260e-10 |Residual: 9.7260e-10 |A: 2.2737e-13| Relative Norm : 5.2342e-12
Arc-Length Step 349 :
Iteration: 0
|Total Norm: 1.8605e+02 |Residual: 1.8605e+02 |A: -1.1369e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.2056e-01 |Residual: 1.2056e-01 |A: 1.1443e-03| Relative Norm : 6.4800e-04
Iteration: 2
|Total Norm: 4.4400e-06 |Residual: 4.2509e-06 |A: 1.2819e-06| Relative Norm : 2.3864e-08
Iteration: 3
|Total Norm: 1.0006e-09 |Residual: 1.0006e-09 |A: -2.2737e-13| Relative Norm : 5.3780e-12
Arc-Length Step 350 :
Iteration: 0
|Total Norm: 1.8661e+02 |Residual: 1.8661e+02 |A: 6.8212e-13| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.2549e-01 |Residual: 1.2548e-01 |A: 1.6103e-03| Relative Norm : 6.7248e-04
Iteration: 2
|Total Norm: 1.0155e-05 |Residual: 9.7925e-06 |A: 2.6878e-06| Relative Norm : 5.4417e-08
Iteration: 3
|Total Norm: 8.5919e-10 |Residual: 8.5919e-10 |A: -2.2737e-13| Relative Norm : 4.6043e-12
Arc-Length Step 351 :
Iteration: 0
|Total Norm: 1.8748e+02 |Residual: 1.8748e+02 |A: 1.3642e-12| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.3201e-01 |Residual: 1.3199e-01 |A: 2.2090e-03| Relative Norm : 7.0412e-04
Iteration: 2
|Total Norm: 2.0057e-05 |Residual: 1.9483e-05 |A: 4.7612e-06| Relative Norm : 1.0698e-07
Iteration: 3
|Total Norm: 7.4673e-10 |Residual: 7.4673e-10 |A: 0.0000e+00| Relative Norm : 3.9829e-12
Arc-Length Step 352 :
Iteration: 0
|Total Norm: 1.8869e+02 |Residual: 1.8869e+02 |A: -4.5475e-13| Relative Norm : 1.0000e+00
Iteration: 1
|Total Norm: 1.4011e-01 |Residual: 1.4008e-01 |A: 2.9493e-03| Relative Norm : 7.4255e-04
Iteration: 2
|Total Norm: 3.4450e-05 |Residual: 3.3598e-05 |A: 7.6162e-06| Relative Norm : 1.8258e-07
Iteration: 3
|Total Norm: 1.0259e-09 |Residual: 1.0259e-09 |A: 0.0000e+00| Relative Norm : 5.4370e-12
Post Processing#
Here we plot the final deformed shape and the equilibrium path. To verify or solution, we also compare our solutions to ones found in literature.
Solutions are obtained from the paper: A simple extrapolated predictor for overcoming the starting and tracking issues in the arc-length method for nonlinear structural mechanics
1# Get dof coordinates:
2x_dofs = V.sub(0).sub(0).dofmap().dofs()
3y_dofs = V.sub(0).sub(1).dofmap().dofs()
4theta_dofs = V.sub(1).dofmap().dofs()
5dofs = V.tabulate_dof_coordinates()
6dof_coords = dofs.reshape((-1, 2))
7
8eps = 1e-5
9dof = []
10# Identify y-dof at the center of the arch for plotting later
11for ii in y_dofs:
12 if abs(dof_coords[ii,0]) <= eps:
13 force_dof = ii
1x_nodal_coord = dof_coords[x_dofs][:,0]
2y_nodal_coord = dof_coords[y_dofs][:,1]
3# Get nodal values
4
5# Plot displacement field
6disp_x = x_nodal_coord + disp[-1][x_dofs]
7disp_y = y_nodal_coord + disp[-1][y_dofs]
8
9plt.scatter(x_nodal_coord,y_nodal_coord)
10plt.scatter(disp_x, disp_y)
11
12plt.xlabel('x-coordinates')
13plt.ylabel('y-coordinates')
14plt.axis('equal')
15plt.show()
16
17print(x_nodal_coord.shape)
(51,)
1# Get displacment at force application
2force_disp = []
3for ii in range(len(disp)):
4 force_disp.append(disp[ii][force_dof])
5force_disp = -np.array(force_disp)
6
7# Normalize values
8plt.figure(figsize=(7,7))
9plt.plot(force_disp, lmbda, c= 'k', marker = '.')
10plt.ylabel('Normalized Load')
11plt.xlabel('Normalized Displacement')
Text(0.5, 0, 'Normalized Displacement')
1# get paper solution/
2
3import scipy.io
4paper_soln = scipy.io.loadmat('lit_soln/solution_180.mat')
1plt.figure(figsize=(7,7))
2plt.scatter(paper_soln['soln'][:,0],paper_soln['soln'][:,1], label = 'Paper implementation', facecolors = 'None', edgecolors = 'r')
3plt.plot(disp_x, disp_y, label = 'Our implementation')
4plt.plot(x_nodal_coord,y_nodal_coord,label = 'Undeformed')
5
6plt.xlabel('x-coordinates')
7plt.ylabel('y-coordinates')
8plt.title('Beam Deformation')
9plt.axis('equal')
10plt.legend()
11plt.show()
1# get paper equilibrium path
2paper_eq = np.loadtxt('lit_soln/path_180.dat')
1plt.figure(figsize=(7,7))
2plt.scatter(-paper_eq[:,2], paper_eq[:,0], label = 'Paper implementation', facecolors = 'None', edgecolors = 'r')
3
4plt.scatter(force_disp, lmbda, marker = '.', label = 'Our Implementation')
5plt.title('Equilibrium Path (180 degree arch 3D)')
6plt.ylabel('Load')
7plt.xlabel('Displacement')
Text(0.5, 0, 'Displacement')
Optional: Creating an animation from solution snapshots#
1from matplotlib import animation, rc
2
3plt.rcParams["animation.html"] = "jshtml"
4
5fig = plt.figure(figsize=(7,7))
6ax = fig.add_subplot(111)
7
8ax.set_xlim([-150,150])
9ax.set_ylim([-150,150])
10
11deformed, = ax.plot([], [], lw = 7, c = 'r', label = 'Deformed Configuration')
12init, = ax.plot(x_nodal_coord, y_nodal_coord, c='k', lw = 5, ls = ':', label = 'Initial Configuration')
13ax.legend(loc = 'lower right')
14
15def drawframe(n):
16 disp_x = x_nodal_coord + disp[n][x_dofs]
17 disp_y = y_nodal_coord + disp[n][y_dofs]
18
19 deformed.set_data(disp_x,disp_y)
20 return deformed,
21
22plt.close()
23# blit=True re-draws only the parts that have changed.
24anim = animation.FuncAnimation(fig, drawframe, frames=len(lmbda), interval=40, blit=True)
25
26anim
